Yoke Plate Insulator Strings Plate 100kN Strain Carrier 16mm
Yoke Plate Insulator Strings Plate 100kN Strain Carrier 16mm
Yoke Plate Insulator Strings Plate 100kN Strain Carrier 16mm
Yoke Plate Insulator Strings Plate 100kN Strain Carrier 16mm
Specifications
Brand Name :
HANYU
Model Number :
P-L-1040
Certification :
ISO9001
Place of Origin :
China
MOQ :
100pieces
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
100000pieces/month.
Delivery Time :
15-35days
Packaging Details :
case
Type :
Yoke Plate Insulator Strings Plate
Dimensions b :
16mm
Dimensions b1 :
16mm
Dimensions h :
70mm
Rated Failure Load :
100kn
Weight :
4.43kg
Description

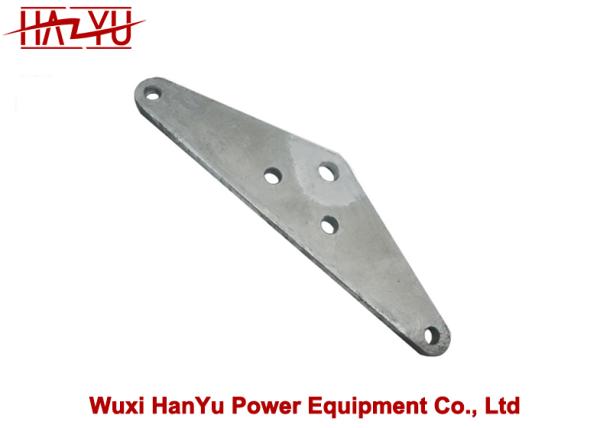

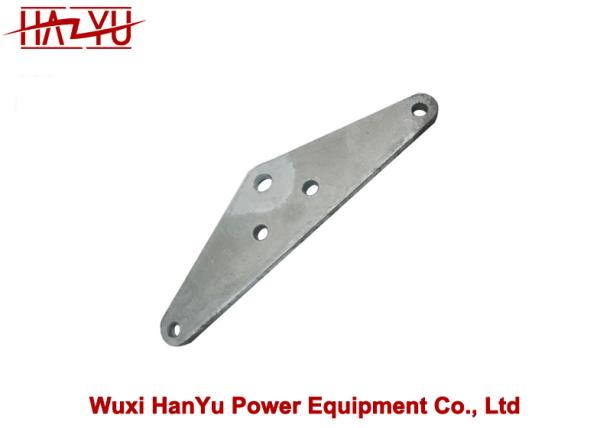

Powerline Tools Yoke Plate Insulator Strings Plate Strain Carrier

Yoke Plate is a connection fitting used for the parallel assembly of double insulator strings and multiple insulator strings.
Usage scenarios: Transmission line system, communication system
Technical features: It is cut from a steel plate and bears a mechanical load.
Product advantages:

  • The surface is smooth and free of burrs;
  • The yoke plate uses hot-dip galvanizing to prevent corrosion;
  • The mechanical strength of the yoke plate is high.

Catalog No.

Dimensions
(mm)

Rated Failure Load
(kN)

Weight
(kg)

bb1hΦ1Φ2L
P-L-104016167020184001004.43
P-L-124016167024184001204.66
P-L-1640181810026104001605.80
P-L-2140162610030204002006.90
P-L-2052162610030265202008.00
P-L-20551626200302455020011.80
P-L-2540163011033244002509.00
P-L-30401832110392640030010.00
P-L-42552438250453055042024.40
P-L-50403038110453340050014.80
P-L-60453042200513945060025.50
P-L-60503242250513950060023.30
