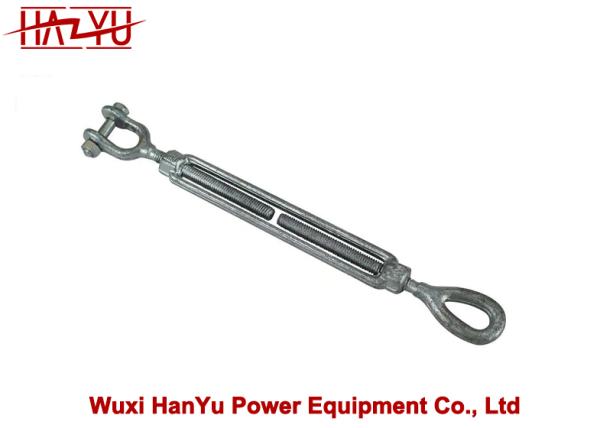

US Type Turnbuckle Forged Jaw Steel 3/8 1040lbs Capacity
US Type Turnbuckle Forged Jaw Steel 3/8 1040lbs Capacity
US Type Turnbuckle Forged Jaw Steel 3/8 1040lbs Capacity
US Type Turnbuckle Forged Jaw Steel 3/8 1040lbs Capacity
Specifications
Brand Name :
HANYU
Model Number :
P-US-T
Certification :
ISO9001
Place of Origin :
China
MOQ :
100pieces
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
100000pieces/month.
Delivery Time :
15-35days
Packaging Details :
CASE
Type :
US Type Turnbuckle
Rated Capacity :
1,040lbs
Take-up :
6"
Pin diameter min :
5/16"
Diameter :
3/8"
Thread count :
16
Description

Powerline Tools US Type Turnbuckle Forged Jaw Steel Plain Finish

  • Take up slack with a Crosby HG228 jaw/jaw Turnbuckles are manufactured with the end fittings quenched and tempered. The jaw allows connection to rigging hardware that can not be opened, an eye bolt for instance.
Product details
Model P-US-T
Units US Type Turnbuckle
Category

Turnbuckles

An internally threaded sleeve intended for assembly with a threaded stud, eye, hook or jaw at each end used for applying and regulating tension.
Overall length 11-7/8"
Subcategory

Forged jaw & eye

Jaw end fittings consist of a jaw, clevis pin, and cotter pin to attach to connecting components that cannot be opened and eye end fittings are used with connecting components that can be opened and attached to the eye.
Thread count

16
Finish

Plain

Unplated finish.
Domestically produced Yes
Material

Steel

A low carbon steel for general use.
Diameter 3/8"
Take-up 6"
Jaw opening width 1/2"
Eye inside diameter 51/64"
Eye outside diameter 1-17/32"
Jaw inside length 7/8"
Pin diameter min 5/16"
Rated Capacity

1,040lbs
  • Crosby products meet or exceed all requirements of ASME B30.26
  • Hot Dip galvanized steel
  • Used to apply tension to wire ropes such as guy lines, median barriers, architectural wire ropes or adjust the length of sling legs in multiple leg lifting applications.
  • The bodies are heat treated by normalizing, the finish is then hot dip galvanized for long term corrosion resistance and long service life.
  • Turnbuckles recommended for straight or in-line pull only
  • We don't know when or if this item will be back in stock.
  • Used for for Lifting, Holding And Tensioning the HG228 range meets or exceeds all requirements of ASME B30.26.Recommended for a straight or in-line pull only.

US Type Turnbuckle Forged Jaw Steel 3/8
