Powerline Tools OPGW Construction Self-Moving Line Change Traction Machine
Powerline Tools OPGW Construction Self-Moving Line Change Traction Machine
Powerline Tools OPGW Construction Self-Moving Line Change Traction Machine
Powerline Tools OPGW Construction Self-Moving Line Change Traction Machine
Specifications
Brand Name :
HANYU
Model Number :
BZZCS350
Certification :
ISO9001
Place of Origin :
China
MOQ :
10set
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
1000sets/month.
Delivery Time :
15-35days
Packaging Details :
Container
Type :
Self-Moving Line Change Traction Machine
Running speed (m/min) :
17
Block passed diameter range(mm) :
φ9-φ13
Maximum creeping angle (°) :
31
Weight (kg) :
46.5
Remote control linear distance(m) :
300~500
Description

Powerline Tools OPGW Construction Self-Moving Line Change Traction Machine

Description:

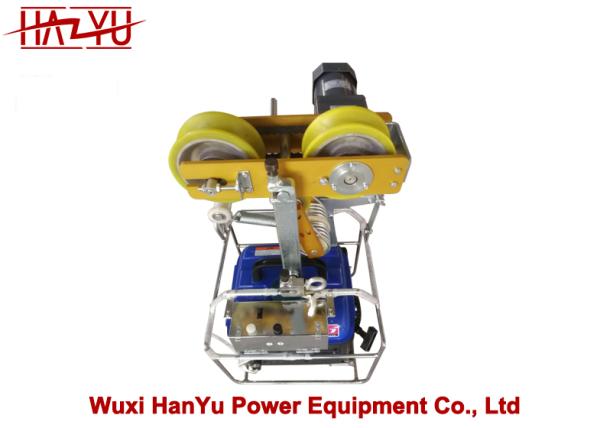

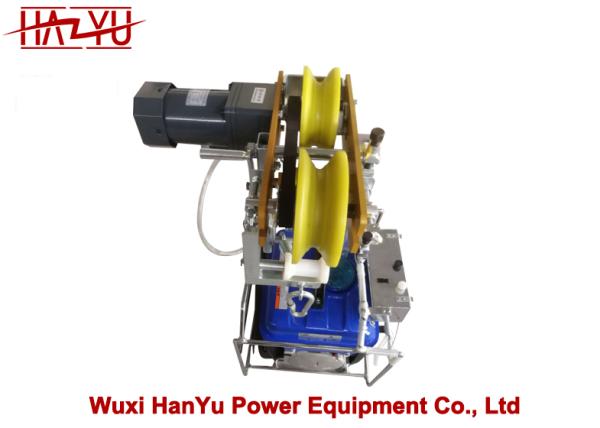

The self moving traction machine is used to deliver guide rope and double pulley rollers from one steel tower to another.
It is always used to spread the optical power ground wire abbreviated as OPGW. Also, it is able to replace the old conductor.
Model BZZCS350
Block passed diameter range(mm) φ9-φ13
Maximum creeping angle (°) 31
Gasoline engine YAMAHAET950
Driving dynamo type 100YYJ140-3(140W)
Remote control linear distance(m) 300~500
Dimension (mm) 422x480x758
Running speed (m/min) 17
Horizontal pull (N) 350
Weight (kg) 46.5

Remarks:

We have developed whole set of machines and tools for OPGW line installation.

Advantages:

1.Self driving by gasoline engine

2.Electric motor system.

3. Automatic brake system for emergency stop

4. Remote control system for controlling the machine on overhead line.

5.Special Mechanical system for preventing reverse driving of machine.

6.Easy operation
