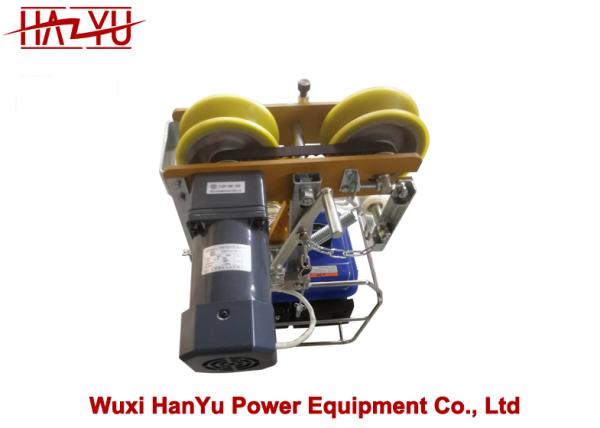

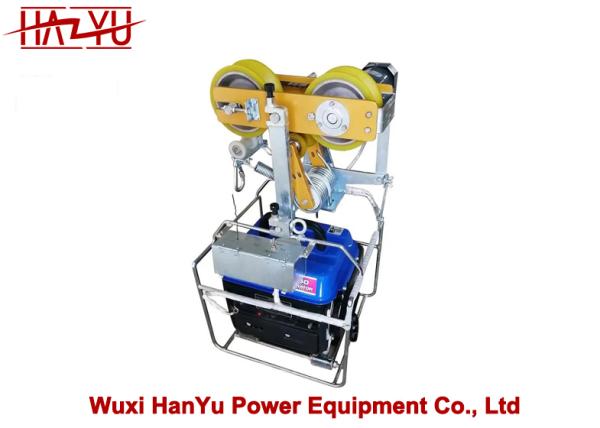

Powerline Tools BZZCS350 OPGW Construction Self-Moving Traction Machine
Powerline Tools BZZCS350 OPGW Construction Self-Moving Traction Machine
Powerline Tools BZZCS350 OPGW Construction Self-Moving Traction Machine
Powerline Tools BZZCS350 OPGW Construction Self-Moving Traction Machine
Specifications
Brand Name :
HANYU
Model Number :
BZZCS350
Certification :
ISO9001
Place of Origin :
China
MOQ :
10set
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
1000sets/month.
Delivery Time :
15-35days
Packaging Details :
Container
Type :
Self-Moving Traction Machine
Block passed diameter range(mm) :
φ9-φ13
Maximum creeping angle (°) :
31
Driving dynamo type :
Driving dynamo type
Remote control linear distance(m) :
300~500
Dimension (mm) :
422x480x758
Description

Powerline Tools BZZCS350 OPGW Construction Self-Moving Traction Machine

Model BZZCS350
Block passed diameter range(mm) φ9-φ13
Maximum creeping angle (°) 31
Gasoline engine YAMAHAET950
Driving dynamo type 100YYJ140-3(140W)
Remote control linear distance(m) 300~500
Dimension (mm) 422x480x758
Running speed (m/min) 17
Horizontal pull (N) 350
Weight (kg) 46.5

Description:

The self moving traction machine is used to deliver guide rope and double pulley rollers from one steel tower to another.

It is always used to spread the optical power ground wire abbreviated as OPGW. Also, it is able to replace the old conductor.

Advantages:

1.Self driving by gasoline engine

2.Electric motor system.

3. Automatic brake system for emergency stop

4. Remote control system for controlling the machine on overhead line.

5.Special Mechanical system for preventing reverse driving of machine.

6.Easy operation

Remarks:

We have developed whole set of machines and tools for OPGW line installation.
