Transmission Line Stringing Equipment Tension Stringing 30kN Hydraulic Tensioner
Transmission Line Stringing Equipment Tension Stringing 30kN Hydraulic Tensioner
Transmission Line Stringing Equipment Tension Stringing 30kN Hydraulic Tensioner
Transmission Line Stringing Equipment Tension Stringing 30kN Hydraulic Tensioner
Specifications
Brand Name :
HANYU
Model Number :
TY1x30D-1800
Certification :
ISO9001
Place of Origin :
China
MOQ :
1set
Price :
USD23,000.00-25,000.00/set
Payment Terms :
L/C, T/T
Supply Ability :
10sets/month.
Delivery Time :
15-35days
Packaging Details :
Container
Type :
Tension Stringing 30kN Hydraulic Tensioner
Max continuous tension :
30kN
Pull at max speed :
15kN
Speed at max tension :
2.5km/h
Total weight :
4600kg
Overall dimension (length*width*height) :
5000*2000*2600mm
Description

Transmission Line Stringing Equipment Tension Stringing 30kN Hydraulic Tensioner

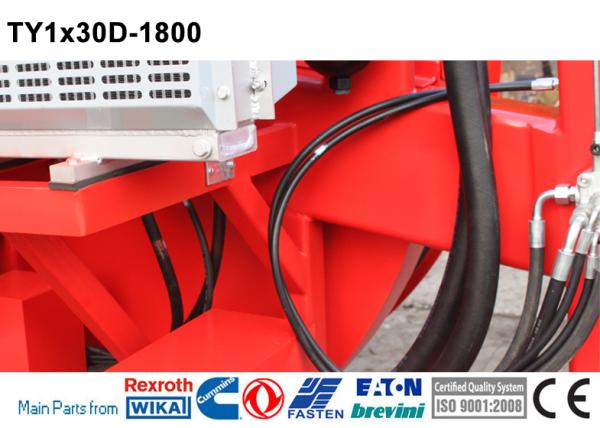

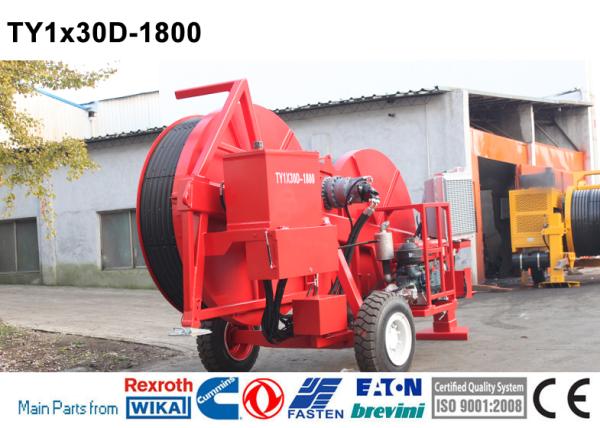

TY1x30D-1800 Hydraulic Tensioner
  • The machine is hydraulically controlled for the tensile force and complete with quality parts and components such as hydraulic break, high-performance finned radiator, hydraulic power unit, precision filtering unit to support the safe, high-quality and efficient performance.
  • The single-beam trailer chassis is also adopted, where lifting points are pre-set for anchoring and temporary anchoring, to achieve a portable compact integrity easy to be loaded, transported and transferred.
  • The hydraulic power unit provides the traction of conductors at both positive and negative directions.

Performance
  • Max continuous tension: 30kN
  • Max speed: 5km/h
  • Max reverse pulling force: 20kN
  • Speed at max tension: 2.5km/h
  • Pull at max speed: 15kN

Characteristics
  • Bull-wheel diameter: 1800mm
  • Groove number: 5
  • Max conductor diameter: 40mm
  • Overall dimension (length*width*height): 5000*2000*2600mm
  • Total weight: 4600kg

Main configuration
  • Engine: Changchai China
  • Main motor: French Leduc
  • Hydraulic valve: German Rexroth
  • Hydraulic pump: German Concentric
  • Hydraulic meter: German WIKA
  • Speed reducer: German Rexroth / Italy Bonfiglioli

Additional Devices
  • Air brake system for the trailer (extra charge)
  • Swivel guide rope roller
  • Trailer for towing at max speed of 15 km/h
  • Hydraulic conductor clamps for drum change operations (extra charge)

Configuration
  • Hydraulic dynamometers
  • Grounding connection point
  • Hydraulic oil cooling system

Hydraulic Transmission
  • The machine is provided with tension presetting system
  • The machine can realize step less speed

Engine
  • Electrical system 12V
  • Single cylinder diesel engine 18kw(25hp)

Transmission Line Stringing Equipment Tension Stringing 30kN Hydraulic Tensioner
