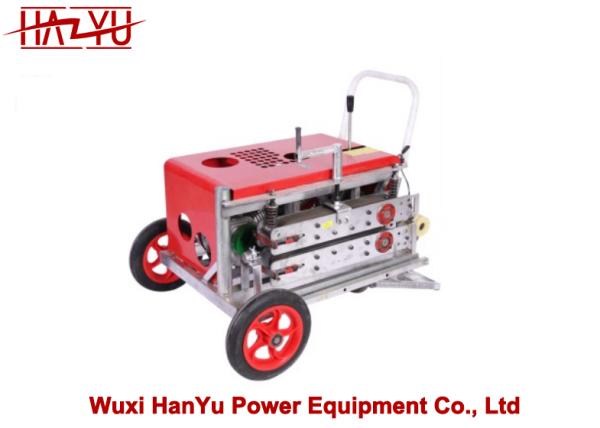

Optical Cable Pulling Machine 2KN Traction Force 50mm Diameter
Optical Cable Pulling Machine 2KN Traction Force 50mm Diameter
Optical Cable Pulling Machine 2KN Traction Force 50mm Diameter
Optical Cable Pulling Machine 2KN Traction Force 50mm Diameter
Specifications
Brand Name :
HANYU
Model Number :
BGLQYS
Certification :
ISO9001
Place of Origin :
China
MOQ :
1set
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
1000sets/month.
Delivery Time :
15-35days
Packaging Details :
case
Traction force (KN) :
≥2KN
Maximum diameter(mm) :
50mm
Traction speed (m/min) :
30-80 m/min adjustable
Maximum power of gasoline engine (KW) :
4.78KW
Start type :
Hand rope start
Type :
Optical Cable Pulling Machine
Description

Transmission Line Stringing Equipment Optical Cable Pulling Machine

Model BGLQYS BGLQYD
Start type Hand rope start Electric start
Maximum diameter 50mm
Traction force ≥2KN
Traction speed 30-80 m/min adjustable
Maximum power of gasoline engine 4.78KW

Uses
  • The optical cable traction machine is suitable for 4-288 core optical cable, 7*2.6mm steel stranded wire, 4*35mm2 cable.
  • It is used for long distance transmission of large section cable, especially suitable for long distance laying of various types of cables such as tunnel, pipe row, directly buried, etc.
Introduction

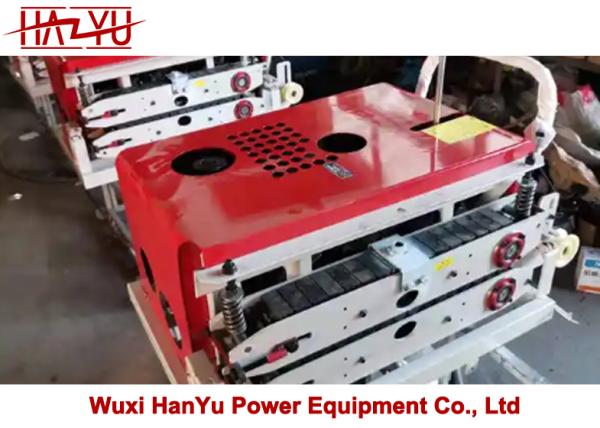

  • This machine is mainly composed of three parts: engine, gearbox and transmission device. The jaws of the transmission device are opened and closed up and down to make way for the cables to be effectively retracted and released freely. The traction machine uses the electric motor as the power source. The main shaft gear chain is driven by the gearbox. The chain engages the transmission device and drives the transmission belt to achieve linear motion. The machine is also equipped with a support rod to support the reaction force of the cable during machine operation and maintain the transmission line. The machine does not move while the cable is being cabled.
Advantage
  • Optical cable traction equipment can save artificial 2 people, tensile force is equivalent to 4-5 adult tensile force, can push threader, can pull optical cable, can be overhead, can be buried construction operation, does not hurt the cable.It can reduce construction cost and improve construction efficiency.
Packing details
  • Standard export wooden case packing for Optical cable tractor
