Transmission Line Stringing Equipment 2x70KN Hydraulic Wheel Tensioner
Transmission Line Stringing Equipment 2x70KN Hydraulic Wheel Tensioner
Transmission Line Stringing Equipment 2x70KN Hydraulic Wheel Tensioner
Transmission Line Stringing Equipment 2x70KN Hydraulic Wheel Tensioner
Specifications
Brand Name :
HANYU
Model Number :
TY2x70IV
Certification :
ISO9001
Place of Origin :
China
MOQ :
1set
Price :
USD94,000-97,000/set
Payment Terms :
L/C, T/T
Supply Ability :
10Sets/Month
Delivery Time :
15-35days
Packaging Details :
Container
Type :
Hydraulic Wheel Tensioner
Bull-wheel diameter :
1500mm
Groove number :
2x8
Max intermittent tension :
2x70/1x140kN
Max continuous tension :
2x65/1x130kN
Max reverse pulling speed :
5km/h
Description

Transmission Line Stringing Equipment 2x70KN Hydraulic Wheel Tensioner

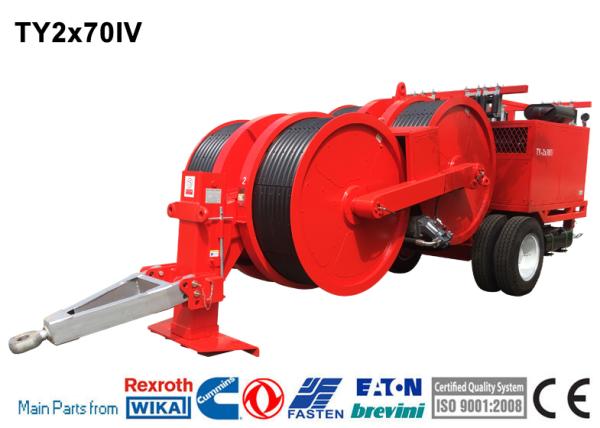

TY2x70IV Hydraulic Tensioner

The machine allows for the tension stringing of four-bundle conductor of 630mm2 and below in mountainous and hilly areas, of twin-bundle conductor of 720mm2 and below in flat lands, and of conductor 720mm2 in various terrains; besides, it can be used for tension stringing of OPGW or ADSS optical cable and 500kV haulage rope in various terrains

Characteristics

Bull-wheel diameter: 1500mm

Max conductor diameter: 40mm

Groove number: 2x8

Total weight: 12000kg

Overall dimension (length*width*height):5500*2280*2700mm

Performance

Max intermittent tension: 2x70/1x140kN

Max continuous tension: 2x65/1x130kN

Speed at max tension: 2.5km/h

Max speed: 5km/h

Pull at max speed: 2x25/1x50kN

Max reverse pulling force: 2*60kN/1*120kN

Max reverse pulling speed: 5km/h

Configuration

2 negative self-acting hydraulic brakes

2 hydraulic dynamometers

Hydraulic oil cooling system

2 digital meter and speed counters

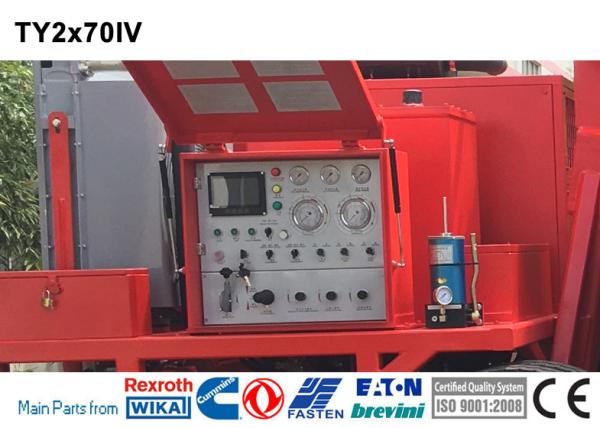

Control instruments for hydraulic system and diesel engine

Hydraulic front stabilizer

Hydraulic power pack to control up to 4 separate drum stands with hydraulic motor

Grounding connection point

Additional Devices

Lighting system for the trailer

4 hydraulic rope/conductor clamp (extra charge)

Swivel guide rope roller

Air brake system for the trailer (extra charge)

Digital Speed and meter counter

Hydraulic Transmission

The machine can realize step less speed.

The machine is provided with tension presetting system.

Main configuration

Engine: Cummins

Hydraulic pump: German Rexroth/Dnish Danfoss

Main motor:German Rexroth/French Leduc

Speed reducer: German Rexroth / Italy Bonfiglioli

Main hydraulic valves: USA Sun / Italy ATOS

Engine

Diesel: 77kw(103hp)

Cooling system: water

Electrical system: 24V
