1x120KN Cable Tension Machine Electrical Hydraulic Cable Laying Tensioner
1x120KN Cable Tension Machine Electrical Hydraulic Cable Laying Tensioner
1x120KN Cable Tension Machine Electrical Hydraulic Cable Laying Tensioner
1x120KN Cable Tension Machine Electrical Hydraulic Cable Laying Tensioner
Specifications
Brand Name :
HANYU
Model Number :
TY1X120III
Certification :
ISO9001
Place of Origin :
China
MOQ :
1set
Price :
USD74,500.00-79,000.00/Set
Payment Terms :
L/C, T/T
Supply Ability :
10Sets/Month
Delivery Time :
15-35days
Packaging Details :
Container
Type :
Hydraulic Cable Laying Tensioner
Max continuous tension :
1x120kN
Max intermittent tension :
1x130kN
Pull at max speed :
1x50kN
Diesel :
77kw(103hp)
Bull-wheel diameter :
1500mm
Description

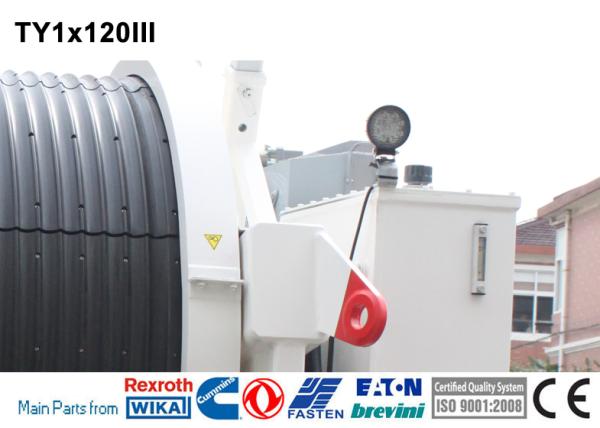

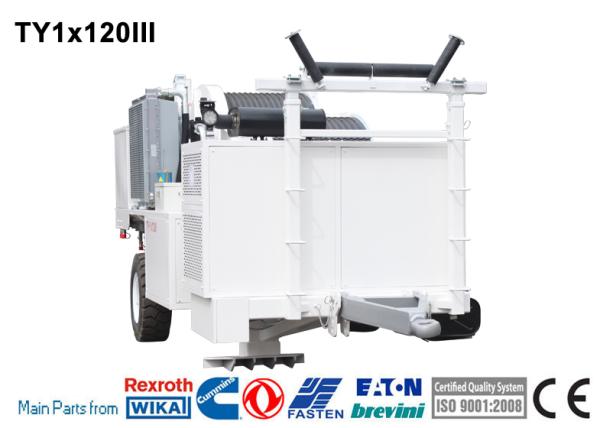

1x120KN Cable Tension Machine Electrical Hydraulic Cable Laying Tensioner

TY1X120III

Hydraulic Tensioner
  • The machine allows for the tension stringing of triple-bundle conductor of 630mm2 and below in mountainous and hilly areas, of triple-bundle conductor of 720mm2 and below in flat lands, and of conductor 720mm2 in various terrains;
  • Besides, it can be used for tension stringing of OPGW or ADSS optical cable and 500kV haulage rope in various terrains

Characteristics Max conductor diameter 40mm
Total weight 8500kg
Groove number 12
Bull-wheel diameter 1500mm
Overall dimension (length*width*height) 5200×2300×2700mm

Performance Max intermittent tension 1x130kN
Max continuous tension 1x120kN
Max speed 5km/h
Speed at max tension 2.5km/h
Max reverse pulling force 1x90kN
Pull at max speed 1x50kN

Engine Diesel 77kw(103hp)
Cooling system water
Electrical system 24V

Main configuration Hydraulic pump German Rexroth/Dnish Danfoss
Speed reducer German Rexroth / Italy Bonfiglioli
Main motor German Rexroth/French Leduc
Engine Cummins
Main hydraulic valves USA Sun / Italy ATOS

Configuration Digital speed meters
Hydraulic dynamometers
Hydraulic oil cooling system
Hydraulic front stabilizer
Grounding connection point
Hydraulic power pack to control up to 3 separated drum stands with hydraulic motor.
Control instruments for hydraulic system and diesel engine
Digital meter counters

Additional Devices 3 hydraulic conductor clamps for drum change operations (extra charge)
Lighting system for the trailer
Digital speed and meter counter
Air brake system for the trailer(extra charge)

Hydraulic Transmission

The machine can realize step less speed.
The machine is provided with tension presetting system.
