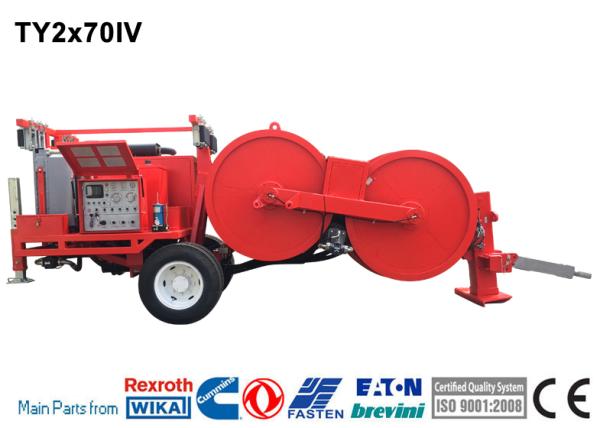

2x70/1x140kN Hydraulic Wire Tensioner/Cable Pulling Hydraulic Tensioner
2x70/1x140kN Hydraulic Wire Tensioner/Cable Pulling Hydraulic Tensioner
2x70/1x140kN Hydraulic Wire Tensioner/Cable Pulling Hydraulic Tensioner
2x70/1x140kN Hydraulic Wire Tensioner/Cable Pulling Hydraulic Tensioner
Specifications
Brand Name :
HANYU
Model Number :
TY2x70IV
Certification :
ISO9001
Place of Origin :
China
MOQ :
1set
Price :
USD94,000-97,000/set
Payment Terms :
L/C, T/T
Supply Ability :
10Sets/Month
Delivery Time :
15-35days
Packaging Details :
Container
Type :
Hydraulic Cable Wire Tensioner
Pull at max speed :
2x25/1x50kN
Max intermittent tension :
2x70/1x140kN
Hydraulic Wire Tensioner :
2*60kN/1*120kN
Bull-wheel diameter :
1500mm
Max conductor diameter :
40mm
Description

2x70/1x140kN Hydraulic Wire Tensioner/Cable Pulling Hydraulic Tensioner

Performance

  • Max intermittent tension: 2x70/1x140kN
  • Max continuous tension: 2x65/1x130kN
  • Speed at max tension: 2.5km/h
  • Max speed: 5km/h
  • Pull at max speed: 2x25/1x50kN
  • Max reverse pulling force: 2*60kN/1*120kN
  • Max reverse pulling speed: 5km/h

Main configuration

  • Engine: Cummins
  • Hydraulic pump: German Rexroth/Dnish Danfoss
  • Main motor:German Rexroth/French Leduc
  • Speed reducer: German Rexroth / Italy Bonfiglioli
  • Main hydraulic valves: USA Sun / Italy ATOS

Engine

  • Diesel: 77kw(103hp)
  • Cooling system: water
  • Electrical system: 24V

Characteristics

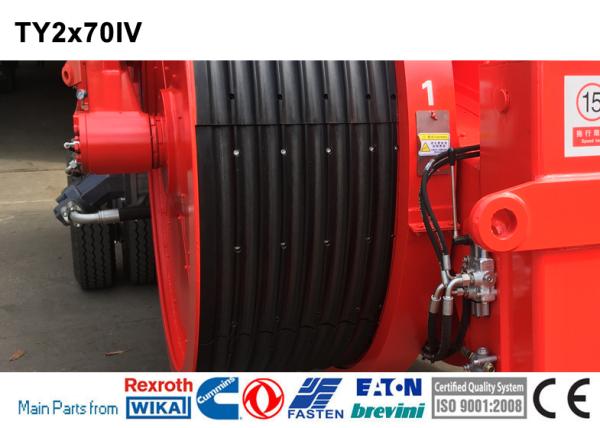

  • Bull-wheel diameter: 1500mm
  • Max conductor diameter: 40mm
  • Groove number: 2x8
  • Total weight: 12000kg
  • Overall dimension (length*width*height):
  • 5500*2280*2700mm

Hydraulic Transmission

  • The machine can realize step less speed.
  • The machine is provided with tension presetting system.

Configuration

  • 2 negative self-acting hydraulic brakes
  • 2 hydraulic dynamometers
  • Hydraulic oil cooling system
  • 2 digital meter and speed counters
  • Control instruments for hydraulic system and diesel engine
  • Hydraulic front stabilizer
  • Hydraulic power pack to control up to 4 separate drum stands with hydraulic motor
  • Grounding connection point

Additional Devices

  • Lighting system for the trailer
  • 4 hydraulic rope/conductor clamp (extra charge)
  • Swivel guide rope roller
  • Air brake system for the trailer (extra charge)
  • Digital Speed and meter counter
