Conductor Stringing Equipment Hydraulic Cable Tensioner Machine
Conductor Stringing Equipment Hydraulic Cable Tensioner Machine
Conductor Stringing Equipment Hydraulic Cable Tensioner Machine
Conductor Stringing Equipment Hydraulic Cable Tensioner Machine
Specifications
Brand Name :
HANYU
Model Number :
TY2x70IV
Certification :
ISO9001
Place of Origin :
China
MOQ :
1set
Price :
USD94,000-97,000/set
Payment Terms :
L/C, T/T
Supply Ability :
10Sets/Month
Delivery Time :
15-35days
Packaging Details :
Container
Overall dimension (length*width*height) :
4700*2300*2700mm
Speed at max tension :
2.5km/h
Max intermittent tension :
2x70/1x140kN
Max continuous tension :
2x65/1x130kN
Groove number :
2x8
Type :
Hydraulic Cable Tensioner Machine
Description

Conductor Stringing Equipment Hydraulic Cable Tensioner Machine

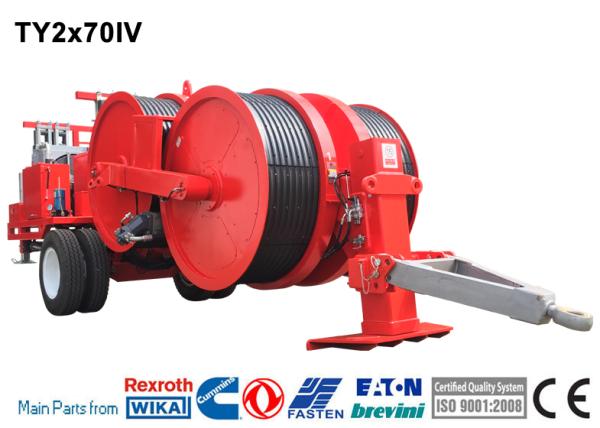

TY2x70IV Hydraulic Tensioner
  • The machine allows for the tension stringing of four-bundle conductor of 630mm2 and below in mountainous and hilly areas, of twin-bundle conductor of 720mm2 and below in flat lands, and of conductor 720mm2 in various terrains;
  • Besides, it can be used for tension stringing of OPGW or ADSS optical cable and 500kV haulage rope in various terrains
Performance
  1. Max intermittent tension: 2x70/1x140kN
  2. Max continuous tension: 2x65/1x130kN
  3. Max reverse pulling force: 2*60kN/1*120kN
  4. Max speed: 5km/h
  5. Max reverse pulling speed: 5km/h
  6. Speed at max tension: 2.5km/h
  7. Pull at max speed: 2x25/1x50kN
Characteristics
  1. Max conductor diameter: 40mm
  2. Bull-wheel diameter: 1500mm
  3. Groove number: 2x8
  4. Overall dimension (length*width*height):5500*2280*2700mm
  5. Total weight: 12000kg
Engine
  1. Diesel: 77kw(103hp)
  2. Electrical system: 24V
  3. Cooling system: water
Main configuration
  1. Speed reducer: German Rexroth / Italy Bonfiglioli
  2. Hydraulic pump: German Rexroth/Dnish Danfoss
  3. Main hydraulic valves: USA Sun / Italy ATOS
  4. Engine: Cummins
  5. Main motor:German Rexroth/French Leduc
Additional Devices
  • Air brake system for the trailer (extra charge)
  • Digital Speed and meter counter
  • Lighting system for the trailer
  • Swivel guide rope roller
  • 4 hydraulic rope/conductor clamp (extra charge)
Hydraulic Transmission
  • The machine can realize step less speed.
  • The machine is provided with tension presetting system.
Configuration
  • 2 negative self-acting hydraulic brakes
  • 2 digital meter and speed counters
  • Grounding connection point
  • Hydraulic front stabilizer
  • 2 hydraulic dynamometers
  • Hydraulic oil cooling system

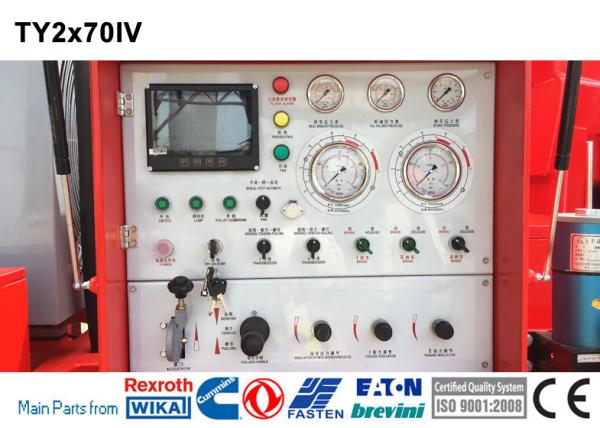

  • Control instruments for hydraulic system and diesel engine
  • Hydraulic power pack to control up to 4 separate drum stands with hydraulic motor
