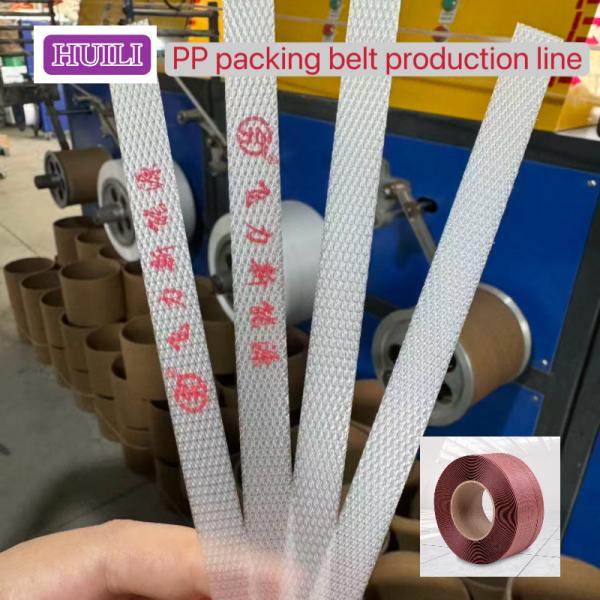

PP Strap Making Machine 5mm Single/Twin Screw PP Strap Production Line with PLC Control System

DESCRIPTION OF PP STRAP MAKING MACHINE

PP Strap Making Machine

PP Strap Making Machine/PP strapping production equipment, also known as PP strapping production line, is a process that uses polypropylene (PP) plastic granules as the main raw material to produce PP strapping of various specifications through processes such as melting, extrusion, stretching, shaping, embossing, and winding.

FEATURES:

1. Raw materials------PP strapping equipment can produce plastic raw materials: recycled materials or new materials to produce strapping;

2. Screw------The equipment adopts high-precision high-quality screws, adopts well-known brands, and has unique parameter design. It has the advantages of large extrusion volume, good plasticization, high hardness and wear resistance; equipped with a quantitative extrusion system, the width and thickness of the produced belts are the same, the error range is small, and it meets the national strapping acceptance standards;

3. Oven----Constant temperature intelligent oven, with multiple heating tubes inside, uses electricity to generate heat energy, reaches the set temperature, and automatically stops heating, with low power consumption and less loss.;

4. .Winding machine----can be matched with automatic winding machine (automatic roll changing, automatic tape cutting, automatic stop), servo motor control, no manual operation required

Raw Materials------

100% PP Polypropylene Granules

CORE COMPONENTS

1. Automatic Feeding System

Function: Automatically and evenly feeds PP main material, recycled material, and auxiliary raw materials such as masterbatch into the extruder hopper via a vacuum pump or screw. This ensures uniform mixing of raw materials and reduces manual labor intensity.

2. Extruder System

Composition: Includes barrel, screw, heating coil, cooling fan, and drive motor.

Function: Through electric heating and the rotating shearing action of the screw, solid plastic granules are melted and plasticized into a uniform melt, which is then extruded through the die into a strip-shaped preform. The screw's length-to-diameter ratio and structural design are crucial to product quality.

3. Die (Die Head)

Function: Determines the width and thickness of the packing tape. A coat hanger-type die head is typically used to ensure uniform pressure during melt flow, resulting in a strip preform with consistent thickness and width.

EQUIPMENT HIGHLIGHTS:

* **High Automation:** PLC control system allows adjustment of parameters such as temperature, stretch ratio, and winding tension.
* **Energy-Saving Design:** Utilizes a PLC touchscreen, high-speed motor, and efficient heating system to reduce energy consumption.
* **Flexibility:** Allows for the production of different specifications of strapping by changing molds; width: 5-19mm.
* **Environmentally Friendly Options:** Supports 100% recycled material production, reducing raw material costs and saving expenses.

ABOUT AFTER-SALES

We provide comprehensive technical support and service for our PP Strap Making Machine. Our team of experienced technicians can provide a variety of services, including:

Pre-sales:

1.Layout plan of PP belt making machine.

2.Analysis of the cost of PP tape making machine.

3.Raw materials that can be used for PP tape making machine.

After-sales service:

1.Water and electricity circuits of PP belt making machine, circuit drawings, etc.

2.Installation, commissioning and training of PP belt making machine.

3.Maintenance service of PP belt making machine.

4.Regular maintenance and repair

5.Troubleshooting and diagnosis

6.Software updates and upgrades

7.Spare parts and accessories

8.Training and technical advice

FAQ:

Q:What is the voltage of PP Strap Making Machine?
A:380V/50HZ, we support customization
Q:Can the PP Strap Making Machine be customized according to the factory length?
A:Yes, we can customize the length according to the customer's factory size.
Q:Where is the PP Strap Making Machine produced?
A:We are from China.
Q:Can PP Strap Making Machine provide after-sales service?
A:Yes, we have professional after-sales engineers who provide 24-hour online guidance.
Q:Is the quality of PP Strap Making Machine stable?
A:We have 30 years of manufacturing experience, and have their own PP Strap Making Machine plant, equipment quality is stable, the process is worth choosing.
Q:Does PP Strap Making Machine support customization?
A:We are a manufacturing plant that can customize model size, extrusion capacity, voltage and so on according to customer requirements.
