High Speed ​​5-19mm PP Strap Belt Extrusion Machine PP Strap Making Machine PLC control system

DRODUCT DESCRIPTION OF PP STRAP MAKING MACHINE:

PP Strap Making Machine

The PP Strap Making Machine​ is a high-end extrusion equipment with a dedicated screw for the extruder. It has uniform plasticization, consistent flow channels for the embryos, more complete shrinkage and shaping, more stable products, and more accurate dimensions

FEATURES:

1. Extruder

Function: Heats and melts PP raw material (granular, with optional color masterbatch, fillers, etc.) to plasticize it, and continuously extrudes the melt through a rotating screw.

Screw: Screw diameter (selected according to capacity requirements, commonly 30mm), length-to-diameter ratio (generally 25:1-30:1 to ensure full plasticization of the raw material), heating power (segmented temperature control to adapt to the raw material's melt profile).

2. Die (Extrusion Die)

Function: Extrudes the melt conveyed by the extruder through a die of a specific shape (usually a flat slit) to form a preliminary strip-shaped billet (thickness and width must match subsequent processes).

Features: The die gap is finely adjustable to ensure uniform billet thickness; the internal flow channels are smooth, reducing melt resistance and preventing raw material degradation.

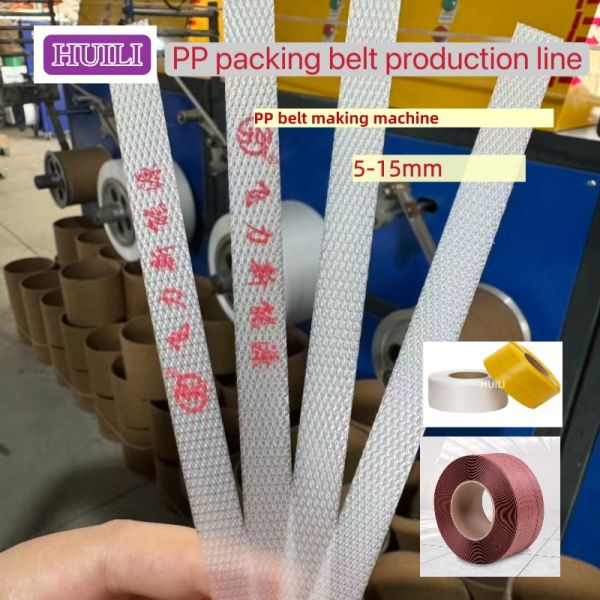

PP strapping band width: 5-19mm, thickness: 0.3-1.2mm..

pp strap manufacturing machine

pp strapping roll manufacturing machine

pp strapping band making machine

pp strap production line

pp strapping roll making machine

pet strap line

4 straps -PP strapping equipment parameters

MAIN COMPONENTS

The PP strapping production line is mainly composed of the following parts:

Feeder---- transfers PP polypropylene raw materials to the machine barrel.

Extruder------ used for melting and extrusion of plastics.

Die head-----controls the molding of the extruded plastic strip.

Cooling water tank----- cools the extruded plastic strip.

Stretching oven------- ensures the stretching ratio of the strip and more uniform plastic molding.

Tractor----- stretches the formed plastic.

Forming oven------ further ensures the stability of the shape of the plastic.

Winding machine------ winds the formed plastic strapping tape into rolls and puts it into storage.

PLC control system------- controls the entire machine, specification debugging, and parameter ratio setting.

FAQ:

Q:What is the voltage of PP Strap Making Machine?
A:380V/50HZ, we support customization
Q:What is the length of the PP strapping band?
A: L:36 M.
Q:Where is the PP Strap Making Machine?
A:We are from China.
Q:Can PP Strap Making Machine provide after-sales service?
A:Yes, we have professional after-sales engineers who provide 24-hour online guidance.
Q:Is the quality of PP Strap Making Machine?
A:We have 30 years of manufacturing experience, and have their own PP Strap Making Machine plant, equipment quality is stable, the process is worth choosing.
Q:Does PP Strap Making Machine customization?
A:We are a manufacturing plant that can customize model size, extrusion capacity, voltage and so on according to customer requirements.

Q:What does the wrapping machine part of the PP Strap Making Machine look like?

A:Equipped with automatic wrapping machine/semi-automatic wrapping machine.
