Full Bridge Resistant Strain Gauge with Solder Points

Model: EB-A series

Product Description:

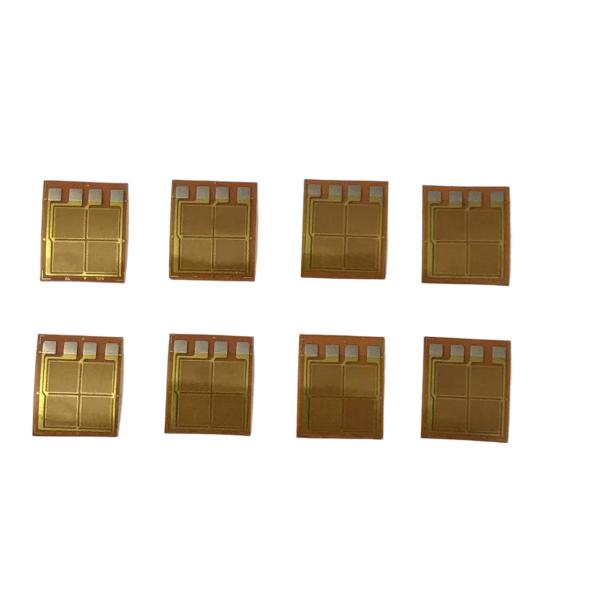

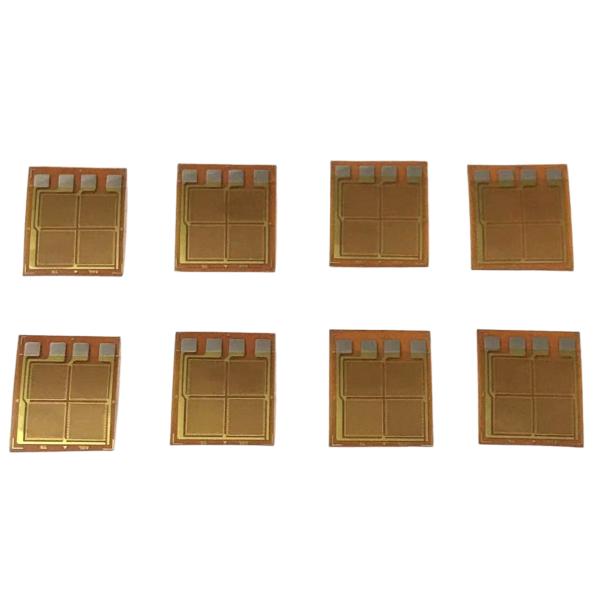

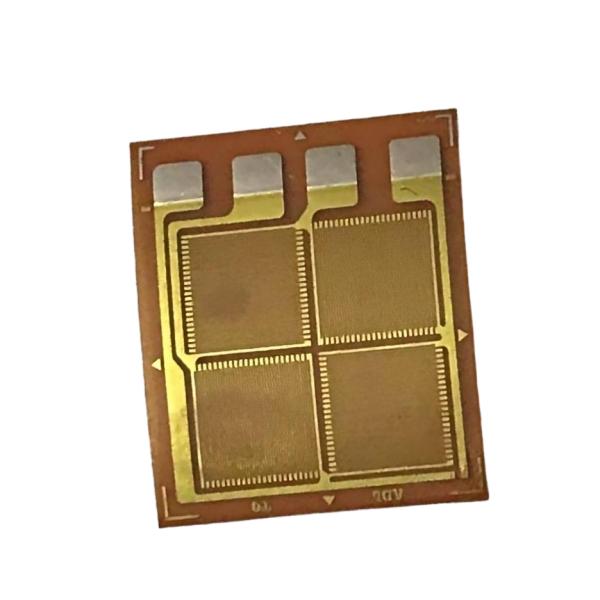

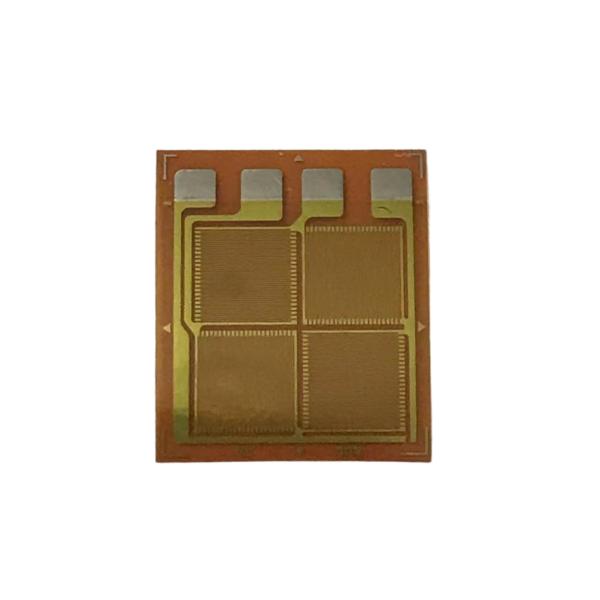

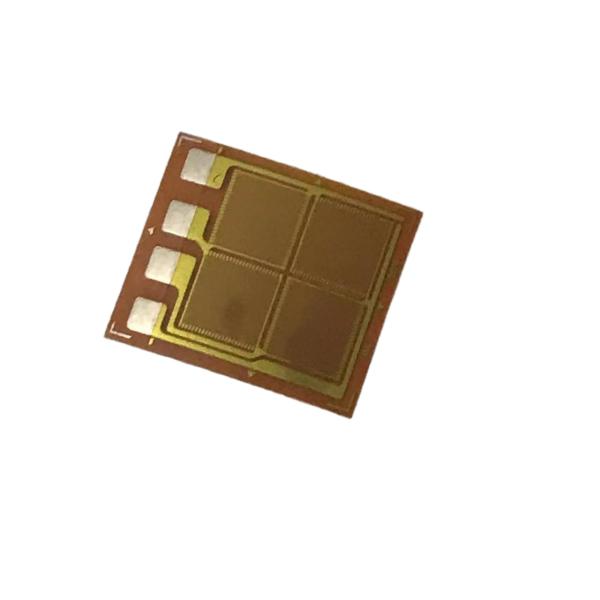

A full-bridge strain gauge is a high-performance sensor configuration that uses four active strain gauges wired into a Wheatstone bridge circuit All four gauges are bonded to the test object, which maximizes measurement sensitivity and provides superior compensation for thermal effects and extraneous loads compared to quarter- and half-bridge setups.

Features:

  • Product Name: Foil Strain Gauge
  • Grid number: 4
  • Hysteresis: ±0.05% Full Scale
  • Material: Steel or Alloy Aluminum
  • Measurement Range: 0-1000 Microstrain
  • Service: Custom design on carrier size, grid dimension
  • Carrier Material: Imported Phenolic Aldehyde/Polyimide/Epoxy
  • Measuring Material: Foil(nickel copper alloy, Constantan or Karma)
  • Resistance: 350,500,1000 Ohm
  • Operational temperature －20～＋80℃, Temperature compensation range ＋10～＋80℃
  • Each package 40 pcs, can be soldered copper wire, good performance
  • Three (3) to Five (5) solder points

Dimension:

Model Measuring Grid Size (mm) Carrier Size (mm)
BF350-3EB-A 2.25×2.65 9.2×7.7
ZF1000-3EB-A 2.25×2.65 9.2×7.7

Note: Other models and sizes are available according to customer request

Full Bridge Resistant Strain Gauge with Solder Points

Customization: carrier size, grid dimension, resistance
