Specifications
Brand Name :
Juniper
Place of Origin :
CHINA
Packaging Details :
Carton packaging
Price :
Negotiable
Model Number :
EX4600
Supply Ability :
200pcs
MOQ :
1pcs
Delivery Time :
5-7 work days
Description

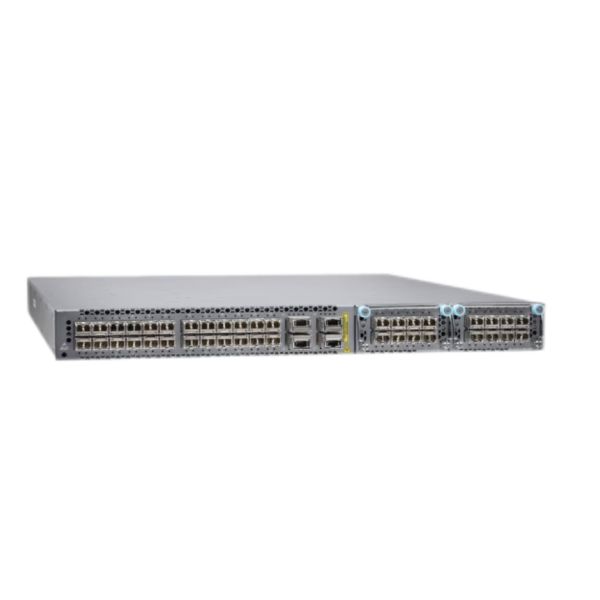

Juniper EX4600 Ethernet Switch – Key Specifications

The Juniper EX4600 is a compact, high-performance 1U fixed-configuration switch for campus distribution and aggregation layers. It delivers high-density 1/10GbE access ports, 40GbE uplinks, Virtual Ch stacking, and EVPN-VXLAN fabric support .

Key Features

  • 1U fixed form factor for distribution/aggregation layers

  • 24 x 1/10GbE SFP/SFP+ access ports

  • 4 x 40GbE QSFP+ fixed uplink ports (breakout capable to 4x10GbE each)

  • 2 expansion slots for optional modules: 8x10GbE SFP+ or 4x40GbE QSFP+

  • Maximum port density: 72 x 10GbE or 12 x 40GbE (with expansion modules and breakout)

  • Virtual Chassis: stack up to 10 switches (mixed with EX4300), up to 1.04 Tbps backplane

  • EVPN-VXLAN support for campus fabric deployments

  • 12 hardware QoS queues per port (8 unicast, 4 multicast)

  • Redundant, hot-swappable power supplies and variable-speed fans

  • Juniper Mist Wired Assurance (cloud management, ZTP, AI automation)

Product Specifications Table

Specification Detail
System Capacity 1.44 Tbps bidirectional
Switching Capacity 720 Gbps unidirectional
Throughput 1,071 Mpps (wire speed, 64-byte packets)
Form Factor 1 RU
Fixed Access Ports 24 x 1/10GbE SFP/SFP+
Fixed Uplink Ports 4 x 40GbE QSFP+
Expansion Slots 2 (8x10GbE or 4x40GbE modules)
Max 10GbE Ports 72
Max 40GbE Ports 12
Virtual Chassis Up to 10 switches (1.04 Tbps backplane)
QoS Queues per Port 12 (8 unicast, 4 multicast)
MAC Addresses 288,000
IPv4 Unicast Routes 128,000
IPv6 Unicast Routes 64,000
VLANs 4,096
ARP Entries 48,000
Jumbo Frames 9,216 bytes
Dimensions (HxWxD) 1.72 x 17.36 x 20.48 in (4.37 x 44.09 x 52.02 cm)
Weight (fully loaded) 21.7 lb (9.84 kg)
Operating Temp 32° to 104° F (0° to 40° C)

Expansion Module Options

Module Description
EX4600-EM-8XFP 8 x 1/10GbE SFP/SFP+ ports
EX4600-EM-4QSFP 4 x 40GbE QSFP+ ports

Software & Protocol Support

Category Features
Cloud Management Juniper Mist Wired Assurance, ZTP, Marvis AI
Fabric Virtual Chassis (10 members), MC-LAG, EVPN-VXLAN
L2 Features VLAN, STP, RSTP, MSTP, LACP, 802.1X, LLDP
L3 Features OSPF, IS-IS, BGP, RIP, VRRP, BFD, static routing
High Availability GRES, NSB, NSR, ISSU, redundant PSUs/fans
Traffic Monitoring sFlow, port mirroring
Data Center Features FCoE transit switch, DCBX, PFC

Hardware Models

Model Description
EX4600-40F-AFO 24x SFP+, 4x QSFP+, AC, front-to-back airflow
EX4600-40F-AFI 24x SFP+, 4x QSFP+, AC, back-to-front airflow
EX4600-40F-DC-AFO 24x SFP+, 4x QSFP+, DC, front-to-back airflow
EX4600-40F-DC-AFI 24x SFP+, 4x QSFP+, DC, back-to-front airflow

Use Cases

  • Campus distribution and aggregation layers

  • Low-density data center top-of-rack (ToR) deployments

  • EVPN-VXLAN campus fabric distribution switch

  • Mixed 1/10/40GbE environments

  • Service provider aggregation
