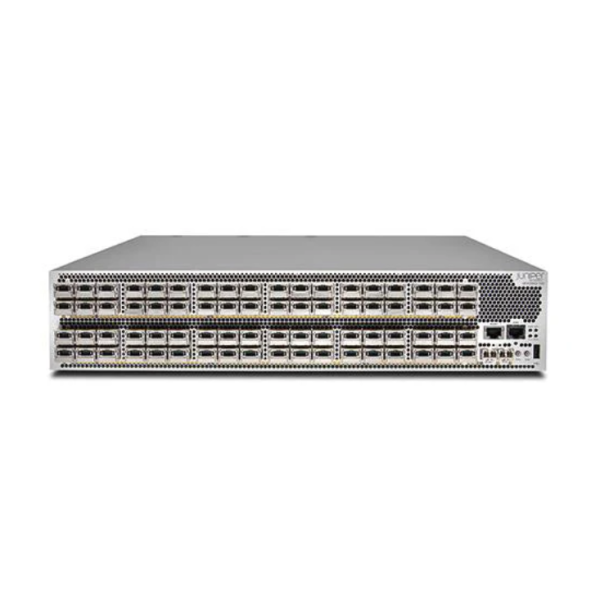

Juniper Network Equipment Qfx10002 Series Core Spine Switches 12 Tbps 100gbe
Juniper Network Equipment Qfx10002 Series Core Spine Switches 12 Tbps 100gbe
Juniper Network Equipment Qfx10002 Series Core Spine Switches 12 Tbps 100gbe
Juniper Network Equipment Qfx10002 Series Core Spine Switches 12 Tbps 100gbe
Specifications
Brand Name :
Juniper
Price :
Negotiable
Operatingsystem :
Junos OS
Delivery Time :
5-7 work days
Supply Ability :
200pcs
Packaging Details :
Carton packaging
Powersupply :
AC and DC options available depending on model
MOQ :
1pcs
Productname :
Juniper Network Equipment
Warranty :
Limited lifetime warranty with support options
Throughput :
Varies by model (e.g., up to 1 Tbps)
Model Number :
QFX10002 Series
Highavailability :
Supported with redundant power supplies and failover protocols
Producttype :
Networking Hardware
Manufacturer :
Juniper Networks
Place of Origin :
CHINA
Description

Juniper Network Equipment Qfx10002 Series Core Spine Switches 12 Tbps 100gbe

Product Overview

The QFX10002 Series is a fixed-configuration 2U core/spine switch family featuring up to 60×100GbE ports, 12 Tbps throughput, 24 GB deep buffers (100 ms per port), and EVPN-VXLAN support – purpose-built for data center spine-leaf IP fabrics and EVPN overlay networks.

Key Differentiators

  • High-Density 100GbE – Up to 60×100GbE ports (QFX10002-60C) or 72×40GbE ports in 2U.

  • Massive Throughput – Up to 12 Tbps bidirectional; 4 Bpps forwarding rate.

  • Deep Buffers – Hybrid Memory Cube architecture with up to 24 GB total buffer, 100 ms per port – ideal for lossy bursty traffic (RoCE, DCI).

  • EVPN-VXLAN Ready – L2/L3 gateway, multihoming, OVSDB, VMware NSX, Contrail Networking support.

  • Carrier-Grade Reliability – N+1 redundant hot-swappable power supplies and fan trays.

  • Precision Timing – PTP (1588v2) support for latency-sensitive applications.

  • Junos OS – Proven network operating system with full automation (ZTP, Python, Ansible, Puppet, Chef).

Technical Specifications

Specification QFX10002-36Q QFX10002-72Q QFX10002-60C
Form Factor 2U 2U 2U
Fixed Ports 36×QSFP+ 72×QSFP+ 60×QSFP28
Max 10GbE Ports 144 288 192
Max 40GbE Ports 36 72 60
Max 100GbE Ports 12 24 60
Switching Capacity 2.88 Tbps 5.76 Tbps 12 Tbps
Forwarding Rate 1 Bpps 2 Bpps 4 Bpps
Packet Buffer 12 GB 24 GB 24 GB
MAC Addresses 256K 512K 1M
IPv4 Routes 128K 128K 128K
ARP Entries 192K 340K 340K
Latency 2.5-5.5 µs 2.5-5.5 µs 2.5-5.5 µs
Max Power 800W 1,425W 1,824W
Power Supplies 2×1600W (1+1) 4×1600W (N+1) 4×1600W (N+1)
Cooling 3 hot-swap fan trays 3 hot-swap fan trays 3 hot-swap fan trays
Airflow Front-to-back Front-to-back Front-to-back
Dimensions (in) 3.46×17.4×31 3.46×17.4×31 3.46×17.4×31
Weight 50 lb (23 kg) 68.6 lb (31 kg) 80.5 lb (36.5 kg)
Operating Temp 0°C to 40°C 0°C to 40°C 0°C to 40°C

Software & Protocol Support

Category Features
L2 VLAN, STP, LACP, 802.1X, LLDP
L3 OSPF, IS-IS, BGP, VRRP, static routing, IPv6
Overlay/Data Center EVPN-VXLAN, MC-LAG, VXLAN L2/L3 gateway, OVSDB, NSX, Contrail
MPLS (license) L3 VPN, RSVP-TE, LDP
Management SNMP, SSH, NETCONF, Junos CLI
Telemetry sFlow, port mirroring, PTP
Automation ZTP, Python, Ansible, Puppet, Chef
