Juniper Network Equipment Srx5600 Services Gateway Firewall
Juniper Network Equipment Srx5600 Services Gateway Firewall
Juniper Network Equipment Srx5600 Services Gateway Firewall
Juniper Network Equipment Srx5600 Services Gateway Firewall
Specifications
Price :
Negotiable
Delivery Time :
5-7 work days
Brand Name :
Juniper
Supply Ability :
200pcs
Model Number :
SRX5600
Packaging Details :
Carton packaging
Place of Origin :
CHINA
MOQ :
1pcs
Description

Juniper Network Equipment Srx5600 Services Gateway Firewall

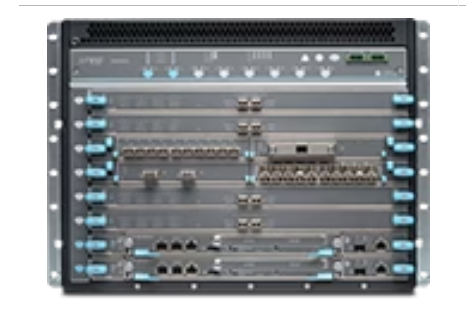

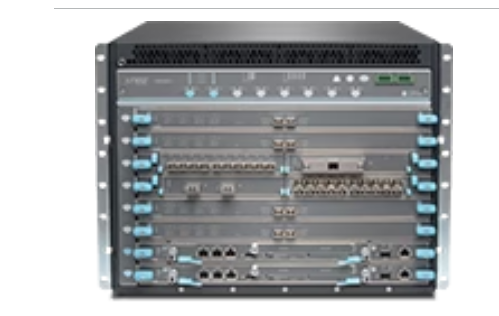

The Juniper SRX5600 delivers carrier-class firewall performance in a flexible 8 RU modular chassis, purpose-built for large data centers, service provider edges, and high-growth enterprise cores. Unlike fixed-configuration firewalls, it scales to 1.44 Tbps throughput and supports 182 million concurrent sessions, making it ideal for environments where traffic spikes and latency cannot be tolerated. Full hardware redundancy (power, SCBs, fans, Routing Engines) and dual switch fabric slots ensure non-stop operations, while Junos OS provides carrier-grade stability with FIPS 140-2 and Common Criteria EAL4+ certifications.

Key Features

  • 1.44 Tbps firewall / 245 Gbps IPS / 269 Gbps VPN

  • 182 million concurrent sessions, 3.5 million new sessions/sec

  • 6 interface slots for 1GbE to 100GbE (IOCs, Flex IOCs, MPCs)

  • 1+1 redundant SCBs, Routing Engines, power supplies, fans

  • 8 RU, 4,100W max consumption, front-to-back cooling

Specifications

Category Specification
Firewall Performance (max) 1.44 Tbps
IPS Performance 245 Gbps
VPN Performance 269 Gbps
Max Concurrent Sessions 182 million
New Sessions/sec (TCP) 3.5 million
Max Security Policies Unlimited
Form Factor 8 RU
Total Slots 8 (6 interface, 2 SCB)
Interface Support 1GbE, 10GbE, 40GbE, 100GbE
SCB Redundancy 1+1
Routing Engine Redundancy 1+1
Power Supplies 2 x AC/DC (1+1 redundant)
Cooling Hot-swappable, front-to-back
Dimensions (HxWxD) 14 x 17.5 x 23.8 in (35.6 x 44.5 x 60.5 cm)
Weight (fully loaded) 180 lb (81.7 kg)
Max Power Consumption 4,100W
Operating Temperature 41° to 104° F (5° to 40° C)

Software & Security Features

Category Features
Firewall Stateful/stateless, zone-based, DDoS, carrier-grade NAT
App Security AppSecure (3,500+ apps), SSL forward proxy, user-based firewall
Threat Prevention IPS, antivirus, URL filtering, Sky ATP, SecIntel feeds
VPN IPsec, GRE, Group VPN, IKEv1/v2, PKI
Routing OSPF, BGP, IS-IS, MPLS, VRF, multicast (PIM)
HA Chassis cluster (active/active or active/backup), stateful sync, ISSU
Management Juniper Security Director, CLI, J-Web, NETCONF, ZTP
Certifications FIPS 140-2 Level 2, CC EAL4+, NEBS Level 3, ICSA
