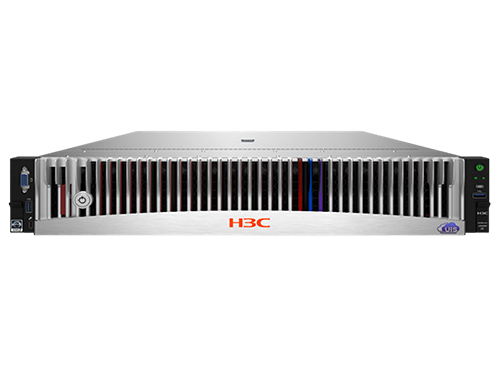

H3C UIS 3050 G7 2U Hyper-Converged Appliance
2x AMD EPYC 9005 CPUs | 24x DDR5 DIMMs | 41x Drives | 28x NVMe | Pre-Integrated UIS 8.0
Product Overview
The H3C UIS 3050 G7 is an enterprise-class 2U hyper-converged appliance powered by AMD EPYC 9005 Series processors. It integrates compute, storage, network, security virtualization, operations management, and disaster recovery on standard x86 servers. Pre-integrated and pre-validated, it arrives ready to deploy — out of the box, ready for the cloud.
Key Specifications
| Category | Specification |
|---|---|
| Form Factor | 2U rackmount |
| Processors | 2x AMD EPYC 9005 (192 cores/CPU max, 500W TDP) – up to 384 cores per system |
| Memory | 24x DDR5 DIMMs, up to 6400MT/s |
| Storage – SFF | Up to 41x 2.5" drives |
| Storage – LFF | Up to 20x 3.5" drives |
| NVMe Support | Up to 28x U.2 NVMe |
| E3.S Support | Up to 36x E3.S SSDs |
| Internal Boot | 2x M.2 SSDs |
| PCIe Slots | Up to 10x PCIe 5.0 + 2x OCP 3.0 |
| GPU Support | Up to 4 double-width OR 8 single-width GPUs |
| Network | 2x OCP 3.0 (multihost) + 1x HDM management |
| Power Supply | 1+1 redundant |
| Cooling | 4x 8056 fans, N+1 redundancy |
| Management | HDM (Redfish), UniSystem, UIS software, optional LCD |
| Security | Chassis intrusion detection, optional TCM/TPM |
| Operating Temp | 5°C to 45°C |
| Dimensions | 87.5 x 445.4 x 800 mm |
| Warranty | 3 years, 5×9, next business day |
Integrated UIS 8.0 Software
| Capability | Description |
|---|---|
| Component Fusion | Compute, storage, network, security in one platform |
| Compute Fusion | Bare metal, VM, container, function compute – unified orchestration |
| Database Fusion | Cloud relational DB – instant provisioning, elastic scaling |
| Storage Fusion | Unified block, file, object storage |
| Hardware-Software Fusion | Near-zero CPU virtualization overhead |
Key Deployment Scenarios
| Scenario | Benefit |
|---|---|
| Private Cloud | Short deployment cycles, low energy, high reliability |
| Hybrid Cloud | Extend to public cloud services (cloud VMs, backup, DR) |
| Edge Cloud | Northbound cloud integration, southbound device connectivity |
Why Choose UIS 3050 G7?
| Benefit | Description |
|---|---|
| Exceptional Density | 384 cores in 2U |
| Leading Memory | 24x DDR5 at 6400MT/s |
| Extensive Storage | 41 drives, 28 NVMe, 36 E3.S |
| GPU Ready | 4 double-width or 8 single-width GPUs |
| Out-of-Box Deployment | Pre-integrated – ready on arrival |
| Unified Management | Single portal for all resources |
| Carrier-Grade Reliability | Microsecond latency, second-level fault detection |
| Multi-Cluster Support | X86, ARM, AI, storage nodes |
Conclusion
The H3C UIS 3050 G7 combines dual AMD EPYC 9005 processors (up to 384 cores), 24 DDR5 DIMMs at 6400MT/s, up to 41 drives, and PCIe 5.0 expansion with pre-integrated UIS 8.0 software. With support for up to 8 GPUs, unified multi-resource orchestration, and carrier-grade reliability, it is the ideal turnkey hyper-converged solution for private cloud, hybrid cloud, and edge computing deployments.
