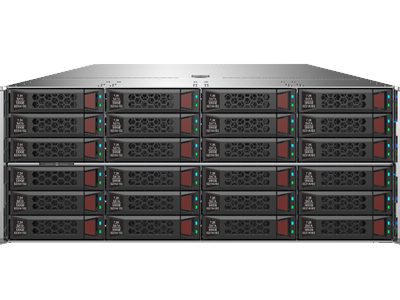

H3C UniServer R5300 G3 4U Rackmount High Storage Server 1000tb PCIe 4.0 Architecture For AI Computing
H3C UniServer R5300 G3 4U Rackmount High Storage Server 1000tb PCIe 4.0 Architecture For AI Computing
Specifications
Place of Origin :
CHINA
Delivery Time :
5-7 work days
Supply Ability :
200pcs
Productname :
H3C Server
Packaging Details :
Carton Packaging
Price :
Negotiable
MOQ :
1pc
Powersupply :
Redundant hot-swappable power supplies
Gpu :
4 Single-Slot GPU Modules
Storage :
2 x 480GB SSD
Fixed Ports :
16*10/10 0/1000TX+4*SFP
Brand Name :
H3C
Payment Terms :
T/T
Management Ethernet Ports :
1
Power Supply :
1+1 Redundancy power supply
Model Number :
R5300 G3
Hard Drive :
2.5/3.5 SAS/SATA/SSD/NVME
Description

H3C UniServer R5300 G3 4U Rackmount Server

Dual Intel Xeon Scalable | Up to 20 GPUs | 24x DDR4 DIMMs | PCIe 4.0 Architecture

Product Overview

The H3C UniServer R5300 G3 is a groundbreaking 4U rackmount GPU server independently developed for AI and HPC. It is the industry's first AI server to adopt PCIe 4.0 link design, delivering double the bandwidth of PCIe 3.0. Ideal for deep learning training, inference, HPC, and big data analytics.

Key Features

Feature Description
PCIe 4.0 Architecture 16 GT/s per lane – ultra-low latency, high-speed NVMe and networking
8 GPU Module Up to 8 double-width GPUs for deep learning training
20 GPU Module Up to 20 single-width GPUs for high-throughput inference
Massive Storage Up to 288TB capacity with 24x 3.5" drives

Technical Specifications

Category Specification
Form Factor 4U rackmount
Processors 2x Intel Xeon Scalable or Montage Tsingma (up to 28 cores, 205W TDP)
Chipset Intel C621
Memory 24x DDR4 DIMMs, up to 2933MT/s, 3.0TB max; supports Intel Optane DCPMM
GPU Support (8 GPU) 8 double-width GPUs
GPU Support (20 GPU) 20 single-width GPUs
Front Drive Bays 24x 3.5" SAS/SATA/NVMe (max 8 NVMe) OR 12x 3.5" (max 4 NVMe)
Expansion (8 GPU) 8x double-width x16 + 4x single-width x16 + OCP 3.0 + RAID slot
Expansion (20 GPU) 20x single-width x16 + OCP 3.0 + RAID slot
Network Optional OCP 3.0 network card
Cooling 8x 8056 fans, N+1 hot-plug redundant
Power Supply 4x 2000W/2400W Platinum, N+N redundancy
Management HDM agent-free + H3C FIST
Dimensions 174.8 x 447 x 807 mm
Operating Temp 5°C to 40°C

I/O Ports

Location Ports
Front 2x USB 2.0 (left), 1x USB 3.0 (right)
Rear 2x USB 3.0, 1x VGA, 1x Serial, 1x HDM management

Reliability

  • Power: N+N redundant Platinum PSUs

  • Cooling: N+1 hot-plug redundant fans

  • RAID: 0/1/10/5/6/50/60 support

  • Management: Remote monitoring, proactive alerting

OS Support

Microsoft Windows, Linux distributions, VMware, H3C CAS

Conclusion

The H3C UniServer R5300 G3 combines industry-first PCIe 4.0 technology, flexible GPU configurations (up to 20 GPUs), massive 288TB storage, and enterprise-grade reliability. Whether training deep learning models, performing real-time inference, or running HPC simulations, it delivers the performance and scalability required for AI-driven organizations.
