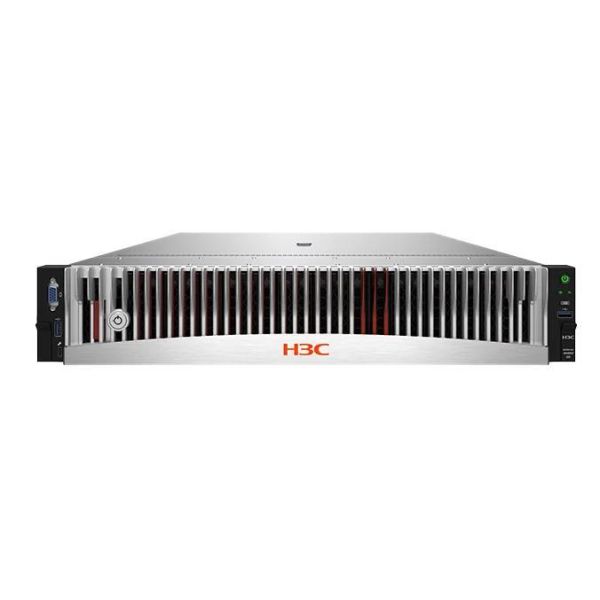

Hyper Converged H3C Server UniServer 3000 G7 1U 500tb 25GbE OEM
Hyper Converged H3C Server UniServer 3000 G7 1U 500tb 25GbE OEM
Specifications
Formfactor :
Rackmount 1U/2U/4U
Packaging Details :
Carton Packaging
Networkinterface :
1GbE/10GbE/25GbE options
Payment Terms :
T/T
Price :
Negotiable
MOQ :
1pc
Manufacturer :
H3C Technologies
Place of Origin :
CHINA
Processortype :
Intel Xeon Scalable Processors
Memory Type :
DDR4
Delivery Time :
5-7 work days
Processor :
2 x Intel Xeon 4410Y
Weight :
≤ 4.5kg
Model Number :
UIS 3000 G7
Brand Name :
H3C
Type :
Tower
Supply Ability :
200pcs
Description

H3C UIS 3000 G7 2U Hyper-Converged Appliance

2x Intel Xeon 6 CPUs | 32x DDR5 (6400MT/s) + 16x MRDIMM (8000MT/s) | 45x Drives | 40x NVMe | PCIe 5.0

Product Overview

The H3C UIS 3000 G7 is an enterprise-class 2U hyper-converged appliance based on the Intel Birch Stream platform. It integrates compute, storage, network, security virtualization, operations management, and disaster recovery on standard x86 servers. Pre-optimized and pre-validated, it arrives ready to use out of the box.

Key Specifications

Category Specification
Form Factor 2U rackmount (standard or extended chassis)
Processors 2x Intel Xeon 6 (Granite Rapids/Sierra Forest)
Memory 32x DDR5 (6400MT/s) + 16x MRDIMM (8000MT/s) + CXL 2.0 expansion
Storage – SFF Up to 45x 2.5" drives
Storage – LFF Up to 20x 3.5" drives
NVMe Support Up to 40x U.2 NVMe
E1.S/E3.S Up to 40 drives
Internal Boot M.2 SSDs, DSD module
PCIe Slots Up to 18 standard + 2 OCP 3.0 + 1 Mezzanine = 21 total
GPU Support Up to 3 double-width OR 8 single-width GPUs
Network 1x 1GbE management + OCP 3.0 (PCIe 5.0)
Power Supply 1+1 redundant; 800W–3200W Platinum/Titanium; DC options
Cooling N+1 redundant fans
Management HDM3, UniSystem, UIS software, optional LCD touch
Security TCM/TPM, chassis intrusion detection
Operating Temp 5°C to 45°C
Dimensions 87.5 x 445.4 x 800/900 mm
Warranty 3 years, 5×9, next business day

UIS Software Capabilities

Capability Description
Component Fusion Compute, storage, network, security in one platform
Compute Fusion Bare metal, VM, container, function compute – unified orchestration
Database Fusion Cloud relational DB – instant provisioning, elastic scaling
Storage Fusion Unified block, file, object storage with global cache
Hardware-Software Fusion Near-zero CPU virtualization overhead

Key Deployment Scenarios

Scenario Benefit
Private Cloud Short deployment cycles, low energy, broad compatibility
Hybrid Cloud Extend to public cloud services (backup, DR, cloud VMs)
Edge Cloud Northbound cloud integration, southbound device connectivity

Why Choose UIS 3000 G7?

Benefit Description
Out-of-Box Deployment Pre-integrated – ready on arrival
Extreme Scalability 21 PCIe slots, 45 drives, 40 NVMe
Leading Memory 8000MT/s MRDIMM + CXL 2.0
GPU Ready 3 double-width or 8 single-width GPUs
Carrier-Grade Reliability Microsecond latency, second-level fault detection
AI-Powered Management One-click operations, capacity prediction

Conclusion

The H3C UIS 3000 G7 combines dual Intel Xeon 6 processors, 32 DDR5 + 16 MRDIMM slots (8000MT/s), up to 45 drives, 40 NVMe, and PCIe 5.0 expansion in a 2U form factor. With pre-integrated UIS software, carrier-grade reliability, and comprehensive management, it delivers out-of-box cloud deployment for private cloud, hybrid cloud, and edge computing scenarios.
