8Lines Wire Hot Dipped Galvanized Steel Pipe Winding Mesh For Oil Pipeline
8Lines Wire Hot Dipped Galvanized Steel Pipe Winding Mesh For Oil Pipeline
8Lines Wire Hot Dipped Galvanized Steel Pipe Winding Mesh For Oil Pipeline
8Lines Wire Hot Dipped Galvanized Steel Pipe Winding Mesh For Oil Pipeline
8Lines Wire Hot Dipped Galvanized Steel Pipe Winding Mesh For Oil Pipeline
8Lines Wire Hot Dipped Galvanized Steel Pipe Winding Mesh For Oil Pipeline
Specifications
Brand Name :
H&F
Model Number :
HF-250516
Certification :
ISO-9001
Place of Origin :
Hebei, China
MOQ :
25000 Square Meters
Price :
USD4.80/M2~USD4.95/M2
Payment Terms :
T/T, Western Union
Supply Ability :
88000 Square Meters per month
Delivery Time :
According to order quantity
Packaging Details :
50 rolls per bundle or as customers' requirements
Product Name :
hot dipped galvanized steel pipe winding mesh
Key word :
Pipe coating welded Mesh
Material :
Hot dipped Galvanized wire
Line wire quantity :
6lines or 8lines,10lines
Wire diameter :
2.0mm-2.7mm or custom
Surface treatment :
hot dipped galvanized
Hole Size :
25.4mm x 67mm
Zinc coated :
70gm²~300g / m² or custom
Both sides line wire pitch :
25.4 mm or 50.8 mm
Middle line wire pitch :
25.4 mm
Hardness range :
485N/mm2~650N/mm2
Cross wire pitch :
67 mm or 92.4 mm
Roll Diameter :
700mm~1100mm
Exposed Wire Edge :
≤ 2.5 mm
Width :
190.5mm
Length :
140m,280m or custom
Sample :
Free sample to confirm quality
Load container way :
In bulk or in pallet
Description

8Lines wire hot dipped galvanized steel pipe winding mesh For oil Pipeline

Hot dipped galvanized steel pipe winding mesh Description:

Hot dipped galvanized steel pipe winding mesh also called Reinforced Wire Mesh.

It use good hot dipped galvanized wire.Surface in uniform and heavy zinc coated,which can make

the mesh anti-rust during shipping and use.

It is welded in standard hole size:25.4mm*67mm.Our hole size in strong welded point design,so it

can use the mesh long time and high tensile strength.So widely use for oil and gas pipeline projects.


Hot dipped galvanized steel pipe winding mesh specification list:

Product Name Hot dipped galvanized steel pipe winding mesh
Material Hot dipped galvanized wire
Wire diameter 2.0mm-2.7mm or custom
Hole size 25.4mm x 67mm
Surface treatment hot dipped galvanized
Zinc coated 70gm²~300g / m² or custom
Middle line wire pitch 25.4 mm
Cross wire pitch 67 mm or 92.4 mm

Both sides
line wire pitch

 25.4 mm or 50.8 mm
Line wire quantity 6lines, 8lines or 10lines
Exposed Wire Edge ≤ 2.5 mm
Hardness range 485N/mm2~650N/mm2
Roll Diameter 700mm-1150mm
Width dimensions 190.5mm
Length dimensions 140m,280m or custom
Sample Supply free sample to test


Hot dipped galvanized steel pipe winding mesh export specification details:

Wire Dia. Mesh Width Length
2.0mm/2.0mm 25.4mm x 67mm 190.5mm 140m, 280m
2.0mm/2.2mm 25.4mm x 67mm 190.5mm 140m, 280m
2.0mm/2.4mm 25.4mm x 67mm 190.5mm 140m, 280m
2.0mm/2.7mm 25.4mm x 67mm 190.5mm 140m, 280m


Hot dipped galvanized steel pipe winding mesh export 8lines wire and 6lines wire:
8Lines Wire Hot Dipped Galvanized Steel Pipe Winding Mesh For Oil Pipeline

6lines wire 8lines wire

Hot dipped galvanized steel pipe winding mesh Good Advantages:

  • High grade quality
  • Standard and uniform hole size
  • Strong welded
  • Standard width
  • Different length can design and custom
  • Surface bright and smooth
  • Strong tensile strength
  • Anti-rust
  • Anti-corrosion
  • Anti-water
  • Long time use
  • Install easy and fast
  • Strong packing way


Hot dipped galvanized steel pipe winding mesh install and use details:
8Lines Wire Hot Dipped Galvanized Steel Pipe Winding Mesh For Oil Pipeline8Lines Wire Hot Dipped Galvanized Steel Pipe Winding Mesh For Oil Pipeline
Hot dipped galvanized steel pipe winding mesh widely uses:

  1. River Bottom Gas & Oil Pipeline
  2. Everglades Gas Pipeline
  3. Subsea Gas & Oil Pipeline
  4. Water and Wastewater Pipeline
  5. Chemical Processing Pipeline

8Lines Wire Hot Dipped Galvanized Steel Pipe Winding Mesh For Oil Pipeline

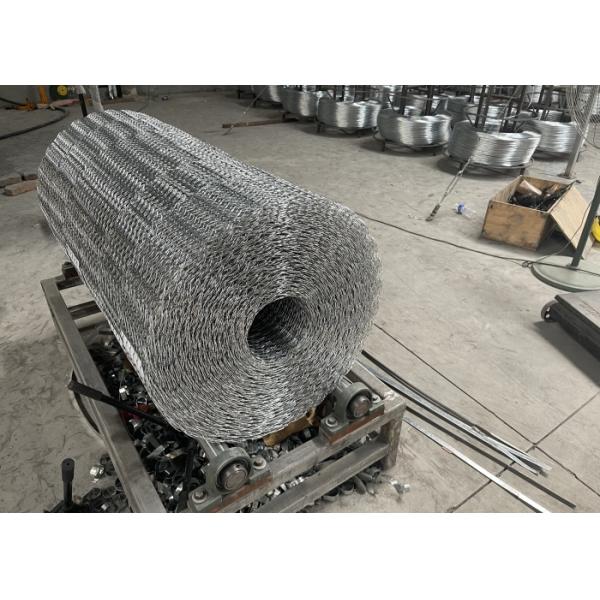

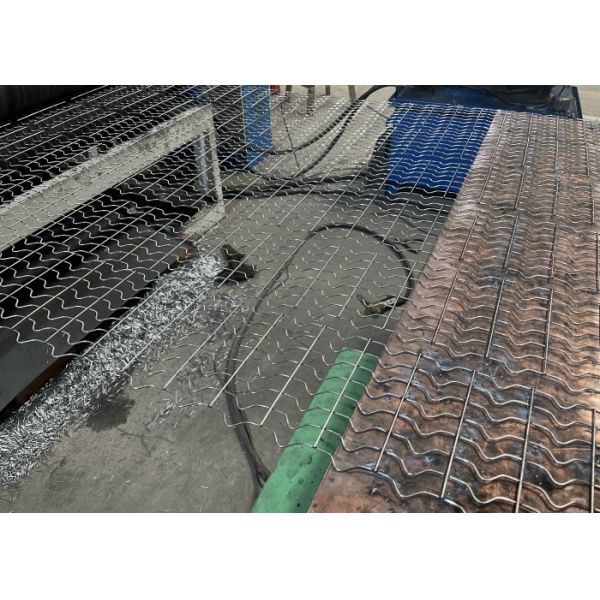

Show our Hot dipped galvanized steel pipe winding mesh product pictures:
8Lines Wire Hot Dipped Galvanized Steel Pipe Winding Mesh For Oil Pipeline

8Lines Wire Hot Dipped Galvanized Steel Pipe Winding Mesh For Oil Pipeline
8Lines Wire Hot Dipped Galvanized Steel Pipe Winding Mesh For Oil Pipeline

Our company:

8Lines Wire Hot Dipped Galvanized Steel Pipe Winding Mesh For Oil Pipeline8Lines Wire Hot Dipped Galvanized Steel Pipe Winding Mesh For Oil Pipeline

8Lines Wire Hot Dipped Galvanized Steel Pipe Winding Mesh For Oil Pipeline

8Lines Wire Hot Dipped Galvanized Steel Pipe Winding Mesh For Oil Pipeline
