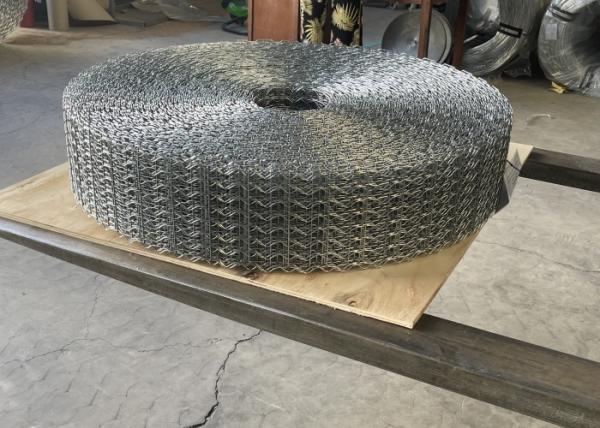

1.8mm Thickness 280Meters Length Steel pipe winding mesh For Gas & Oil Pipeline
1.8mm Thickness 280Meters Length Steel pipe winding mesh For Gas & Oil Pipeline
1.8mm Thickness 280Meters Length Steel pipe winding mesh For Gas & Oil Pipeline
1.8mm Thickness 280Meters Length Steel pipe winding mesh For Gas & Oil Pipeline
1.8mm Thickness 280Meters Length Steel pipe winding mesh For Gas & Oil Pipeline
1.8mm Thickness 280Meters Length Steel pipe winding mesh For Gas & Oil Pipeline
Specifications
Brand Name :
H&F
Model Number :
HF-250903
Certification :
ISO-9001
Place of Origin :
Hebei, China
MOQ :
22600 Square Meters
Price :
USD2.93/M2~USD3.57/M2
Payment Terms :
T/T,Western Union
Supply Ability :
65000 Square Meters per month
Delivery Time :
According to order quantity
Packaging Details :
6 rolls per bundle or as customers' requirements
Product Name :
1.8mm Thickness 280Meters Length Steel pipe winding mesh
Key word :
Steel Pipe reinforced mesh
Line wire quantity :
6lines or 8lines,10Lines
Material :
Hot dipped Galvanized wire
Wire diameter :
1.6mm-2.8mm
Surface treatment :
hot dipped galvanized
Exposed Wire Edge :
≤ 2.5 mm
Hole Size :
25.4mm x 67mm
Zinc coated :
70gm²~300g / m² or custom
Middle line wire pitch :
25.4 mm
Hardness range :
485N/mm2~650N/mm2
Cross wire pitch :
67 mm or 92.4 mm
Width :
190.5mm
Both sides line wire pitch :
25.4 mm or 50.8 mm
Length :
140m,145m,150m,280m etc
Roll Diameter :
700mm~1100mm
Load container way :
In bulk or in pallet
Sample :
Supply free sample can test quality
Description
1.8mm Thickness 280Meters Length Steel pipe winding mesh For Gas & Oil Pipeline
Product Specifications
Attribute Value
Product Name Steel Pipe winding mesh
Key word Steel pipe reinforced mesh
Material Hot dipped Galvanized wire
Surface treatment Hot dipped galvanized
Hole Size 25.4mm x 67mm
Line wire quantity 6lines or 8lines, 10Lines
Wire diameter 1.6mm-2.8mm
Middle line wire pitch 25.4 mm
Exposed Wire Edge ≤ 2.5 mm
Zinc coated 70gm²~300g / m² or custom
Cross wire pitch 67 mm or 92.4 mm
Hardness range 485N/mm²~650N/mm²
Both sides line wire pitch 25.4 mm or 50.8 mm
Width 190.5mm
Length 140m, 145m, 280m etc
Roll Diameter 700mm~1100mm
Load container way In bulk or in pallet
Sample Supply free sample to test
Product Description
Steel Pipe Winding mesh is we specially designed and make for Water and Wastewater Pipeline/offshore oil and gas pipeline applications. Manufactured from Export high-grade quality hot dipped galvanized wire, its features strong,anti-rust,high tensile and uniform hole sizes with excellent durability.Make sure long time use and save cost.
Technical Specifications
Product Name Steel Pipe Winding mesh
Material Hot dipped galvanized wire
Wire diameter 1.6mm-2.8mm
Hole size 25.4mm x 67mm
Surface treatment Hot dipped galvanized
Zinc coated 70gm²~300g / m² or custom
Middle line wire pitch 25.4 mm
Cross wire pitch 67 mm or 92.4 mm
Both sides line wire pitch 25.4 mm or 50.8 mm
Line wire quantity 6lines, 8lines or 10lines
Exposed Wire Edge ≤ 2.5 mm
Hardness range 485N/mm²~650N/mm²
Roll Diameter 700mm-1150mm
Width dimensions 190.5mm
Length dimensions 140m, 145m, 280m etc
Sample Supply free sample to test
Product Variants
1.8mm Thickness 280Meters Length Steel pipe winding mesh For Gas & Oil Pipeline
1.8mm Thickness 280Meters Length Steel pipe winding mesh For Gas & Oil Pipeline
Key Advantages
  • Export High grade quality
  • New material
  • Standard wire diameter
  • Standard roll width
  • Enough Roll length
  • Precision hole sizing
  • Uniform hole size design
  • Anti-rust and anti-corrosion properties
  • Strong welded point
  • Customizable roll lengths
  • Tensile strength high
  • Long service life
  • Easy to use and store
  • Secure packaging options
  • Shipping-friendly design
Packaging Options
  • 1-6 rolls per bundle
  • Sturdy pallet packaging
  • Reinforced wooden boxes
  • Bulk container loading
  • Custom packaging available
Applications
  1. River Bottom Gas & Oil Pipeline
  2. Everglades Gas Pipeline
  3. Chemical Processing Pipeline
  4. Subsea Gas & Oil Pipeline
  5. Water and Wastewater Pipeline
