140 Meter 1.8mm Galvanized Reinfore Welded Mesh For Offshore Oil Pipelines

Specifications

Brand Name :

H&F

Model Number :

HF-250510

Certification :

ISO-9001

Place of Origin :

Hebei, China

MOQ :

22000 Square Meters

Price :

USD4.80/M2~USD4.99/M2

Payment Terms :

T/T, Western Union

Supply Ability :

80000 Square Meters per month

Delivery Time :

According to order quantity

Packaging Details :

50 rolls per bundle or as customers' requirements

Product Name :

Reinfore Welded Mesh

Key word :

Pipeline coating Mesh

Material :

Hot dipped Galvanized wire

Wire diameter :

1.8mm-2.7mm

Line wire quantity :

6lines or 8lines,10lines

Hole Size :

25.4mm x 67mm

Surface treatment :

hot dipped galvanized

Zinc coated :

70gm²~300g / m² or custom

Middle line wire pitch :

25.4 mm

Cross wire pitch :

67 mm or 92.4 mm

Hardness range :

485N/mm2~650N/mm2

Both sides line wire pitch :

25.4 mm or 50.8 mm

Roll Diameter :

700mm~1100mm

Exposed Wire Edge :

≤ 2.5 mm

Length :

140m,145m,280m etc

Width :

190.5mm

Sample :

Supply free sample to test

Load container way :

In bulk or in pallet

Description

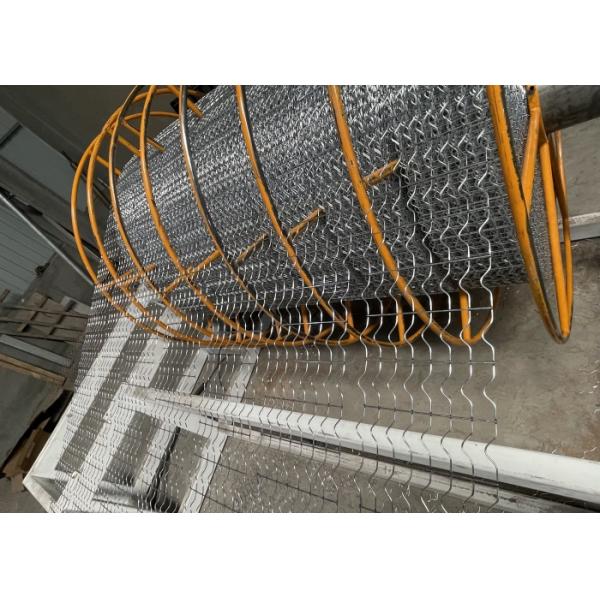

140Meter 1.8mm Galvanized Reinfore Welded Mesh For Offshore Oil Pipelines

Galvanized Reinfore Welded Mesh Description:

Galvanized reinforce Welded Mesh is one kind we special design for offshore Oil pipelines use.

It is made in high quality galvanized wire.The galvanized wire including hot dipped galvanized and

electric galvanized.Surface with uniform zinc coated.So can strong anti-rust and anti-Corrosion.

Our machine welded the standard hole size 25.4mm*67mm.

It can make curved lines,normal 8lines or 10lines,which can make the mesh high tensile strength.

So suitable use for Offshore Oil and Gas Pipelines projects.

Galvanized Reinfore Welded Mesh specification list:

Product Name	Galvanized Reinforce Welded Mesh
Material	Hot dipped galvanized wire
Wire diameter	1.8mm-2.7mm
Hole size	25.4mm x 67mm
Surface treatment	hot dipped galvanized
Zinc coated	70gm²~300g / m² or custom
Middle line wire pitch	25.4 mm
Cross wire pitch	67 mm or 92.4 mm
Both sides line wire pitch	25.4 mm or 50.8 mm
Line wire quantity	6lines, 8lines or 10lines
Exposed Wire Edge	≤ 2.5 mm
Hardness range	485N/mm2~650N/mm2
Roll Diameter	700mm-1150mm
Width dimensions	190.5mm
Length dimensions	140m,145m,280m etc
Sample	Supply free sample to test

Galvanized Pipeline Reinfore Welded Mesh different specification can choose:

Wire Dia.	Mesh	Width	Length
2.0mm/2.0mm	25.4mm x 67mm	190.5mm	140m, 280m
2.0mm/2.2mm	25.4mm x 67mm	190.5mm	140m, 280m
2.0mm/2.4mm	25.4mm x 67mm	190.5mm	140m, 280m
2.0mm/2.7mm	25.4mm x 67mm	190.5mm	140m, 280m

Galvanized Pipeline Reinfore Welded Mesh export 4 types pipeline reinforced mesh for choice:
