High Tensile 1.8mm Pipeline Coating 8 Lines Wire Welded Mesh For Offshore Gas Pipeline
High Tensile 1.8mm Pipeline Coating 8 Lines Wire Welded Mesh For Offshore Gas Pipeline
High Tensile 1.8mm Pipeline Coating 8 Lines Wire Welded Mesh For Offshore Gas Pipeline
High Tensile 1.8mm Pipeline Coating 8 Lines Wire Welded Mesh For Offshore Gas Pipeline
High Tensile 1.8mm Pipeline Coating 8 Lines Wire Welded Mesh For Offshore Gas Pipeline
High Tensile 1.8mm Pipeline Coating 8 Lines Wire Welded Mesh For Offshore Gas Pipeline
Specifications
Brand Name :
H&F
Model Number :
HF-250534
Certification :
ISO-9001
Place of Origin :
Hebei, China
MOQ :
13000 Square Meters
Price :
USD4.82/M2~USD4.95/M2
Payment Terms :
T/T, Western Union
Supply Ability :
92000 Square Meters per month
Delivery Time :
According to order quantity
Packaging Details :
6rolls per bundle or as customers' requirements
Product Name :
High tensile 1.8mm Pipeline Coating 8Lines wire welded mesh
Key word :
Reinforcement Welded Mesh
Wire diameter :
1.8mm-2.7mm
Material :
Hot dipped Galvanized wire
Line wire quantity :
8lines,10lines
Both sides line wire pitch :
25.4 mm or 50.8 mm
Hole Size :
25.4mm x 67mm
Zinc coated :
70gm²~300g / m² or custom
Roll Diameter :
700mm~1100mm
Surface treatment :
hot dipped galvanized
Middle line wire pitch :
25.4 mm
Hardness range :
485N/mm2~650N/mm2
Width :
190.5mm
Length :
140m,145m,280m etc
Cross wire pitch :
67 mm or 92.4 mm
Exposed Wire Edge :
≤ 2.5 mm
Use life :
Above 30years
Sample :
Supply free sample to test
Description

High tensile 1.8mm Pipeline Coating 8Lines wire welded mesh For Offshore Gas Pipeline

Pipeline Coating 8Line wire welded mesh Description:

Pipeline Coating 8Line wire welded mesh is made in 8lines wire.

The material wire use electric galvanized wire hot dipped galvanized wire.Our machine welded in

the standard hole size:25.4mm*67mm and standard width size:190.5mm.

The length custom clients' need different length.

It has good advantages:standard wire diameter,uniform hole,the lowest tolerance,strong tensile

strength,good anti-rust and anti-corrosion,enough length.So suitable for Offshore Gas Pipeline

projects use.


Pipeline Coating 8Line wire welded mesh specification list:

Product NamePipeline Coating 8Line wire welded mesh
MaterialHot dipped galvanized wire
Wire diameter1.8mm-2.7mm
Hole size25.4mm x 67mm
Surface treatmenthot dipped galvanized
Zinc coated70gm²~300g / m² or custom
Middle line wire pitch25.4 mm
Cross wire pitch67 mm or 92.4 mm

Both sides
line wire pitch

25.4 mm or 50.8 mm
Line wire quantity6lines, 8lines or 10lines
Exposed Wire Edge≤ 2.5 mm
Hardness range485N/mm2~650N/mm2
Roll Diameter700mm-1150mm
Width dimensions190.5mm
Length dimensions140m,145m,280m etc
Sample Supply free sample to test


Pipeline Coating 8Line wire welded mesh different specification for export:
High Tensile 1.8mm Pipeline Coating 8 Lines Wire Welded Mesh For Offshore Gas Pipeline

Pipeline Coating 8Line wire welded mesh export 2 types drawing details:
High Tensile 1.8mm Pipeline Coating 8 Lines Wire Welded Mesh For Offshore Gas PipelineHigh Tensile 1.8mm Pipeline Coating 8 Lines Wire Welded Mesh For Offshore Gas Pipeline
Pipeline Coating 8Line wire welded mesh Implementation standards:

  • GB / T701,
  • ASTM A641,
  • GB / T1499.3,
  • GB / T228,
  • GB / T238,
  • ASTM A370,
  • ASTM A810,
  • ASTM A185,
  • ASTM A82,
  • ASTM A1064.


Pipeline Coating 8Line wire welded mesh Good Features:

  • Good quality material wire
  • Wire diameter Standard
  • Hole size uniform and standard
  • Hole in same size
  • Welded point is strong
  • The specification in lowest tolerance
  • Enough Length and width
  • Bright and smooth surface
  • High tensile strength
  • Anti-Corrosion
  • Anti-Rust
  • Usel time more longer
  • Fast install and easy use
  • Delivery time in fast time


Pipeline Coating 8Line wire welded mesh Packing way:

  1. Packing 2rolls,5rolls,6rolls in one bundle
  2. load in pallet or in woden case
  3. Load in bulk
  4. As clients' need way


Pipeline Coating 8Line wire welded mesh use areas:

  • Subsea Gas&Oil Pipeline
    Pipeline reinforced mesh is used to reinforce subsea oil and gas pipelines,providing additional
    strength and durability to the pipeline.
  • Everglades Gas Pipeline
    The CWC mesh can be used to protect the everglades gas pipeline from external factors such
    as erosion,corrosion,or wildlife damage.
    Chemical Processing Pipeline
    CWC lining with wire mesh safeguards pipelines in chemical plants,refineries,and petrochemical
    facilities,protecting them from aggressive chemicals and corrosive substances.
  • River Bottom Gas&Oil Pipeline
    Pipeline reinforced mesh provides additional support and reinforcement to distribute the weight
    of the pipeline more evenly across the river or stream bed.This can help reduce the risk of
    damage to the river or stream bed.
  • Mining and Ore Processing Pipeline
    Steel pipes used in mining operations and ore processing plants can benefit from the exceptional
    corrosion resistance provided by CWC lining with wire mesh.
    Water and Wastewater Pipeline
    This technique is highly effective in preventing corrosion in water distribution systems,sewage
    treatment plants,and desalination facilities.
    High Tensile 1.8mm Pipeline Coating 8 Lines Wire Welded Mesh For Offshore Gas Pipeline

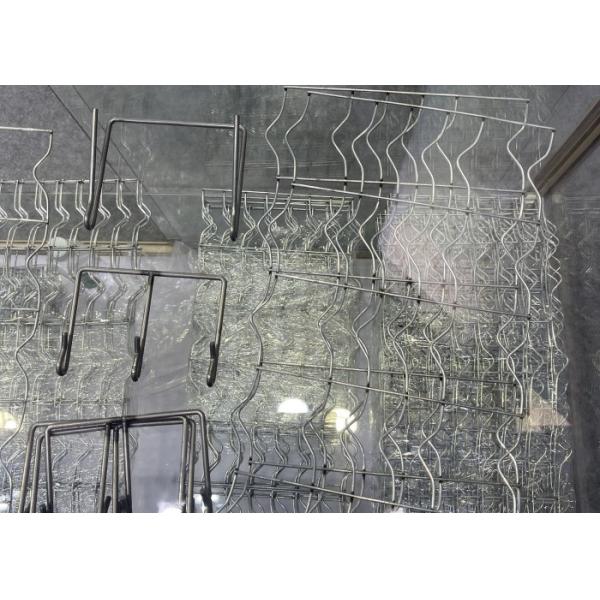

Show our Pipeline Coating 8Line wire welded mesh product pictures:
High Tensile 1.8mm Pipeline Coating 8 Lines Wire Welded Mesh For Offshore Gas PipelineHigh Tensile 1.8mm Pipeline Coating 8 Lines Wire Welded Mesh For Offshore Gas PipelineHigh Tensile 1.8mm Pipeline Coating 8 Lines Wire Welded Mesh For Offshore Gas PipelineHigh Tensile 1.8mm Pipeline Coating 8 Lines Wire Welded Mesh For Offshore Gas Pipeline

Our company:

High Tensile 1.8mm Pipeline Coating 8 Lines Wire Welded Mesh For Offshore Gas PipelineHigh Tensile 1.8mm Pipeline Coating 8 Lines Wire Welded Mesh For Offshore Gas Pipeline

High Tensile 1.8mm Pipeline Coating 8 Lines Wire Welded Mesh For Offshore Gas Pipeline

High Tensile 1.8mm Pipeline Coating 8 Lines Wire Welded Mesh For Offshore Gas Pipeline
