10 Lines Wire High Tensile Pipeline Reinforced Mesh For Oil Gas
10 Lines Wire High Tensile Pipeline Reinforced Mesh For Oil Gas
10 Lines Wire High Tensile Pipeline Reinforced Mesh For Oil Gas
10 Lines Wire High Tensile Pipeline Reinforced Mesh For Oil Gas
10 Lines Wire High Tensile Pipeline Reinforced Mesh For Oil Gas
10 Lines Wire High Tensile Pipeline Reinforced Mesh For Oil Gas
Specifications
Brand Name :
H&F
Model Number :
HF-2506013
Certification :
ISO-9001
Place of Origin :
Hebei, China
MOQ :
21600 Square Meters
Price :
USD2.90/M2~USD3.61/M2
Payment Terms :
T/T,Western Union
Supply Ability :
61600 Square Meters per month
Delivery Time :
According to order quantity
Packaging Details :
50 rolls per bundle or as customers' requirements
Product Name :
Pipeline reinforced mesh
Key word :
CWC mesh
Hole Size :
25.4mm x 67mm
Surface treatment :
hot dipped galvanized
Wire diameter :
1.6mm-2.8mm
Material :
Hot dipped Galvanized wire
Exposed Wire Edge :
≤ 2.5 mm
Line wire quantity :
6lines or 8lines,10Lines
Cross wire pitch :
67 mm or 92.4 mm
Middle line wire pitch :
25.4 mm
Both sides line wire pitch :
25.4 mm or 50.8 mm
Zinc coated :
70gm²~300g / m² or custom
Hardness range :
485N/mm2~650N/mm2
Roll Diameter :
700mm~1100mm
Length :
140m,145m,280m etc
Load container way :
In bulk or in pallet
Width :
190.5mm
Sample :
Supply free sample to test
Description
10 Lines Wire High Tensile Pipeline Reinforced Mesh For Oil & Gas
Product Specifications
Attribute Value
Product Name Pipeline reinforced mesh
Key word CWC mesh
Hole Size 25.4mm x 67mm
Surface treatment Hot dipped galvanized
Wire diameter 1.6mm-2.8mm
Material Hot dipped Galvanized wire
Exposed Wire Edge ≤ 2.5 mm
Line wire quantity 6lines, 8lines or 10lines

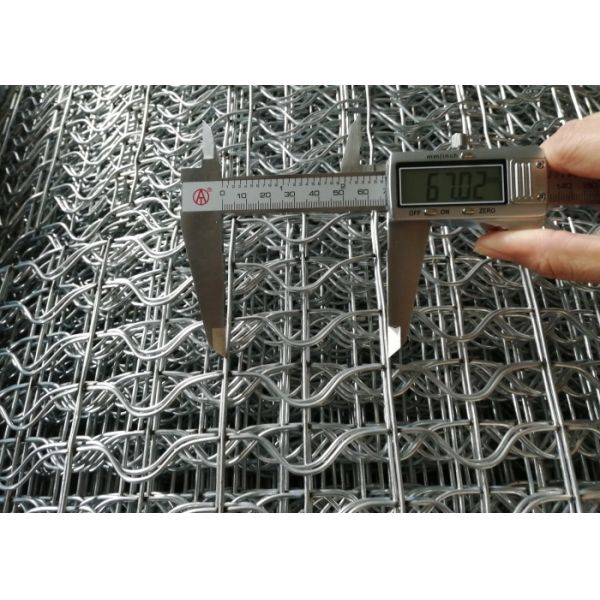

Cross wire pitch 67 mm or 92.4 mm
Middle line wire pitch 25.4 mm
Both sides line wire pitch 25.4 mm or 50.8 mm
Zinc coated 70g/m²~300g/m² or custom
Hardness range 485N/mm²~650N/mm²
Roll Diameter 700mm~1100mm
Length 140m, 145m, 280m etc
Load container way In bulk or in pallet
Width 190.5mm
Sample Supply free sample to test
Product Description

Our 10 Lines Wire High Tensile Pipeline Reinforced Mesh is specially designed for offshore oil and gas pipeline applications. Manufactured from high-grade galvanized wire with strong, uniform hole sizes, this mesh offers exceptional durability and performance in demanding environments.

Key Features
  • High-grade quality galvanized wire construction
  • Standard wire diameters: 1.8mm, 2mm, 2.2mm, 2.5mm, 2.7mm
  • Available in 6-line, 8-line, or 10-line configurations
  • Custom roll lengths available to meet specific requirements
  • High tensile strength for superior performance
  • Anti-rust surface treatment for long service life
  • Precision hole sizing with minimal tolerance
  • Uniform hole design for consistent performance
Technical Specifications
Product Name Pipeline reinforced mesh
Material Hot dipped galvanized wire
Wire diameter 1.6mm-2.8mm
Hole size 25.4mm x 67mm
Surface treatment Hot dipped galvanized
Zinc coating 70g/m²~300g/m² or custom
Middle line wire pitch 25.4 mm
Cross wire pitch 67 mm or 92.4 mm
Both sides line wire pitch 25.4 mm or 50.8 mm
Line wire quantity 6lines, 8lines or 10lines
Exposed Wire Edge ≤ 2.5 mm
Hardness range 485N/mm²~650N/mm²
Roll Diameter 700mm~1150mm
Width dimensions 190.5mm
Length dimensions 140m, 145m, 280m etc
Sample Supply free sample to test
Product Variations
10 Lines Wire High Tensile Pipeline Reinforced Mesh For Oil Gas
Product Advantages
  • High-grade quality materials
  • Precision wire diameter standards
  • Consistent roll width and length
  • Strong welded construction
  • Extended roll lengths available
  • Superior tensile strength
  • Standardized hole sizes
  • Uniform hole pattern design
  • Minimal manufacturing tolerances
  • Anti-rust and anti-corrosion properties
  • Robust packaging solutions
  • Shipping-friendly configuration
  • Long service life
  • Easy to use and store
Packaging Options
  • 2-6 rolls per bundle
  • Sturdy wooden box packaging
  • Palletized for secure shipping
  • Bulk container loading available
  • Custom packaging solutions
Applications
  • River Bottom Gas & Oil Pipeline
  • Subsea Gas & Oil Pipeline
  • Everglades Gas Pipeline
  • Chemical Processing Pipeline
  • Water and Wastewater Pipeline
Product Gallery
10 Lines Wire High Tensile Pipeline Reinforced Mesh For Oil Gas
10 Lines Wire High Tensile Pipeline Reinforced Mesh For Oil Gas
10 Lines Wire High Tensile Pipeline Reinforced Mesh For Oil Gas
10 Lines Wire High Tensile Pipeline Reinforced Mesh For Oil Gas
