190.5 Width In Roll Hot Dipped Galvanized Reinforced Wire Mesh For Wastewater Pipeline
190.5 Width In Roll Hot Dipped Galvanized Reinforced Wire Mesh For Wastewater Pipeline
190.5 Width In Roll Hot Dipped Galvanized Reinforced Wire Mesh For Wastewater Pipeline
190.5 Width In Roll Hot Dipped Galvanized Reinforced Wire Mesh For Wastewater Pipeline
190.5 Width In Roll Hot Dipped Galvanized Reinforced Wire Mesh For Wastewater Pipeline
190.5 Width In Roll Hot Dipped Galvanized Reinforced Wire Mesh For Wastewater Pipeline
190.5 Width In Roll Hot Dipped Galvanized Reinforced Wire Mesh For Wastewater Pipeline
190.5 Width In Roll Hot Dipped Galvanized Reinforced Wire Mesh For Wastewater Pipeline
Specifications
Brand Name :
H&F
Model Number :
HF-250703
Certification :
ISO-9001
Place of Origin :
Hebei, China
MOQ :
27300 Square Meters
Price :
USD2.73/M2~USD3.15/M2
Payment Terms :
T/T,Western Union
Supply Ability :
67000 Square Meters per month
Delivery Time :
According to order quantity
Packaging Details :
50 rolls per bundle or as customers' requirements
Product Name :
190.5 width In Roll Hot Dipped Galvanized Reinforced Wire Mesh
Key word :
Hot dipped galvanized Reinforced Welded Wire Mesh
Material :
Hot dipped Galvanized wire
Wire diameter :
1.6mm-2.8mm
Hole Size :
25.4mm x 67mm
Exposed Wire Edge :
≤ 2.5 mm
Zinc coated :
70gm²~300g / m² or custom
Width :
190.5mm
Length :
140m,145m,280m etc
Cross wire pitch :
67 mm or 92.4 mm
Surface treatment :
hot dipped galvanized
Middle line wire pitch :
25.4 mm
Line wire quantity :
6lines or 8lines,10Lines
Both sides line wire pitch :
25.4 mm or 50.8 mm
Hardness range :
485N/mm2~650N/mm2
Roll Diameter :
700mm~1100mm
Load container way :
In pallet or In wooden case
Sample :
Supply free sample for confirm quality
Description

190.5 width In Roll Hot Dipped Galvanized Reinforced Wire Mesh For Wastewater Pipeline

Hot Dipped Galvanized Reinforced Wire Mesh Description:

Hot Dipped Galvanized Reinforced Wire Mesh also called Galvanized reinforced welded wire mesh.It is special
design and use for offshore oil and gas pipeline use.

It choose high grade quality Hot dipped galvanized wire,Make in strong and uniform hole size.

The wire diameter normal have 1.8mm,2mm,2.2mm,2.5mm 2.7mm and so on.

The line number normal have 6lines,8lines,10lines can choice and use.The roll length can as clients'

application special custom.The high tensile strength,anti-rust surface and lond use time.

so widely use for Wastewater Pipeline project.


Hot Dipped Galvanized Reinforced Wire Mesh specification list:

Product Name Hot dipped Galvanized Reinforced Wire Mesh
Material Hot dipped galvanized wire
Wire diameter 1.6mm-2.8mm
Hole size 25.4mm x 67mm
Surface treatment hot dipped galvanized
Zinc coated 70gm²~300g / m² or custom
Middle line wire pitch 25.4 mm
Cross wire pitch 67 mm or 92.4 mm

Both sides
line wire pitch

 25.4 mm or 50.8 mm
Line wire quantity 6lines, 8lines or 10lines
Exposed Wire Edge ≤ 2.5 mm
Hardness range 485N/mm2~650N/mm2
Roll Diameter 700mm-1150mm
Width dimensions 190.5mm
Length dimensions 140m,145m,280m etc
Sample Supply free sample can confirm quality

Hot Dipped Galvanized Galvanized Reinforced Wire Mesh Export choose different 4types details:

190.5 Width In Roll Hot Dipped Galvanized Reinforced Wire Mesh For Wastewater Pipeline

Hot Dipped Galvanized Reinforced Wire Mesh good advantages:

  • High grade quality
  • Standard wire diameter
  • Uniform hole
  • Standard hole size
  • Standard roll width
  • Enough roll length
  • Strong tensile strength
  • Surface smooth& bright
  • Strong welded point
  • Easy use and store
  • Anti-corrosion&Anti-rust
  • Lowest wire diameter tolerance
  • Suitable for shipping by ocean
  • Strong package


Hot Dipped Galvanized Reinforced Wire Mesh Export package way:

  • 2Rolls/3Rolls/4Rolls/5rolls,make in per bundle
  • In Export Strong pallet
  • In Export Strong wooden case
  • Load container in bulk
  • Same as Customers' need way

Hot Dipped Galvanized Reinforced Wire Mesh widely application:

  1. Water and Wastewater Pipeline
  2. Everglades Gas Pipeline
  3. River Bottom Gas & Oil Pipeline
  4. Subsea Gas & Oil Pipeline
  5. Chemical Processing Pipeline

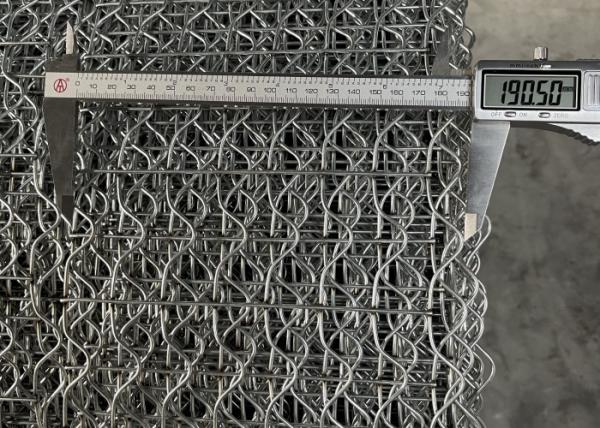

Show our Hot Dipped Galvanized Reinforced Wire Mesh product pictures:

190.5 Width In Roll Hot Dipped Galvanized Reinforced Wire Mesh For Wastewater Pipeline

190.5 Width In Roll Hot Dipped Galvanized Reinforced Wire Mesh For Wastewater Pipeline

190.5 Width In Roll Hot Dipped Galvanized Reinforced Wire Mesh For Wastewater Pipeline190.5 Width In Roll Hot Dipped Galvanized Reinforced Wire Mesh For Wastewater Pipeline190.5 Width In Roll Hot Dipped Galvanized Reinforced Wire Mesh For Wastewater Pipeline

190.5 Width In Roll Hot Dipped Galvanized Reinforced Wire Mesh For Wastewater Pipeline
