SS304 150Mesh Stainless Steel Woven Wire Mesh for Chemical industry filter use
SS304 150Mesh Stainless Steel Woven Wire Mesh for Chemical industry filter use
SS304 150Mesh Stainless Steel Woven Wire Mesh for Chemical industry filter use
SS304 150Mesh Stainless Steel Woven Wire Mesh for Chemical industry filter use
SS304 150Mesh Stainless Steel Woven Wire Mesh for Chemical industry filter use
SS304 150Mesh Stainless Steel Woven Wire Mesh for Chemical industry filter use
Specifications
Model Number :
HS-260901
Key word :
SS304 Woven Mesh
MOQ :
150SQM
Delivery Time :
5-8days
Type :
woven mesh
Length :
1m 1.5m 2m 2.5m 3m 4m 5m 10m 15m 20m 25m 30m etc
Payment Terms :
T/T, Western Union, L/C
Mesh(Aperture) :
100mesh,110mesh,120mesh,150mesh,200mesh,300mesh,400mesh,500mesh etc
Application :
Chemical industry filter use
Price :
USD18.88~USD19.22
Weave types :
Plain Weave
Sample :
Free sample can test and confirm quality
Supply Ability :
2000SQM/day
Hole Shape :
Standard Square hole
Color :
stainless steel original color or custom
Use time :
3years-6years
Certification :
ISO9001
Wire Diameter :
0.07mm or custom
Brand Name :
HANGSHUN
Product Name :
SS304 150Mesh Stainless Steel Woven Wire Mesh
Packaging Details :
In Pallet,In wooden box etc
Width :
0.55m 0.6m 0.8m 0.914m 1m 1.5m 1.6m 2m 2.1m 2.4m 3m 4m etc
Place of Origin :
CHINA
Material :
SS304 stainless steel wire or custom
Description
SS304 150Mesh Stainless Steel Woven Wire Mesh for Chemical industry filter use
Product Description

Stainless steel woven wire mesh is made from high-quality stainless steel wire materials including SS304, SS316. Available in various weave styles with standard square holes, we can customize the width and length to meet your specific requirements.It can widely use for filter projects.

Detailed Specifications
Feature Details
Material SS304 stainless steel wire or custom
Wire Diameter 0.07mm or custom
Type woven mesh
Mesh(Aperture) 100mesh,110Mesh,120Mesh,150mesh,200mesh,300mesh,400mesh,500mesh etc
Hole shape Standard Square hole
Weave type Plain Weave
Color stainless steel original color or custom
Width Size 0.55m 0.6m 0.8m 0.914m 1m 1.5m 1.6m 2m 2.1m 2.4m 3m 4m etc
Length Size 1m 1.5m 2m 2.5m 3m 4m 5m 10m 15m 20m 25m 30m etc
Sample service Free sample can test and confirm quality
Application Chemical industry filter use
Use time 3years-6years
Mesh Specifications
Mesh/Inch Wire Diameter Aperture Open Area Weight(LB)/100 Square Foot
1x1 .080 (2.03mm) .920 (23.37mm) 84.6 41.1
2X2 .063 (1.60mm) .437 (11.10mm) 76.4 51.2
12X12 .020 (.508mm) .063 (1.60mm) 57.2 31.6
14X14 .023 (.584mm) .048 (1.22mm) 45.2 49.8
30X30 .009 (.229mm) .0243 (.62mm) 53.1 16.1
35X35 .011 (.279mm) .0176 (.45mm) 37.9 29.0
40X40 .010 (.254mm) .0150 (.38mm) 36.0 27.6
80X80 .0065 (.165mm) .0060 (.15mm) 23.0 23.2
100X100 .0035 (.089mm) .0065 (.17mm) 42.3 8.3
110X110 .0040 (.1016mm) .0051 (.1295mm) 30.7 12.4
120X120 .0037 (.0940mm) .0064 (.1168mm) 30.7 11.6
150X150 .0026 (.0660mm) .0041 (.1041mm) 37.4 7.1
160X160 .0025 (.0635mm) .0038 (.0965mm) 36.4 5.94
180X180 .0023 (.0584mm) .0033 (.0838mm) 34.7 6.7
200X200 .0021 (.0533mm) .0029 (.0737mm) 33.6 6.2
250X250 .0016 (.0406mm) .0024 (.0610mm) 36.0 4.4
270X270 .0016 (.0406mm) .0021 (.0533mm) 32.2 4.7
300X300 .0051 (.0381mm) .0018 (.0457mm) 29.7 3.04
325X325 .0014 (.0356mm) .0017 (.0432mm) 30.0 4.40
400X400 .0010 (.0254mm) .0015 (.370mm) 36.0 3.3
500X500 .0010 (.0254mm) .0010 (.0254mm) 25.0 3.8
Product Features
  • High-quality material wire
  • Standard wire diameter
  • Multiple mesh (aperture) options
  • Uniform structure
  • Acid-resistant
  • Alkali-resistant
  • Wear-resistant
  • Heat-resistant
  • Corrosion-resistant
  • Long service life
  • Non-curling
  • Strong package way
  • Easy to use and store
  • Suitable for shipping by air or by ocean
Packaging Options
  1. Inner paper tube with waterproof paper wrapping
  2. Strong plastic film wrapping
  3. Woven bag packaging
  4. Strong wooden box packaging
  5. Pallet loading
  6. Bulk loading

Custom packaging available

Applications

  1. Filter use
  2. Oil industry
  3. Petroleum industry
  4. Chemical industry
  5. Liquid and gas industry
  6. Mining industry
  7. Food industry
  8. Construction
SS304 150Mesh Stainless Steel Woven Wire Mesh for Chemical industry filter use

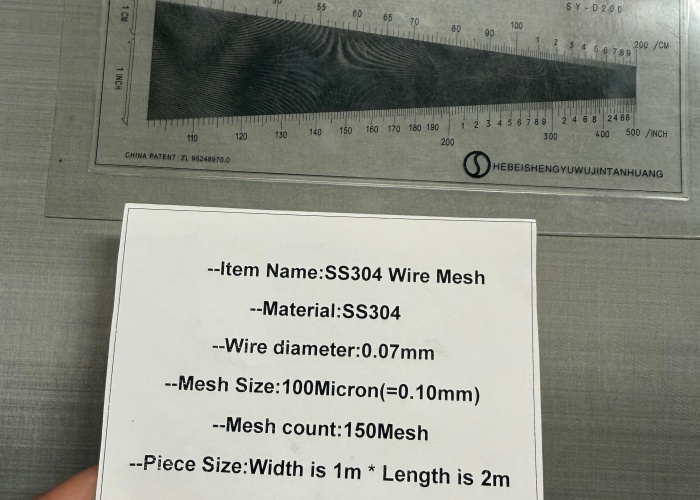

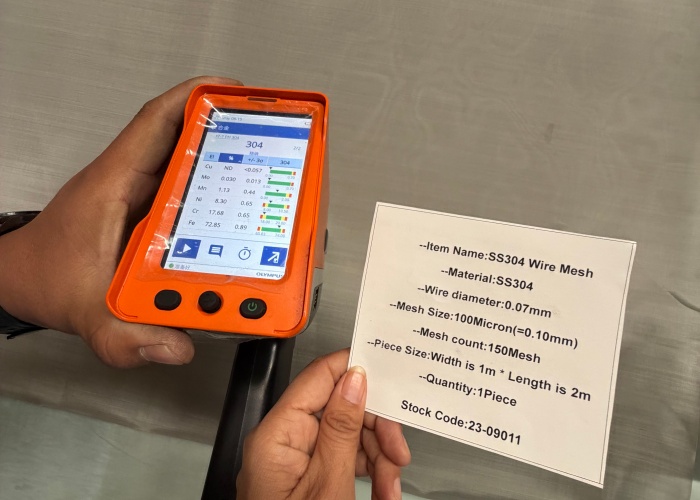

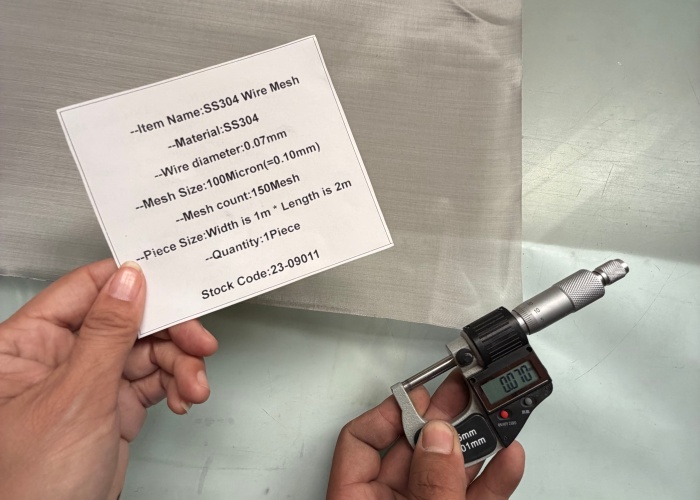

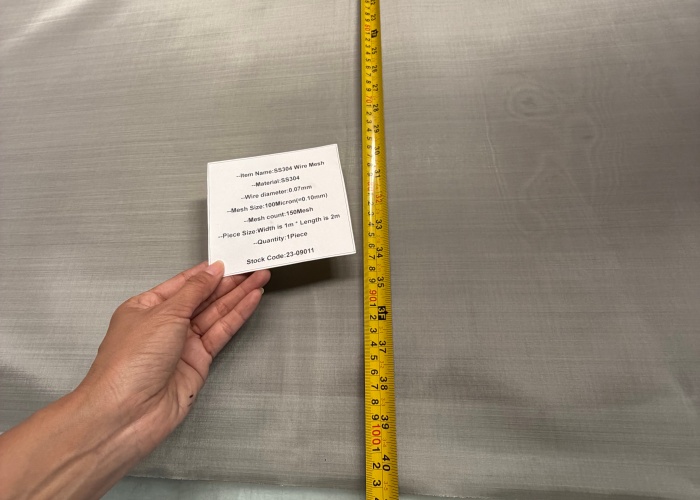

Show our product pictures:
SS304 150Mesh Stainless Steel Woven Wire Mesh for Chemical industry filter useSS304 150Mesh Stainless Steel Woven Wire Mesh for Chemical industry filter use
SS304 150Mesh Stainless Steel Woven Wire Mesh for Chemical industry filter useSS304 150Mesh Stainless Steel Woven Wire Mesh for Chemical industry filter useSS304 150Mesh Stainless Steel Woven Wire Mesh for Chemical industry filter use
