Stainless Steel Woven Wire Mesh 0.914m Width Square Aperture Roll
Stainless Steel Woven Wire Mesh 0.914m Width Square Aperture Roll
Stainless Steel Woven Wire Mesh 0.914m Width Square Aperture Roll
Stainless Steel Woven Wire Mesh 0.914m Width Square Aperture Roll
Stainless Steel Woven Wire Mesh 0.914m Width Square Aperture Roll
Stainless Steel Woven Wire Mesh 0.914m Width Square Aperture Roll
Stainless Steel Woven Wire Mesh 0.914m Width Square Aperture Roll
Stainless Steel Woven Wire Mesh 0.914m Width Square Aperture Roll
Specifications
Brand Name :
HANGSHUN
Model Number :
20mesh 40mesh 50mesh 60mesh 100mesh etc
Certification :
ISO9001
Place of Origin :
CHINA
MOQ :
28Rolls
Price :
USD3.55~USD6.88
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
162Rolls/Day
Delivery Time :
5Days
Packaging Details :
In wooden box, pallet or as your required
good features :
Wear-resisting high temperture resistance
Technique :
Woven type
Mesh count :
1-500mesh
sample :
as your need or required
Color :
Silver
width :
0.914m 1m 1.4m 1.5m 1.8m 2m 2.2m 2.5m
length :
30meters 40meters 50meters
hole shape :
square kind
Surface :
Clean,flat,brgiht
Feature :
Corrosion Resistance,Anti-corrosion
Sample :
Free supply
Special size :
Custom for you
Description
Stainless Steel Woven Wire Mesh Description:
Stainless Steel Woven Wire Mesh is choose high quality stainless steel wire woven by machine.With
different aperture and stabdard size.Normal hole size is square type,also can design for your need.

Stainless Steel Woven Wire Mesh Parameters details list:

Type
  1. Twill weave: Mainly in the 150 mesh to 600 purpose of stainless steel wire mesh weaving use.
  2. Plain weave: The most popular a kind of preparation method industrial production and civil life is widely used.
  3. Dutch weave: In this method the stainless steel wire mesh weaving has good tensile strength,mainly used for liquid and slurryfilter.
  4. as your required.

Processing:

1.Stainless steel covered edging mesh

2.Edge wrapping material: stainless steel plate.

3.Product shape:rectangular,square, round,elliptic, ring, rectangular, cap type, waist- shaped,

4.special -shaped.

Type
Mesh/Inch
Wire diameter
(inch)
OPen Area
Weight (LB) /100 Square Foot
Plain,Twill Weave Wire Mesh
1 × 1-635 × 635
0.0008"-0.08"
25 to 84.6
2.53 to 41.1
Type
Mesh/Inch
Wire diameter
(inch)
Absolute Filtration Finess µm
Nominal Filtration Finess µm
Plain Dutch Weave Wire Mesh
8 × 85-80 × 400
0.014'' × 0.0126''- 0.0049'' × 0.0028''
318-340 to 43-48
250-255 to 35-40
Twill Duntch Weave Wire Mesh
20 × 250 - 500 × 3200
0.0098'' × 0.0079'' - 0.0015'' × 0.0010''
110-120 to 8-9
98-105 to 2-3

Stainless Steel Woven Wire Mesh
Weave
Type		 Mesh
Count		 Wire Dia.
(Inch)		 Width of Opening
(Inch)		 Open Area
(%)		 Weigh Per 100 sq'
based on 304ss		 Opening
(Micron)
Plain 2 x 2 .063 .4370 76.4 51.7 11119
Plain 3 x 3 .0540 .2790 70.1 57.3 7099
Plain 4 x 4 .0470 .2030 65.9 58.2 5165
Plain 5 x 5 .0410 .1590 63.2 55.4 4046
Plain 6 x 6 .0320 .1350 65.6 20.7 3435
Plain 7 x 7 .0320 .1110 60.4 47.5 2824
Plain 8 X 8 .0250 .1000 64.0 32.9 2545
Plain 9 X 9 .0230 .0880 62.7 31.4 2239
Plain 10 x 10 .0250 .0750 56.3 41.6 1908
Plain 11 x 11 .0200 .0710 61.0 29.1 1807
Plain 12 x 12 .0200 .0630 57.2 31.9 1603
Plain 14 x 14 .0200 .0510 51.0 37.6 1298
Plain 16 x 16 .0180 .0445 50.7 34.8 1132
Plain 18 x 18 .0170 .0386 48.3 35.1 982
Plain 20 x 20 .0200 .0300 36.0 55.8 763
Plain 30 x 30 .0095 .0238 51.0 18.2 606
Plain 40 x 40 .0100 .0150 36.0 27.9 382
Plain 50 x 50 .0055 .0145 52.6 10.1 369
Plain 60 x 60 .0060 .0107 41.2 14.8 272
Plain 230 x 230 .0014 .0029 46.0 3.4 74
Plain 250 x 250 .0016 .0024 36.0 4.3 61
Twill 270 x 270 .0016 .0021 32.2 4.8 53
Plain 300 x 300 .0012 .0018 29.7 3 46
Twill 325 x 325 .0014 .0017 30.0 4.3 43
Twill 400 x 400 .0011 .0014 31.4 3.4 36
Twill 500 x 500 .0010 .0010 25.0 * 25
Twill 635 x 635 .0008 .0008 25.0 * 20
Stainless Steel Woven Wire Mesh Features:
  • Specifications - 5 mesh, 12" x 24"(30cmx60cm), 4.5mm hole, 0.7mm wire diameter
  • High Quality - woven wire mesh Made of SS304 industry standard stainless steel, long lasting and attractive ,
    no corrosion, no rust, strong, long lasting.
  • Easy to Use - use tin snip to cut into different shape and size,
  • Wide Application - Used for security mesh, construction and building meshes, fan guard mesh, fireplace screen
    mesh, foundation vent meshes, garden use mesh, gutter guard mesh, cabinets mesh, door screen mesh etc.
  • Tips - For facilitate transportation, 30*60 stainless steel wire mesh rolled into a tube shape, please make sure
    before purchasing, thanks for understanding.

Stainless Steel Woven Wire Mesh First choose reason:

  • Direct filtration.
  • Good permeability.
  • Uniform and stable precision.
  • Quick regeneration speed.
  • Good acid and alkali resistance.
  • Good temperature resistance.
  • High efficiency.
  • Long service life

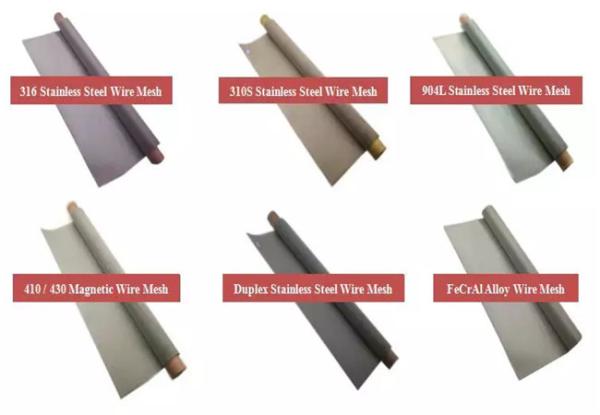

Stainless Steel Woven Wire Mesh product pictures for reference as follows:

Stainless Steel Woven Wire Mesh 0.914m Width Square Aperture RollStainless Steel Woven Wire Mesh 0.914m Width Square Aperture Roll
