150Mesh 0.07mm Wire diameter SS304 Stainless Steel Woven Wire Mesh for Liquid and gas industry
150Mesh 0.07mm Wire diameter SS304 Stainless Steel Woven Wire Mesh for Liquid and gas industry
150Mesh 0.07mm Wire diameter SS304 Stainless Steel Woven Wire Mesh for Liquid and gas industry
150Mesh 0.07mm Wire diameter SS304 Stainless Steel Woven Wire Mesh for Liquid and gas industry
150Mesh 0.07mm Wire diameter SS304 Stainless Steel Woven Wire Mesh for Liquid and gas industry
150Mesh 0.07mm Wire diameter SS304 Stainless Steel Woven Wire Mesh for Liquid and gas industry
Specifications
Sample :
Free sample can test and confirm quality
Model Number :
HS-260903
Key word :
SS304 Woven wire Mesh
Price :
USD18.73~USD19.25
Hole Shape :
Standard Square hole
Application :
Filter Liquid and gas industry use
Supply Ability :
2000SQM/day
Mesh(Aperture) :
100mesh,110mesh,120mesh,150mesh,200mesh,300mesh,400mesh,500mesh etc
Length :
1m 1.5m 2m 2.5m 3m 4m 5m 10m 15m 20m 25m 30m etc
MOQ :
150SQM
Delivery Time :
5-8days
Material :
SS304 stainless steel wire or custom
Color :
stainless steel original color or custom
Payment Terms :
T/T, Western Union, L/C
Weave types :
Plain Weave
Use time :
3years-6years
Certification :
ISO9001
Wire Diameter :
0.07mm or custom
Brand Name :
HANGSHUN
Product Name :
150Mesh 0.07mm Wire diameter SS304 Stainless Steel Woven Wire Mesh
Packaging Details :
In Pallet,In wooden box etc
Width :
0.55m 0.6m 0.8m 0.914m 1m 1.5m 1.6m 2m 2.1m 2.4m 3m 4m etc
Place of Origin :
CHINA
Type :
woven wire mesh
Description
150Mesh 0.07mm Wire diameter SS304 Stainless Steel Woven Wire Mesh for

Liquid and gas industry use

Product Description

Stainless steel woven wire mesh is made from high-quality stainless steel wire materials including SS304, SS316. Available in various weave styles with standard square holes, we can customize the width and length to meet your specific requirements.It can widely use for filter projects.

Detailed Specifications
Feature Details
Material SS304 stainless steel wire or custom
Wire Diameter 0.07mm or custom
Type woven mesh
Mesh(Aperture) 100mesh,110Mesh,120Mesh,150mesh,200mesh,300mesh,400mesh,500mesh etc
Hole shape Standard Square hole
Weave type Plain Weave
Color stainless steel original color or custom
Width Size 0.55m 0.6m 0.8m 0.914m 1m 1.5m 1.6m 2m 2.1m 2.4m 3m 4m etc
Length Size 1m 1.5m 2m 2.5m 3m 4m 5m 10m 15m 20m 25m 30m etc
Sample service Free sample can test and confirm quality
Application Liquid and gas industry
Use time 3years-6years
Mesh Specifications
Mesh/Inch Wire Diameter Aperture Open Area Weight(LB)/100 Square Foot
1x1 .080 (2.03mm) .920 (23.37mm) 84.6 41.1
2X2 .063 (1.60mm) .437 (11.10mm) 76.4 51.2
12X12 .020 (.508mm) .063 (1.60mm) 57.2 31.6
14X14 .023 (.584mm) .048 (1.22mm) 45.2 49.8
30X30 .009 (.229mm) .0243 (.62mm) 53.1 16.1
35X35 .011 (.279mm) .0176 (.45mm) 37.9 29.0
40X40 .010 (.254mm) .0150 (.38mm) 36.0 27.6
80X80 .0065 (.165mm) .0060 (.15mm) 23.0 23.2
100X100 .0035 (.089mm) .0065 (.17mm) 42.3 8.3
110X110 .0040 (.1016mm) .0051 (.1295mm) 30.7 12.4
120X120 .0037 (.0940mm) .0064 (.1168mm) 30.7 11.6
150X150 .0026 (.0660mm) .0041 (.1041mm) 37.4 7.1
160X160 .0025 (.0635mm) .0038 (.0965mm) 36.4 5.94
180X180 .0023 (.0584mm) .0033 (.0838mm) 34.7 6.7
200X200 .0021 (.0533mm) .0029 (.0737mm) 33.6 6.2
250X250 .0016 (.0406mm) .0024 (.0610mm) 36.0 4.4
270X270 .0016 (.0406mm) .0021 (.0533mm) 32.2 4.7
300X300 .0051 (.0381mm) .0018 (.0457mm) 29.7 3.04
325X325 .0014 (.0356mm) .0017 (.0432mm) 30.0 4.40
400X400 .0010 (.0254mm) .0015 (.370mm) 36.0 3.3
500X500 .0010 (.0254mm) .0010 (.0254mm) 25.0 3.8
Product Features
  • High-quality material wire
  • Standard wire diameter
  • Multiple mesh (aperture) options
  • Uniform structure
  • Acid-resistant
  • Alkali-resistant
  • Wear-resistant
  • Heat-resistant
  • Corrosion-resistant
  • Long service life
  • Non-curling
  • Strong package way
  • Easy to use and store
  • Suitable for shipping by air or by ocean
Packaging Options
  1. Inner paper tube with waterproof paper wrapping
  2. Strong plastic film wrapping
  3. Woven bag packaging
  4. Pallet loading
  5. Strong wooden box packaging
  6. Bulk loading

7.Custom packaging available

Applications

  1. Filter use
  2. Oil industry
  3. Food industry
  4. Petroleum industry
  5. Liquid and gas industry
  6. Mining industry
  7. Chemical industry
  8. Construction
150Mesh 0.07mm Wire diameter SS304 Stainless Steel Woven Wire Mesh for Liquid and gas industry

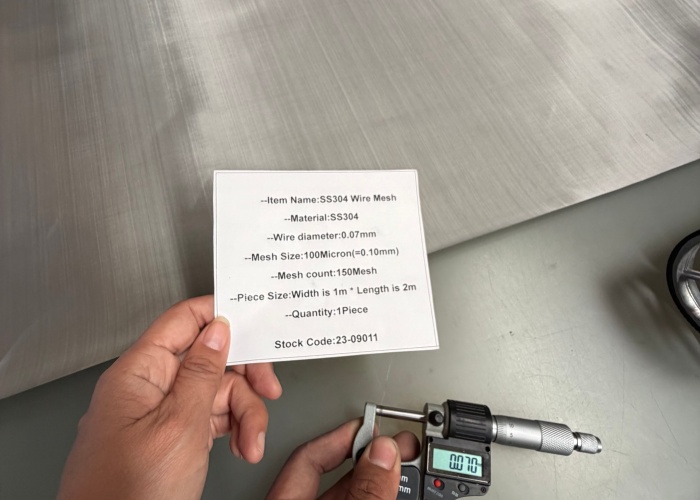

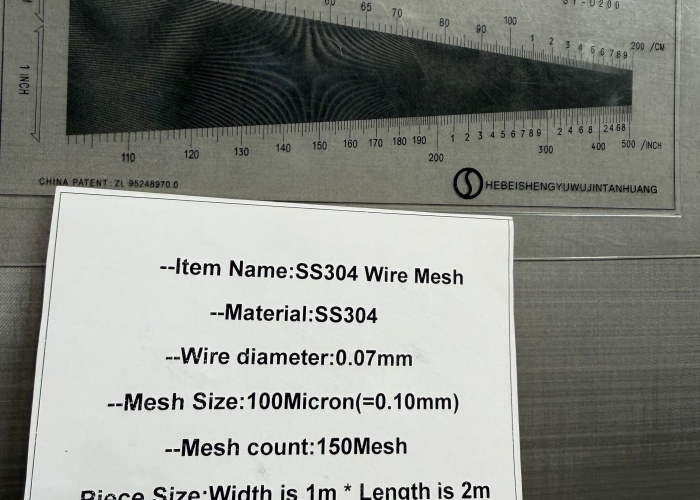

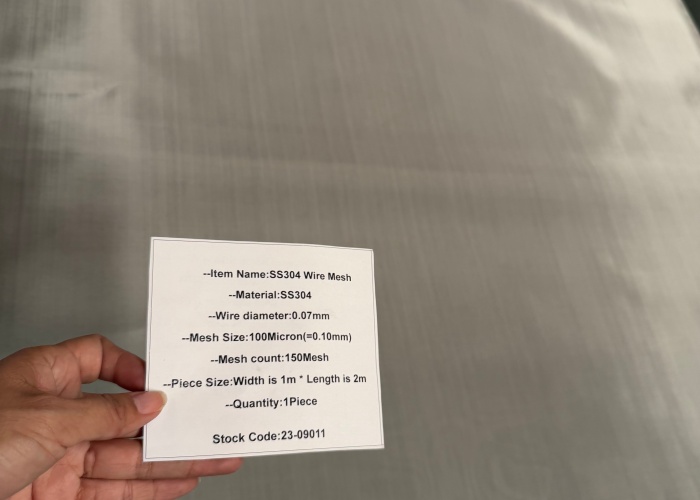

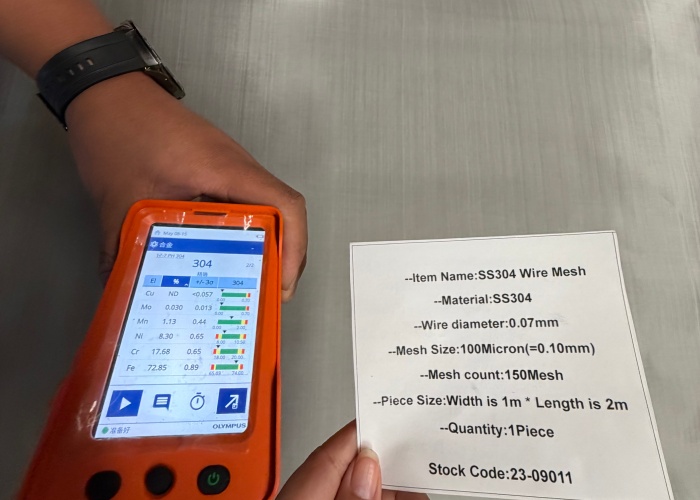

Show our product pictures:
150Mesh 0.07mm Wire diameter SS304 Stainless Steel Woven Wire Mesh for Liquid and gas industry150Mesh 0.07mm Wire diameter SS304 Stainless Steel Woven Wire Mesh for Liquid and gas industry150Mesh 0.07mm Wire diameter SS304 Stainless Steel Woven Wire Mesh for Liquid and gas industry
150Mesh 0.07mm Wire diameter SS304 Stainless Steel Woven Wire Mesh for Liquid and gas industry150Mesh 0.07mm Wire diameter SS304 Stainless Steel Woven Wire Mesh for Liquid and gas industry
