0.03mm Thickness 300Mesh SS304 Stainless Steel Woven Mesh for Construction use
0.03mm Thickness 300Mesh SS304 Stainless Steel Woven Mesh for Construction use
0.03mm Thickness 300Mesh SS304 Stainless Steel Woven Mesh for Construction use
0.03mm Thickness 300Mesh SS304 Stainless Steel Woven Mesh for Construction use
0.03mm Thickness 300Mesh SS304 Stainless Steel Woven Mesh for Construction use
0.03mm Thickness 300Mesh SS304 Stainless Steel Woven Mesh for Construction use
Specifications
Model Number :
HS-260906
Key word :
Woven Mesh
Supply Ability :
2000SQM/day
Mesh(Aperture) :
100mesh,200mesh,300mesh,400mesh,500mesh etc
Length :
1m 1.5m 2m 2.5m 3m 4m 5m 10m 15m 20m 25m 30m etc
MOQ :
150SQM
Delivery Time :
5-8days
Type :
woven mesh
Color :
stainless steel original color or custom
Payment Terms :
T/T, Western Union, L/C
Hole Shape :
Standard Square hole
Use time :
3years-6years
Price :
USD19.98~USD20.12
Weave types :
Plain Weave
Application :
Construction use
Sample :
Free sample can test and confirm quality
Certification :
ISO9001
Material :
SS304 stainless steel wire or custom
Brand Name :
HANGSHUN
Product Name :
0.03mm Thickness 300Mesh SS304 Stainless Steel Woven Mesh
Packaging Details :
In Pallet,In wooden box etc
Width :
0.55m 0.6m 0.8m 0.914m 1m 1.5m 1.6m 2m 2.1m 2.4m 3m 4m etc
Place of Origin :
CHINA
Wire Diameter :
0.03mm or custom
Description
0.03mm Thickness 300Mesh SS304 Stainless Steel Woven Mesh for Construction
use
Product Description

Stainless steel woven mesh is made from high-quality stainless steel wire materials including SS304, SS316. Available in various weave styles with standard square holes, we can customize the width and length to meet your specific requirements.It can widely use for filter projects.

Detailed Specifications
Feature Details
Material SS304 stainless steel wire or custom
Wire Diameter 0.03mm or custom
Type woven mesh
Mesh(Aperture) 100mesh,200mesh,300mesh,400mesh,500mesh etc
Hole shape Standard Square hole
Weave type Plain Weave
Color stainless steel original color or custom
Width Size 0.55m 0.6m 0.8m 0.914m 1m 1.5m 1.6m 2m 2.1m 2.4m 3m 4m etc
Length Size 1m 1.5m 2m 2.5m 3m 4m 5m 10m 15m 20m 25m 30m etc
Sample service Free sample can test and confirm quality
Application Construction use
Use time 3years-6years
Mesh Specifications
Mesh/Inch Wire Diameter Aperture Open Area Weight(LB)/100 Square Foot
1x1 .080 (2.03mm) .920 (23.37mm) 84.6 41.1
2X2 .063 (1.60mm) .437 (11.10mm) 76.4 51.2
12X12 .020 (.508mm) .063 (1.60mm) 57.2 31.6
14X14 .023 (.584mm) .048 (1.22mm) 45.2 49.8
30X30 .009 (.229mm) .0243 (.62mm) 53.1 16.1
35X35 .011 (.279mm) .0176 (.45mm) 37.9 29.0
40X40 .010 (.254mm) .0150 (.38mm) 36.0 27.6
80X80 .0065 (.165mm) .0060 (.15mm) 23.0 23.2
100X100 .0035 (.089mm) .0065 (.17mm) 42.3 8.3
110X110 .0040 (.1016mm) .0051 (.1295mm) 30.7 12.4
120X120 .0037 (.0940mm) .0064 (.1168mm) 30.7 11.6
150X150 .0026 (.0660mm) .0041 (.1041mm) 37.4 7.1
160X160 .0025 (.0635mm) .0038 (.0965mm) 36.4 5.94
180X180 .0023 (.0584mm) .0033 (.0838mm) 34.7 6.7
200X200 .0021 (.0533mm) .0029 (.0737mm) 33.6 6.2
250X250 .0016 (.0406mm) .0024 (.0610mm) 36.0 4.4
270X270 .0016 (.0406mm) .0021 (.0533mm) 32.2 4.7
300X300 .0051 (.0381mm) .0018 (.0457mm) 29.7 3.04
325X325 .0014 (.0356mm) .0017 (.0432mm) 30.0 4.40
400X400 .0010 (.0254mm) .0015 (.370mm) 36.0 3.3
500X500 .0010 (.0254mm) .0010 (.0254mm) 25.0 3.8
Product Features
  • High-quality material wire
  • Standard wire diameter
  • Uniform structure
  • Multiple mesh (aperture) options
  • Heat-resistant
  • Alkali-resistant
  • Acid-resistant
  • Wear-resistant
  • Corrosion-resistant
  • Non-curling
  • Long service life
  • Easy to use and store
  • Strong package way
  • Fast delivery time
  • Suitable for shipping by air or by ocean
Packaging Options
  1. Inner paper tube with waterproof paper wrapping
  2. Woven bag packaging
  3. Strong plastic film wrapping
  4. Strong wooden box packaging
  5. Pallet loading
  6. Bulk loading

7.Custom packaging available

Applications

  1. Filter use
  2. Petroleum industry
  3. Food industry
  4. Mining industry
  5. Oil industry
  6. Construction
  7. Chemical industry
  8. Liquid and gas industry
0.03mm Thickness 300Mesh SS304 Stainless Steel Woven Mesh for Construction use

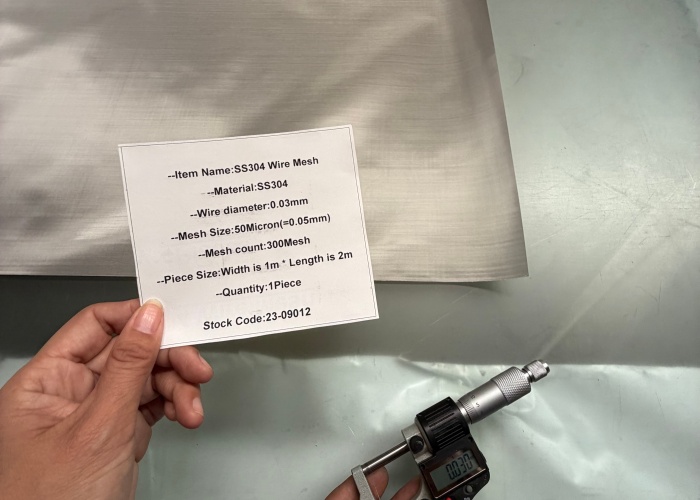

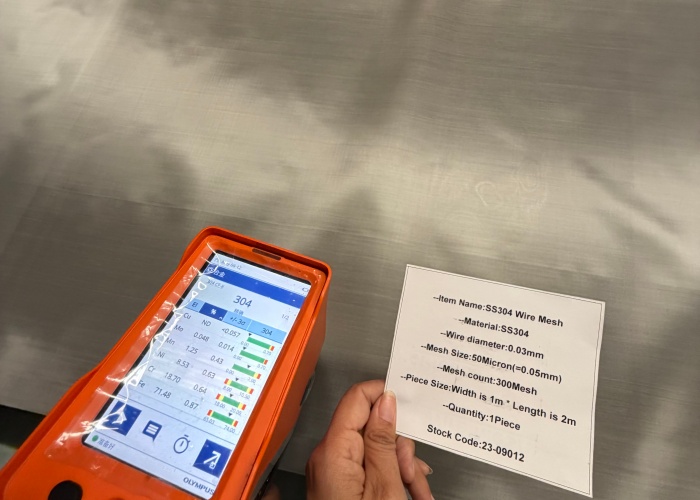

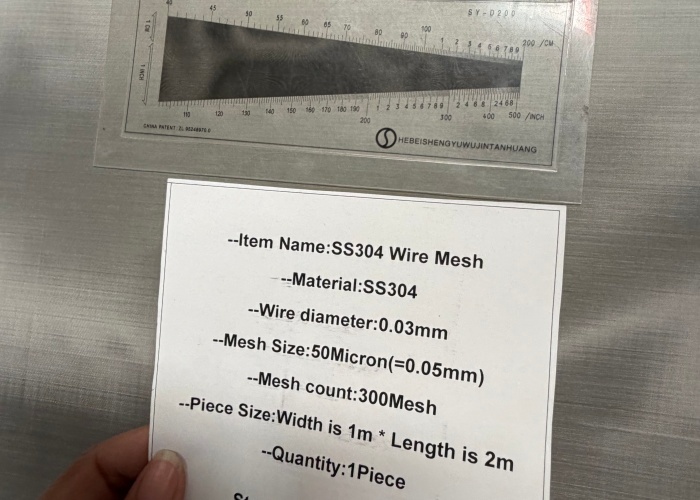

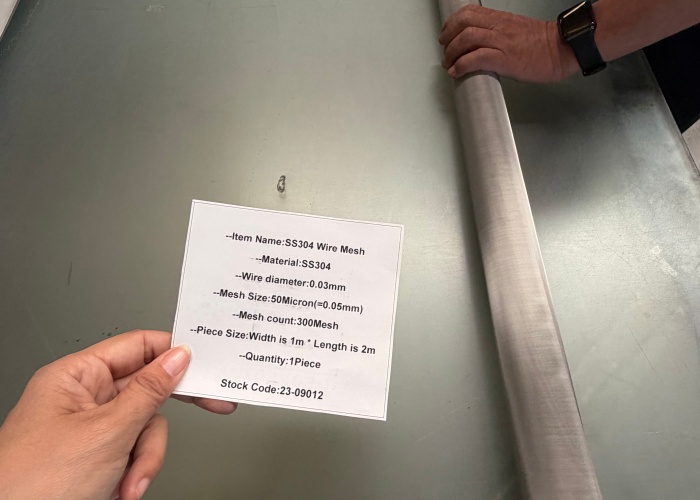

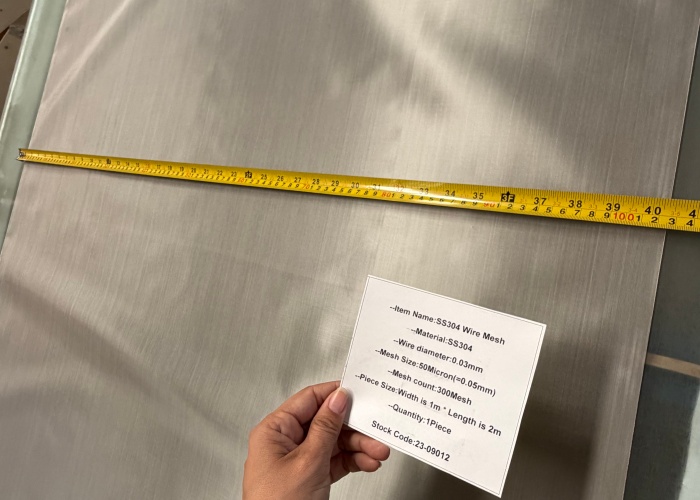

Show our product pictures:
0.03mm Thickness 300Mesh SS304 Stainless Steel Woven Mesh for Construction use0.03mm Thickness 300Mesh SS304 Stainless Steel Woven Mesh for Construction use0.03mm Thickness 300Mesh SS304 Stainless Steel Woven Mesh for Construction use0.03mm Thickness 300Mesh SS304 Stainless Steel Woven Mesh for Construction use
0.03mm Thickness 300Mesh SS304 Stainless Steel Woven Mesh for Construction use0.03mm Thickness 300Mesh SS304 Stainless Steel Woven Mesh for Construction use
