Alkali-Resistant Stainless Steel Woven Mesh SS304/SS316
Alkali-Resistant Stainless Steel Woven Mesh SS304/SS316
Alkali-Resistant Stainless Steel Woven Mesh SS304/SS316
Alkali-Resistant Stainless Steel Woven Mesh SS304/SS316
Alkali-Resistant Stainless Steel Woven Mesh SS304/SS316
Alkali-Resistant Stainless Steel Woven Mesh SS304/SS316
Specifications
Brand Name :
H&F
Model Number :
SSWM-006
Certification :
ISO-9001
Place of Origin :
Hebei, China
MOQ :
50 Square Meters
Price :
USD3.55~USD6.88
Payment Terms :
T/T, Western Union
Supply Ability :
10000 sqm per week
Delivery Time :
According to order quantity
Packaging Details :
Inside plastic film and outside wooden box
Product Name :
Stainless Steel Woven Wire Mesh
Key Word :
Stainless Steel Mesh
Wire Diameter :
0.2-1.5mm
Mesh Count :
10-80 mesh
Roll Width :
1m, 2m
Length :
30m, etc
Woven Type :
Plain weave, twill weave
Usage :
Sieves
Feature :
Alkali-resisting
Material :
SS304, SS316
Description

Alkali-resisting Stainless Steel Woven Wire Mesh For Pharmaceutical


Stainless Steel Woven Wire Mesh Description

The stainless steel wire mesh is made by weaving alternately the stainless steel warp wires and weft wires to form

a square opening or rectangular opening . Due to its own characteristics, the stainless steel mesh is wear resistance,

long service life,accurate mesh, uniform structure, no curl, easy to use, uniform screen thickness, anti static, anti-acid

and alkali resistance Corrosion.

Stainless Steel Woven Wire Mesh Specifications

Stainless Steel Woven Wire Mesh (Plain Weave)
mesh/inch wire diameter(mm) aperture(mm) - mesh/inch wire diameter(mm) aperture(mm)
2mesh 1.80 10.90 60mesh 0.15 0.273
3mesh 1.60 6.866 70mesh 0.14 0.223
4mesh 1.20 5.15 80mesh 0.12 0.198
5mesh 0.91 4.17 90mesh 0.11 0.172
6mesh 0.80 3.433 100mesh 0.10 0.154
8mesh 0.60 2.575 120mesh 0.08 0.132
10mesh 0.55 1.990 140mesh 0.07 0.111
12mesh 0.50 1.616 150mesh 0.065 0.104
14mesh 0.45 1.362 160mesh 0.065 0.094
16mesh 0.40 1.188 180mesh 0.053 0.088
18mesh 0.35 1.060 200mesh 0.053 0.074
20mesh 0.30 0.970 250mesh 0.04 0.061
26mesh 0.28 0.696 300mesh 0.035 0.049
30mesh 0.25 0.596 325mesh 0.03 0.048
40mesh 0.21 0.425 350mesh 0.03 0.042
50mesh 0.19 0.318 400mesh 0.25 0.0385

Stainless Steel Woven Wire Mesh Features

1) With excellent performance on acid-resisting, alkali-resisting and corrosion resisting.
2) With high intensity, abrasion resistant, ductility. High quality and Long service life.
3) High temperature oxidation resistance. Can filter in high temperature environment.
4) Cold processing, Diversify the usage of Metal Wire mesh.
5) Do not needsurface treatment, maintenance free.

Stainless Steel Woven Wire Mesh Applications

1. Used in Acid,Alkali environment screening mesh and filtration filter.

2. For a slurry net Petroleum industry.

3. Chemical fiber industry.

4. Filtering liquid and gas.

5. Used for Pharmaceutical, etc.



Product Show

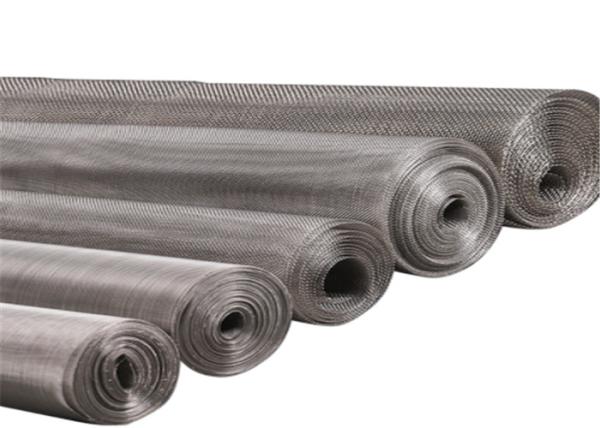

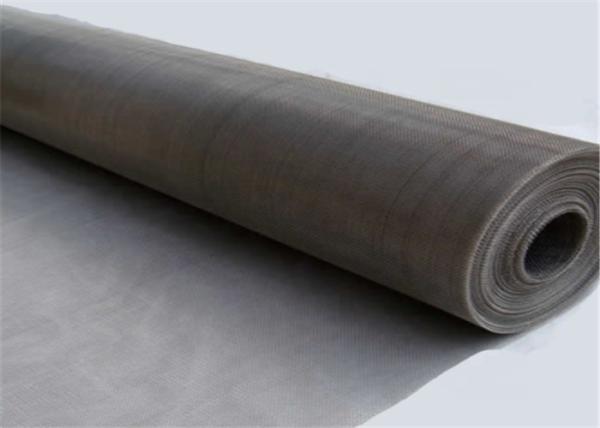

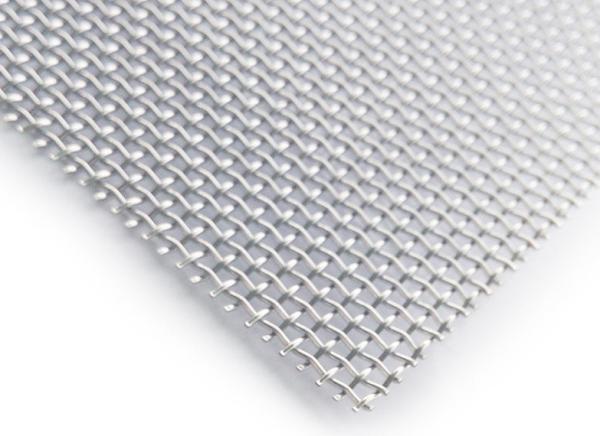

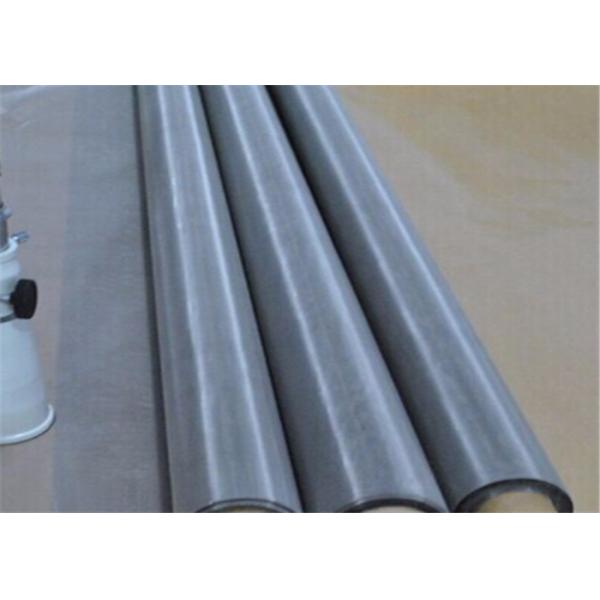

Alkali-Resistant Stainless Steel Woven Mesh SS304/SS316

Alkali-Resistant Stainless Steel Woven Mesh SS304/SS316


Packaging
Alkali-Resistant Stainless Steel Woven Mesh SS304/SS316

Our Company
Alkali-Resistant Stainless Steel Woven Mesh SS304/SS316Alkali-Resistant Stainless Steel Woven Mesh SS304/SS316
Alkali-Resistant Stainless Steel Woven Mesh SS304/SS316Alkali-Resistant Stainless Steel Woven Mesh SS304/SS316
