304 Stainless Steel Woven Wire Mesh 0.2mm to 10mm Openings
304 Stainless Steel Woven Wire Mesh 0.2mm to 10mm Openings
304 Stainless Steel Woven Wire Mesh 0.2mm to 10mm Openings
304 Stainless Steel Woven Wire Mesh 0.2mm to 10mm Openings
304 Stainless Steel Woven Wire Mesh 0.2mm to 10mm Openings
304 Stainless Steel Woven Wire Mesh 0.2mm to 10mm Openings
304 Stainless Steel Woven Wire Mesh 0.2mm to 10mm Openings
304 Stainless Steel Woven Wire Mesh 0.2mm to 10mm Openings
Specifications
Brand Name :
H&F
Model Number :
SSWM-010
Certification :
ISO-9001
Place of Origin :
Hebei, China
MOQ :
50 Square Meters
Price :
USD3.55~USD6.88
Payment Terms :
T/T, Western Union
Supply Ability :
10000 sqm per week
Delivery Time :
According to order quantity
Packaging Details :
Inside plastic film and outside wooden box
Product Name :
Stainless Steel 304 Wire Mesh Cloth
Material :
SS304
Wire Diameter :
0.1-1.5mm
Mesh Count :
2-100mesh
Roll Width :
0.5-2m
Length :
30m, etc
Woven Type :
Plain weave, etc
Usage :
Food Processing
Feature :
High intensity, abrasion resistant
Description
304 Stainless Steel Woven Wire Mesh Mesh Opening 0.2mm 0.5mm 1mm 10mm
Product Attributes
Attribute Value
Product Name Stainless Steel 304 Wire Mesh Cloth
Material SS304
Wire Diameter 0.1-1.5mm
Mesh Count 2-100mesh
Roll Width 0.5-2m
Length 30m, etc
Woven Type Plain weave, etc
Usage Food Processing
Feature High intensity, abrasion resistant
Product Description

Mesh Opening 0.2mm 0.5mm 1mm 10mm Stainless Steel 304 Wire Mesh Cloth

Stainless Steel Wire Mesh Weave Pattern/Style:

  1. Plain Weave: Also called tabby weave, linen weave or taffeta weave, is the most basic type of weaves. In plain weave, the warp and weft are aligned so they form a simple criss-cross pattern. Each weft thread crosses the warp threads by going over one, then under the next, and so on.
  2. Twill Weave: In a twill weave, each weft or filling yarn floats across the warp yarns in a progression of interlaces to the right or left, forming a distinct diagonal line. This diagonal line is also known as a wale.
  3. Plain Dutch Weave: Similar with plain weave, just the weft and warp wire have different wire diameter and different mesh size.
  4. Twill Dutch Weave: Similar with twill weave, just the weft and warp wire have different wire diameter and different mesh size.
  5. Reversed Dutch Weave: Difference from standard Dutch weave lies in the thicker warp wires and less weft wires.
Product Specifications

Stainless Steel Woven Wire Mesh (Plain Weave)

mesh/inch wire diameter(mm) aperture(mm) - mesh/inch wire diameter(mm) aperture(mm)
2mesh 1.80 10.90 60mesh 0.15 0.273
3mesh 1.60 6.866 70mesh 0.14 0.223
4mesh 1.20 5.15 80mesh 0.12 0.198
5mesh 0.91 4.17 90mesh 0.11 0.172
6mesh 0.80 3.433 100mesh 0.10 0.154
8mesh 0.60 2.575 120mesh 0.08 0.132
10mesh 0.55 1.990 140mesh 0.07 0.111
12mesh 0.50 1.616 150mesh 0.065 0.104
14mesh 0.45 1.362 160mesh 0.065 0.094
16mesh 0.40 1.188 180mesh 0.053 0.088
18mesh 0.35 1.060 200mesh 0.053 0.074
20mesh 0.30 0.970 250mesh 0.04 0.061
26mesh 0.28 0.696 300mesh 0.035 0.049
30mesh 0.25 0.596 325mesh 0.03 0.048
40mesh 0.21 0.425 350mesh 0.03 0.042
50mesh 0.19 0.318 400mesh 0.25 0.0385
Product Features
  • With excellent performance on acid-resisting, alkali-resisting and corrosion resisting.
  • With high intensity, abrasion resistant, ductility. High quality and Long service life.
  • High temperature oxidation resistance. Can filter in high temperature environment.
  • Cold processing, Diversify the usage of Metal Wire mesh.
  • Do not need surface treatment, maintenance free.
Product Applications

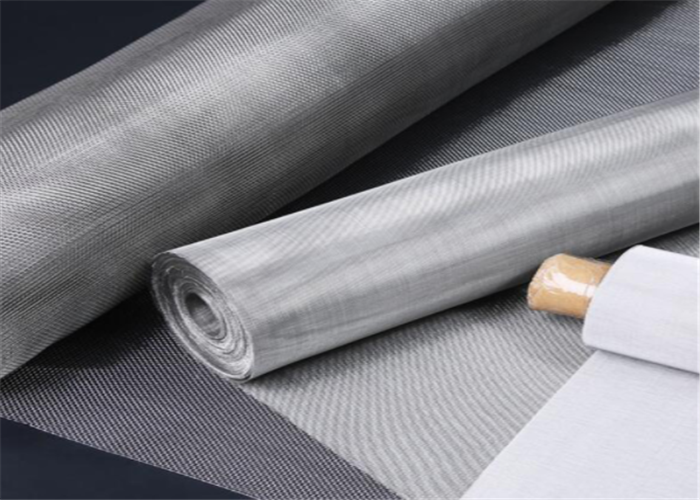

Product Show
304 Stainless Steel Woven Wire Mesh 0.2mm to 10mm Openings 304 Stainless Steel Woven Wire Mesh 0.2mm to 10mm Openings

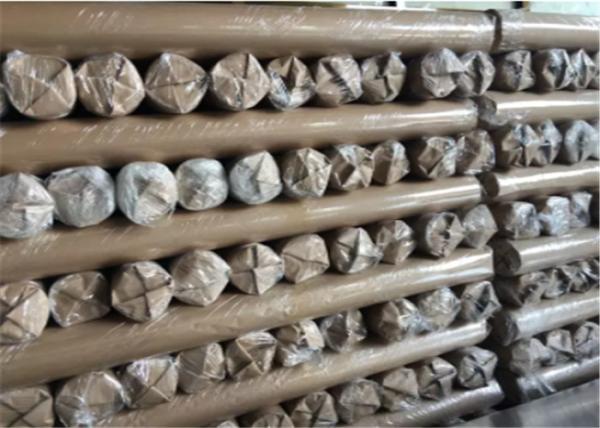

Packaging
304 Stainless Steel Woven Wire Mesh 0.2mm to 10mm Openings
Our Company
304 Stainless Steel Woven Wire Mesh 0.2mm to 10mm Openings 304 Stainless Steel Woven Wire Mesh 0.2mm to 10mm Openings 304 Stainless Steel Woven Wire Mesh 0.2mm to 10mm Openings 304 Stainless Steel Woven Wire Mesh 0.2mm to 10mm Openings
