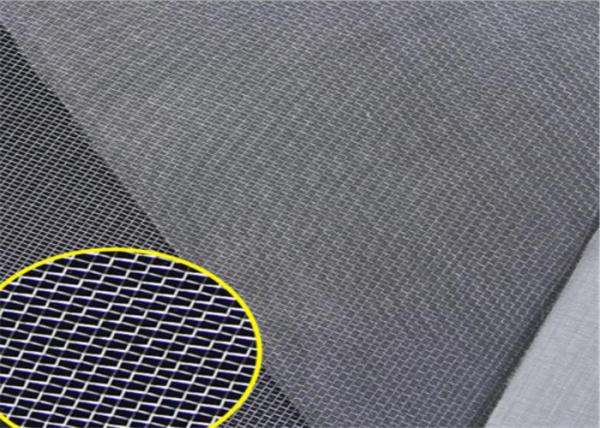

SS304 316 Stainless Steel Woven Mesh for Food Processing
SS304 316 Stainless Steel Woven Mesh for Food Processing
SS304 316 Stainless Steel Woven Mesh for Food Processing
SS304 316 Stainless Steel Woven Mesh for Food Processing
SS304 316 Stainless Steel Woven Mesh for Food Processing
SS304 316 Stainless Steel Woven Mesh for Food Processing
Specifications
Brand Name :
H&F
Model Number :
SSWM-009
Certification :
ISO-9001
Place of Origin :
Hebei, China
MOQ :
50 Square Meters
Price :
USD3.55~USD6.88
Payment Terms :
T/T, Western Union
Supply Ability :
10000 sqm per week
Delivery Time :
According to order quantity
Packaging Details :
Inside plastic film and outside wooden box
Product Name :
Stainless Steel Wire Mesh For Food Processing
Material :
SS304 316
Wire Diameter :
0.5-1.2mm
Mesh Count :
20 30 40mesh
Roll Width :
1-2m
Length :
30m, etc
Woven Type :
Plain weave, etc
Usage :
Food Processing
Feature :
Alkali-resisting
Description

1.2mm Thick Stainless Steel Wire Mesh For Food Processing



Product Description

The stainless steel wire mesh is made by weaving alternately the stainless steel warp wires and weft wires to form

a square opening or rectangular opening. It is extremely versatile and easy to install, so they can be used in a variety

of applications such as Chemical fiber industry, etc.

Product Features

1) With excellent performance on acid-resisting, alkali-resisting and corrosion resisting.


2) With high intensity, abrasion resistant, ductility. High quality and Long service life.


3) High temperature oxidation resistance. Can filter in high temperature environment.


4) Cold processing, Diversify the usage of Metal Wire mesh.


5) Do not needsurface treatment, maintenance free.

Product Specifications

Stainless Steel Woven Wire Mesh (Plain Weave)
mesh/inch wire diameter(mm) aperture(mm) - mesh/inch wire diameter(mm) aperture(mm)
2mesh 1.80 10.90 60mesh 0.15 0.273
3mesh 1.60 6.866 70mesh 0.14 0.223
4mesh 1.20 5.15 80mesh 0.12 0.198
5mesh 0.91 4.17 90mesh 0.11 0.172
6mesh 0.80 3.433 100mesh 0.10 0.154
8mesh 0.60 2.575 120mesh 0.08 0.132
10mesh 0.55 1.990 140mesh 0.07 0.111
12mesh 0.50 1.616 150mesh 0.065 0.104
14mesh 0.45 1.362 160mesh 0.065 0.094
16mesh 0.40 1.188 180mesh 0.053 0.088
18mesh 0.35 1.060 200mesh 0.053 0.074
20mesh 0.30 0.970 250mesh 0.04 0.061
26mesh 0.28 0.696 300mesh 0.035 0.049
30mesh 0.25 0.596 325mesh 0.03 0.048
40mesh 0.21 0.425 350mesh 0.03 0.042
50mesh 0.19 0.318 400mesh 0.25 0.0385

Product Applications

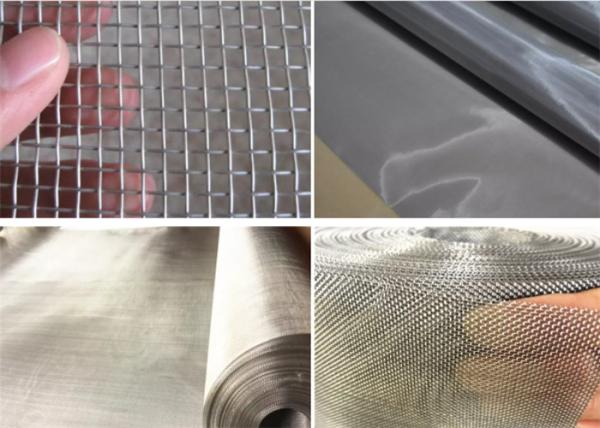

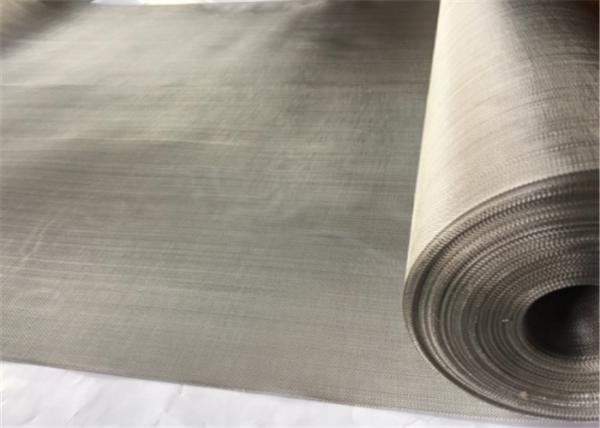

Product Show

SS304 316 Stainless Steel Woven Mesh for Food Processing


Packaging
SS304 316 Stainless Steel Woven Mesh for Food Processing

Our Company
SS304 316 Stainless Steel Woven Mesh for Food ProcessingSS304 316 Stainless Steel Woven Mesh for Food Processing
SS304 316 Stainless Steel Woven Mesh for Food ProcessingSS304 316 Stainless Steel Woven Mesh for Food Processing
