Specifications
Brand Name :
HANGSHUN
Model Number :
1mesh 2mesh 3mesh 4mesh 5mesh 8mesh 10mesh etc
Certification :
ISO9001
Place of Origin :
CHINA
MOQ :
100-300units
Price :
USD3.55~USD6.88
Payment Terms :
T/T, L/C, Western Union,Paypal
Supply Ability :
120Rolls/Week
Delivery Time :
7Days after receive the deposit
Packaging Details :
In Carton,Wooden box,Pallet or In Bulk
Material :
ss302,304,316,304L,316L.
weave kind :
Plain weave as your custom
Surface Color :
Bright silver
mesh Shape :
Square,Rectangle
mesh Type :
In sheet or roll
Packing Way :
In Carton,Wooden box,Pallet or In Bulk
width :
1m 1.2m 1.4m 1.8m etc
length :
10m 15m 20m 25m 30m etc
Description
120mesh Anti-rust Petroleum industry Stainless Steel Woven Wire Mesh
Description of Stainless steel woven wire mesh:

Stainless steel woven wire mesh is our machine weave in different types,like plain weave,twill weave,dutch

weave.Choose pure stainless steel wire high standard weave.make the stainless steel woven wire mesh

surface flat,smooth.Easy cut and in roll.And widely use in different industries.

Details of Stainless steel woven wire mesh:

Material
ss304L, ss306, ss310, ss316, ss316L,ss430
Mest count
plain weave can be woven from 1- 400 mesh
twill weave can be woven from 2- 635 mesh
dutch wevae can be woven up to 500*3500 mesh
Hole shape
square/round hole
Wire diameter
0.018-2.03mm
Stock size
1*30m/roll, 1.22*30m/roll, 1.5*30m/roll or customized

Material kinds of Stainless steel woven wire mesh:

304L stainless steel chemical composition(%)
C
Cr
Ni
Mn
P
S
Si
≤0.03
18-20
8-10
≤2
≤0.035
≤0.03
≤1
316L stainless steel chemical composition(%)
C
Cr
Ni
Mn
P
S
Mo
Si
≤0.03%
16-18%
12-15%
≤2%
≤0.035%
≤0.03%
2-3%
≤1%

Specification list of Stainless steel woven wire mesh:

Specification of Stainless Steel Woven Wire Mesh
S.W.G
Mesh
Wire Dia(mm)
Aperture(mm)
Weight(kg)
34#
32
0.234
0.56
0.84
34#
36
0.234
0.47
0.95
36#
38
0.193
0.48
0.70
36#
40
0.193
0.44
0.80
38#
50
0.152
0.36
0.58
40#
60
0.122
0.30
0.45
40#
80
0.120
0.198
0.58
42#
80
0.102
0.216
0.40
42#
100
0.100
0.154
0.50
44#
100
0.081
0.172
0.32
44#
120
0.081
0.130
0.39
45#
120
0.07
0.142
0.30
45#
130
0.07
0.125
0.325
45#
140
0.07
0.111
0.350
46#
140
0.06
0.121
0.252
46#
150
0.061
0.108
0.29
46.5#
150
0.055
0.115
0.06
46#
160
0.061
0.097
0.30
47#
160
0.050
0.109
0.2
47#
170
0.050
0.09
0.213
44#
180
0.051
0.09
0.24
47#
190
0.051
0.083
0.24
47#
200
0.051
0.077
0.27

Woven style of Stainless steel woven wire mesh:

  1. plain type
  2. twill type
  3. dutch twill
  4. reverse dutch
  5. five-heddle

Application of Stainless steel woven wire mesh:

  • Mesh Demister,
  • Oil&Gas Processor,
  • Internal Combustion Engine,
  • Dust Removing and Filtration etc.

Stainless steel woven wire mesh common shipping:


1.for small quantity, shipped by courier.
2.for large quantity, shiped by air or by sea.
3.tracking number will be emailed to you after order has been shipped.
4.If you have forwarder in China, we can send to your forwarder for free.

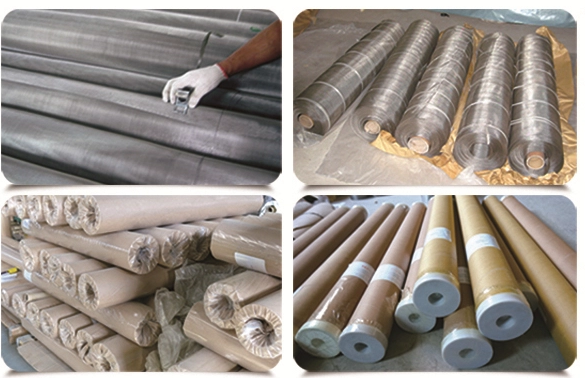

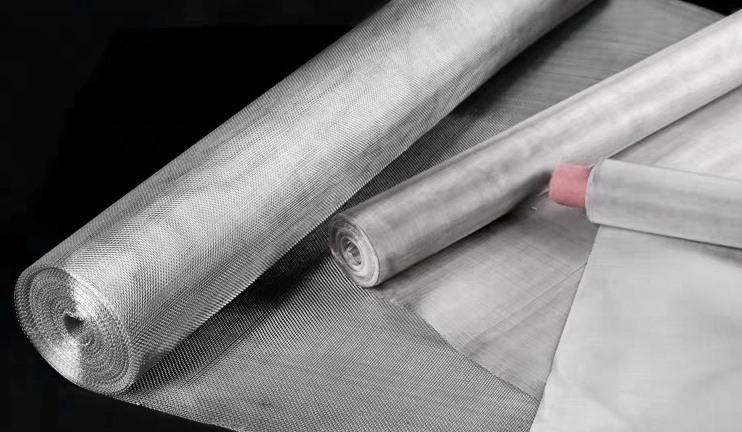

Show our Stainless steel woven wire mesh product pictures for reference as follows:

120 Mesh Stainless Steel Woven Wire Mesh for Petroleum Industry

120 Mesh Stainless Steel Woven Wire Mesh for Petroleum Industry
