20m Stainless Wire Cloth
20m Stainless Wire Cloth
20m Stainless Wire Cloth
20m Stainless Wire Cloth
20m Stainless Wire Cloth
20m Stainless Wire Cloth
20m Stainless Wire Cloth
20m Stainless Wire Cloth
Specifications
Brand Name :
HANGSHUN
Model Number :
10mesh 20mesh 30mesh 50mesh 60mesh 100mesh
Certification :
ISO9001
Place of Origin :
Anping,Hebei,China
MOQ :
15Rolls
Price :
USD3.55~USD6.88
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
165Rolls/Day
Delivery Time :
4Days
Packaging Details :
In wooden box, pallet or as your required
Filter Reting :
50%-80%
Wire Dia :
14#-50#
width range :
2' -10'
roll length :
20m 30m 40m 50m etc
wire type :
stainless steel wire 302 304 316 etc
Description
High temperature stainless steel wire cloth​:
High temperature stainless steel wire cloth details:
  • Material: stainless steel wire of SUS302 304 316 304L 316L
  • Weaving: Plain weave, twill weave ,dutch weave
  • Performance: Resistant to acid, alkali, temperature, abrasion etc.
  • Application: Most used in mine, petroleum, chemical, foodstuff, pharmaceutical, mechanical industries.
  • Customizations is also available.
  • Codes and specifications of stainless steel wire mesh

High temperature stainless steel wire cloth Mesh count:

  • Plain weave can be woven up to 400 mesh.
  • Twill weave can be woven from 400 to 635mesh.
  • Dutch weave can be woven up to 3500mesh

High temperature stainless steel wire cloth features:

  • Corrosion resistance.
  • Anti-acid and alkali
  • Anti-high temperture.
  • Good filter performance.
  • Long using life
High temperature stainless steel wire cloth application in different areas:
  • General industrial use
  • Quarrying
  • Mining
  • Beer brewing
  • Particle separation
  • Water filtration
  • Basket fabrication
  • Automotive
  • Refinery & oil field
  • Food processing
  • Aerospace
  • Scientific & laboratory use
High temperature stainless steel wire cloth list:
Material 200, 201, 202, 302, 304, 304L, 316, 316L
Color Sliver
Weaving Plain weave, Twill weave, Ducth weave
Advantages Heat-resisting, acid-resisting, wear-resisting, corrosion-resisting
Uses It is used in mine, petroleum, chemical industry, food industry, medicine etc.
Package Water proof paper inner side, then plastic film, weaving bag out side or as customer's request

High temperature stainless steel wire cloth
Mesh/inch Wire Diameter
(mm)		 Aperture
(mm)		 Mesh/inch Wire diameter
(mm)		 Aperture
(mm)
2mesh 1.80 10.90 60mesh 0.15 0.273
3mesh 1.60 6.866 70mesh 0.14 0.223
4mesh 1.20 5.15 80mesh 0.12 0.198
5mesh 0.91 4.17 90mesh 0.11 0.172
6mesh 0.80 3.433 100mesh 0.10 0.154
8mesh 0.60 2.575 120mesh 0.08 0.132
10mesh 0.55 1.990 140mesh 0.07 0.111
12mesh 0.50 1.616 150mesh 0.065 0.104
14mesh 0.45 1.362 160mesh 0.065 0.094
16mesh 0.40 1.188 180mesh 0.053 0.088
18mesh 0.35 1.060 200mesh 0.053 0.074
20mesh 0.30 0.970 250mesh 0.04 0.061
26mesh 0.28 0.696 300mesh 0.035 0.049
30mesh 0.25 0.596 325mesh 0.03 0.048
40mesh 0.21 0.425 350mesh 0.03 0.042
50mesh 0.19 0.318 400mesh 0.025 0.0385
Width of Stainless Steel Wire Mesh: 0.6m-8m

Stainless steel wire mesh

Stainless steel woven wire mesh

Stainless steel dutch woven wire mesh

Stainless wire mesh

Filter Mesh

Stainless Steel wire screen

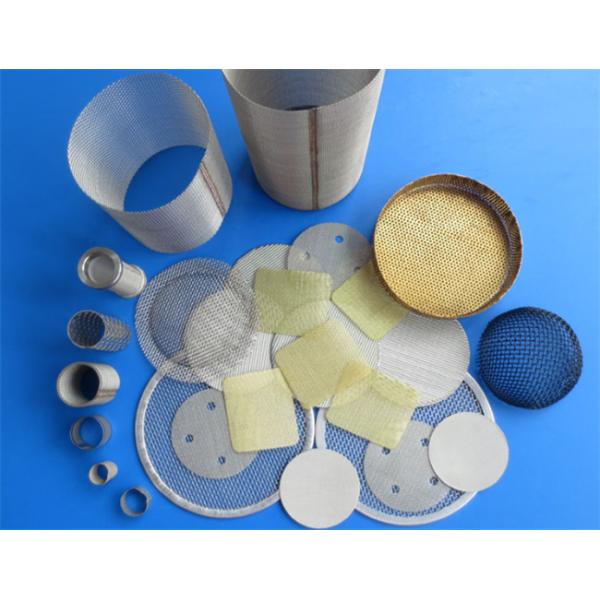

High temperature stainless steel wire cloth product pictures for reference as follows:

20m Stainless Wire Cloth
