SS304 Stainless Steel Woven Wire Mesh 200mesh Corrosion Resistant
SS304 Stainless Steel Woven Wire Mesh 200mesh Corrosion Resistant
SS304 Stainless Steel Woven Wire Mesh 200mesh Corrosion Resistant
SS304 Stainless Steel Woven Wire Mesh 200mesh Corrosion Resistant
SS304 Stainless Steel Woven Wire Mesh 200mesh Corrosion Resistant
SS304 Stainless Steel Woven Wire Mesh 200mesh Corrosion Resistant
Specifications
Brand Name :
HANGSHUN
Model Number :
12mesh
Certification :
ISO9001
Place of Origin :
CHINA
MOQ :
80Sheets
Price :
USD3.55~USD6.88
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
2060Sheets/day
Delivery Time :
5-8days
Packaging Details :
In pallet or bulk
Product Name :
200mesh SS304 stainless steel wire woven net
Type :
woven net
Wire Diameter :
0.005mm-4.0mm or custom
Material :
SS302 or custom your special material
Weave types :
Plain Weave or twill weave
Color :
stainless steel original color or custom
Hole Shape :
Standard Square hole
Mesh(Aperture) :
100mesh,200mesh,250mesh,300mesh,400mesh,500mesh etc
Length :
1m 1.5m 2m 2.5m 3m 4m 5m 10m 15m 20m 25m 30m etc
Width :
0.55m 0.6m 0.8m 0.914m 1m 1.5m 1.6m 2m 2.1m 2.4m 3m 4m etc
Sample :
Free Sample
Advantages :
corrosion resistant and waterproof
Description
200mesh SS304 Stainless Steel Woven Wire Mesh Net 0.55m-4m Width
Product Specifications
Attribute Value
Product Name 200mesh SS304 stainless steel wire woven net
Type woven net
Wire Diameter 0.005mm-4.0mm or custom
Material SS302 or custom your special material
Weave types Plain Weave or twill weave
Color stainless steel original color or custom
Hole Shape Standard Square hole
Mesh(Aperture) 100mesh,200mesh,250mesh,300mesh,400mesh,500mesh etc
Length 1m 1.5m 2m 2.5m 3m 4m 5m 10m 15m 20m 25m 30m etc
Width 0.55m 0.6m 0.8m 0.914m 1m 1.5m 1.6m 2m 2.1m 2.4m 3m 4m etc
Sample Free Sample
Advantages corrosion resistant and waterproof
Product Description

200mesh SS304 stainless steel wire woven net is made from high-quality stainless steel materials including SUS302, SUS304, SUS304L, SUS316, and SUS316L. Available in various weave styles with standard square holes, we can customize the width and length to meet your specific requirements.

Detailed Specifications
Feature Details
Material SS302 or custom your special material
Wire Diameter 0.005mm-4.0mm or custom
Mesh(Aperture) 100mesh,200mesh,250mesh,300mesh,400mesh,500mesh etc
Hole shape Standard Square hole
Weave type Plain Weave or twill weave
Color stainless steel original color or custom
Width Size 0.55m 0.6m 0.8m 0.914m 1m 1.5m 1.6m 2m 2.1m 2.4m 3m 4m etc
Length Size 1m 1.5m 2m 2.5m 3m 4m 5m 10m 15m 20m 25m 30m etc
Sample service free sample
Mesh Specifications
Mesh/Inch Wire Diameter Aperture Open Area Weight(LB)/100 Square Foot
1x1 .080 (2.03mm) .920 (23.37mm) 84.6 41.1
2X2 .063 (1.60mm) .437 (11.10mm) 76.4 51.2
12X12 .020 (.508mm) .063 (1.60mm) 57.2 31.6
14X14 .023 (.584mm) .048 (1.22mm) 45.2 49.8
30X30 .009 (.229mm) .0243 (.62mm) 53.1 16.1
35X35 .011 (.279mm) .0176 (.45mm) 37.9 29.0
40X40 .010 (.254mm) .0150 (.38mm) 36.0 27.6
80X80 .0065 (.165mm) .0060 (.15mm) 23.0 23.2
100X100 .0035 (.089mm) .0065 (.17mm) 42.3 8.3
110X110 .0040 (.1016mm) .0051 (.1295mm) 30.7 12.4
120X120 .0037 (.0940mm) .0064 (.1168mm) 30.7 11.6
150X150 .0026 (.0660mm) .0041 (.1041mm) 37.4 7.1
160X160 .0025 (.0635mm) .0038 (.0965mm) 36.4 5.94
180X180 .0023 (.0584mm) .0033 (.0838mm) 34.7 6.7
200X200 .0021 (.0533mm) .0029 (.0737mm) 33.6 6.2
250X250 .0016 (.0406mm) .0024 (.0610mm) 36.0 4.4
270X270 .0016 (.0406mm) .0021 (.0533mm) 32.2 4.7
300X300 .0051 (.0381mm) .0018 (.0457mm) 29.7 3.04
325X325 .0014 (.0356mm) .0017 (.0432mm) 30.0 4.40
400X400 .0010 (.0254mm) .0015 (.370mm) 36.0 3.3
500X500 .0010 (.0254mm) .0010 (.0254mm) 25.0 3.8
Product Features
  • High-quality material wire
  • Standard wire diameter
  • Multiple mesh (aperture) options
  • Wear-resistant
  • Heat-resistant
  • Corrosion-resistant
  • Acid-resistant
  • Alkali-resistant
  • High strength
  • Long service life
  • Uniform structure
  • Non-curling
  • Easy to use and store
Custom Width Options
SS304 Stainless Steel Woven Wire Mesh 200mesh Corrosion Resistant

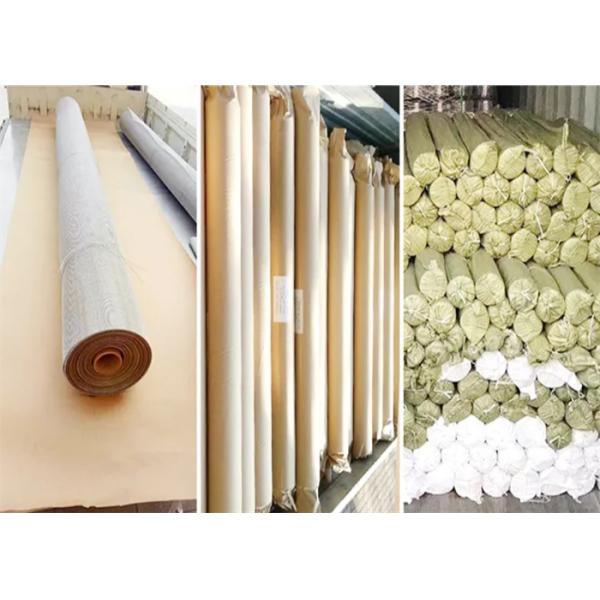

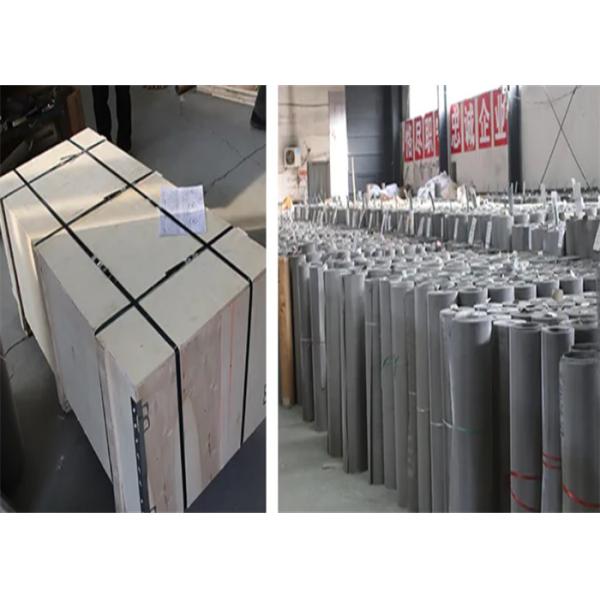

Packaging Options
  1. Inner paper tube with waterproof paper wrapping
  2. Strong plastic film wrapping
  3. Woven bag packaging
  4. Strong wooden box packaging
  5. Pallet loading
  6. Bulk loading
  7. Custom packaging available
SS304 Stainless Steel Woven Wire Mesh 200mesh Corrosion Resistant SS304 Stainless Steel Woven Wire Mesh 200mesh Corrosion Resistant
Industrial Applications
  1. Oil industry
  2. Petroleum industry
  3. Chemical industry
  4. Liquid and gas industry
  5. Mining industry
  6. Food industry
  7. Construction
SS304 Stainless Steel Woven Wire Mesh 200mesh Corrosion Resistant
Product Gallery
SS304 Stainless Steel Woven Wire Mesh 200mesh Corrosion Resistant SS304 Stainless Steel Woven Wire Mesh 200mesh Corrosion Resistant
Weave Styles
  1. Plain weave
  2. Twill weave
  3. Dutch weave
  4. Dutch twill weave
SS304 Stainless Steel Woven Wire Mesh 200mesh Corrosion Resistant
