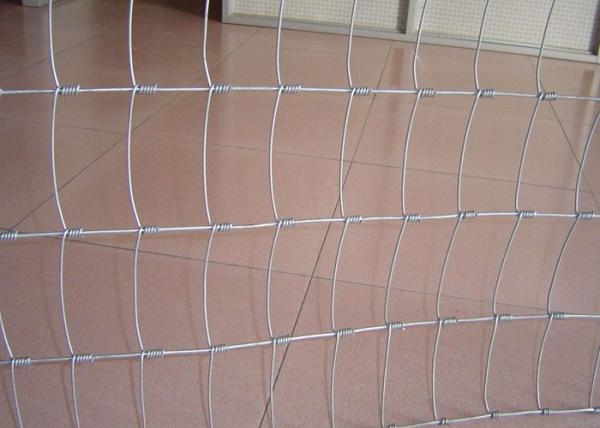

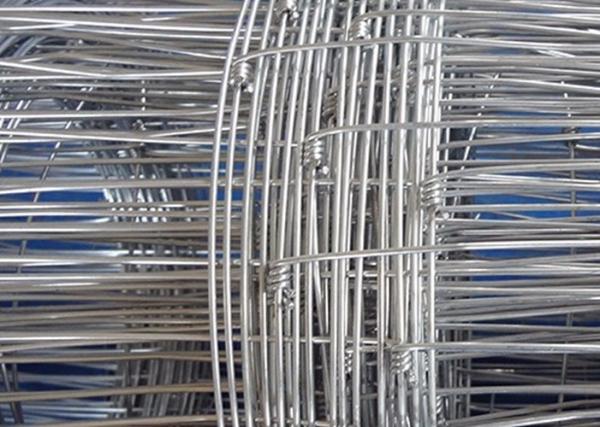

Hinge Joint Cattle Wire Fence High Strength For Protecting Farmland
Hinge Joint Cattle Wire Fence High Strength For Protecting Farmland
Hinge Joint Cattle Wire Fence High Strength For Protecting Farmland
Hinge Joint Cattle Wire Fence High Strength For Protecting Farmland
Hinge Joint Cattle Wire Fence High Strength For Protecting Farmland
Hinge Joint Cattle Wire Fence High Strength For Protecting Farmland
Specifications
Brand Name :
BROS
Model Number :
Bros-0909
Certification :
ISO9001:2008
Place of Origin :
China
MOQ :
10 rolls
Payment Terms :
L/C, T/T
Supply Ability :
300 rolls per week
Delivery Time :
Shipped in 20 days after payment
Packaging Details :
Packed with plastic paper and then wooden pallet
Product name :
Hinge Joint Fencing
Wire Diameter :
1.6-3.0mm
Vertical wire distance :
7.5cm, 15cm, 30cm
The top and bottom wire :
2.0-3.7mm
Mesh Height :
2.0m, or as your request
Mesh Length :
50m,100m, 150m
Surface treatment: Electro Galvanized/Hot dipped ga :
Electro or Hot dipped galvanized
Type :
Weaving Mesh
Description

Hinge Joint Fencing For Protecting Farmland / Field Fence / Grassland Fence

Product Description

Hinge joint fence is always called farm fencing. Hinged tensile field fence are mainly used for grassland, breeding, forestry, site fencing, isolation of sites or projects. And protecting his jumping animals likedeers, horses and cow, sheep and goat. So , the product shave a wide range of applications (animals fields, farmland, lawns and gardens)

Material: low carbon electric galvanized wire, low carbon hot dipped galvanized iron wire,

high carbon hot dipped galvanized wire, high strength galvanized steel wire.


Zinc coating: normally 60-100g per square meter, max 230-240g per square meter.


Tensile strength: horizontal wire: 80-90kgs mm2, vertical wire: 40-50 kgsmm2.


Type of vertical wire: folded and straight.


Length: 165 inch (50m) or 330 inch (100m).

Hinge joint fence, Deer fence, Farm fence, Cattle fence
Material High-strength galvanized iron wire; High-strength zinc plated steel
Mesh (cm) 15-14-13-11-10-8-6(longitude); (cm)15-18-20-40-50-60-65(woof)
Height 0.8m, 0.9m, 1.0m, 1.1m, 1.2m, 1.5m, 1.6m, 1.8m, 2.0m, 2.4m
Length 115feet (50m), 330feet (100m)
Top and bottom wire diameter 2.0 – 3.7mm
In wire diameter 1.8 – 2.5mm
Volume diameter 270mm (50m/roll)
However, the mesh, height, length, volume diameter can be available


No.

Type

Specification

 Unit
Weight		 Dia(top&bottom) Dia.
(inner)		 Dia.
(roll)
kgs mm mm mm
1 7/150/813/50 102+114+127+140+152+178 19.3 2.5 2.0 250
2 8/150/813/50 89+89+102+114+127+140+152 20.8 2.5 2.0 250
3 8/150/902/50 89+102+114+127+140+152+178 21.6 2.5 2.0 250
4 8/150/1016/50 102+114+127+140+152+178+203 22.6 2.5 2.0 250
5 8/150/1143/50 114+127+140+152+178+203+229 23.6 2.5 2.0 250
6 9/150/991/50 89+89+102+114+127+140+152+178 23.9 2.5 2.0 250
7 9/150/1245/50 102+114+127+140+152+178+203+229 26 2.5 2.0 250
8 10/150/1194/50 89+89+102+114+127+140+152+178+203 27.3 2.5 2.0 250
9 10/150/1134/50 89+102+114+127+140+152+178+203+229 28.4 2.5 2.0 250
10 11/150/1422/50 89+89+102+114+127+140+152+178+203+229 30.8 2.5

Advantage & Features

Farm fence simple in structure

Easy maintenance

Short installation period

Less weight, easy for transport and good ventilation

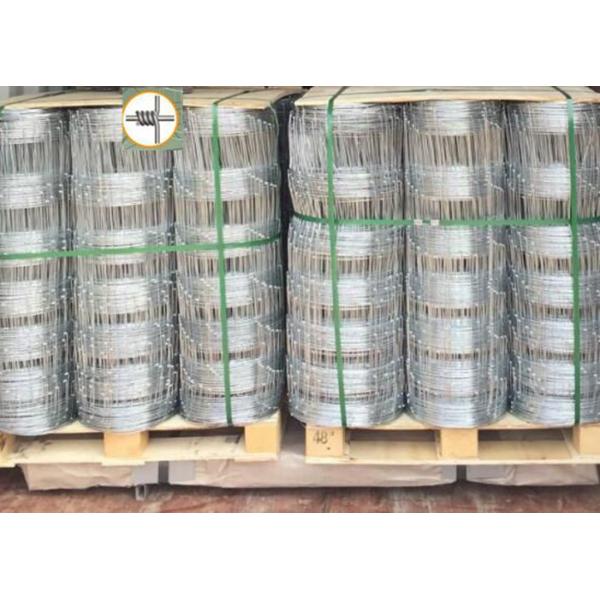

Packing

1. Water proof paper inside and plastic outside, and then loading wooden pallet.
2. According to customers' requirement.

Hinge Joint Cattle Wire Fence High Strength For Protecting Farmland

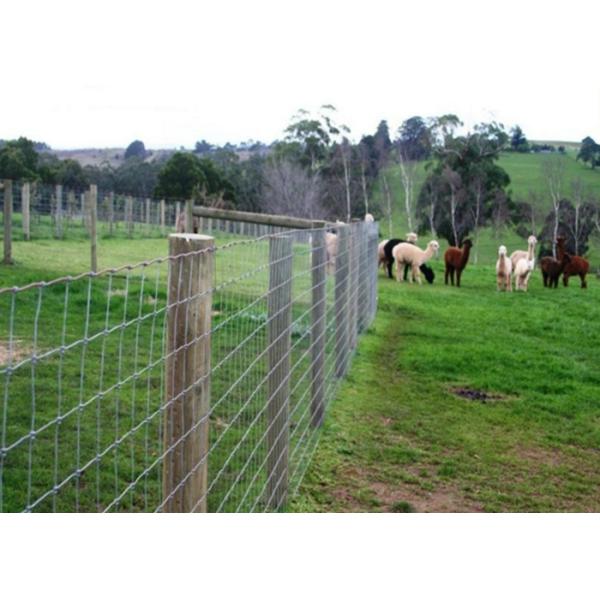

Widely Used

Hinge Joint Fencing is a kind of mesh fence used in cattle, goat, deer, and pig. It is used for grassland, pastures, protection of ecological projects, protecting grassland, forestry, highway, and environments.

Hinge Joint Cattle Wire Fence High Strength For Protecting Farmland
