Galvanized 5 FT Fixed Knot Woven Wire , Livestock Wire Fencing Panels
Galvanized 5 FT Fixed Knot Woven Wire , Livestock Wire Fencing Panels
Galvanized 5 FT Fixed Knot Woven Wire , Livestock Wire Fencing Panels
Galvanized 5 FT Fixed Knot Woven Wire , Livestock Wire Fencing Panels
Specifications
Brand Name :
BROS
Model Number :
Bros-0928
Certification :
ISO9001:2008
Place of Origin :
China
MOQ :
20 rolls
Payment Terms :
L/C, T/T
Supply Ability :
350 rolls per week
Delivery Time :
5-20 days after we got your payment
Packaging Details :
General is wrapped with plastic film. Then In bulk or In pallet. Also can some rolls in baling. As your reuqired.
Product Name :
Galvanized Fixed Knot Field Fence
Wire diameter :
1.8-2.5mm
Height :
0.8m,1.0m,1.2m,1.5m,1.7m,2.0m or according to customer's request
Length :
20m-200m or according to customer's request.
Edge wire diameter :
2.0mm~3.2m
Surface treatment: Electro Galvanized/Hot dipped ga :
Electro or Hot dipped galvanized
Aperture :
2"×3",3"×3",2"×4",4"×4",etc
Application :
:Used for borders in fields and grassland for breeding cattle,deer and other
Description

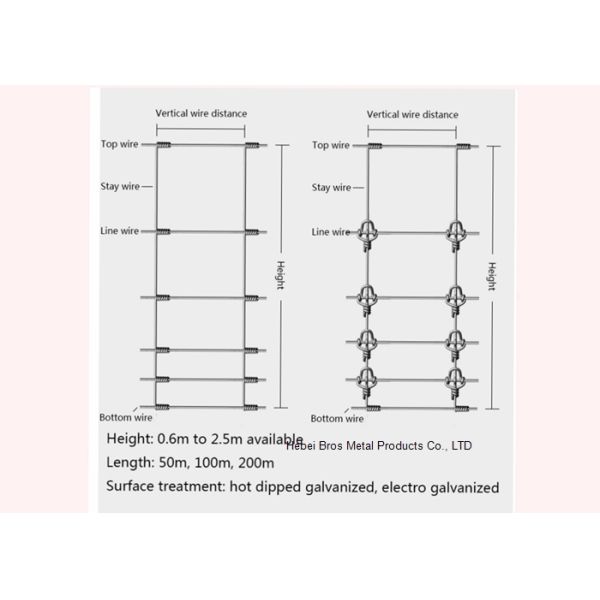

Galvanized 5 FT Fixed Knot Farm Fence, Woven Cattle Wire Fence Panels

Fixed knot farm fence can be used with stakes,wood timber and other post. Made of high tensile steel wire, this kind of wire fence is strong for keeping and breeding animals.
Height range: from 0.6m to 2.45m. Common is 1.2m, 1.5m and 1.8m.
Knot type: Hinge joint type, fixed knot type.
Main market:Malaysia, Australia, Peru, North America and Africa.


1. ---Materials: High quality high carbon steel wire,low carbon steel wire.
2. --Wire diameter:
Inner wire(mesh wire):1.8mm-2.5mm
Top/bottom wire diameter:2.0mm-3.5mm
Edge wire diameter: 2.0mm~3.2mm (Node wires: 2.24mm)
3.--Mesh(grid cell) Wide: 2inch(50mm) wide, 4inch(100mm) wide; 6inch(50mm) wide
4. --Total Height: from 3 feet to 8 feet tall.
-Each Roll Length:15.24 feet(50m) or 30.48 feet(100m),or as you required.
5.---These mesh is different from the bottom to the top. The bottom mesh is 3.5inch tall and the top mesh height is 8inch tall. But each mesh has the same wide(2 inch).
6.---The Cattle Fence is fixed with the T Type Steel Post(length have 45cm,90cm,135cm,150cm,165cm,180cm,240cm), making your goat farming fence stronger and more beautiful.

Specification

Specification mesh Gross Weight
(kg)		 Set and bottom silk Diameter
(mm)		 In silk
Diameter
(mm)
Type Specification
7/150/813/50 102+114+127+140+152+178 19.3 2.5 2.0
8/150/813/50 89(75)+89+102+114+127+140+152 20.8 2.5 2.0
8/150/902/50 89+102+114+127+140+152+178 21.6 2.5 2.0
8/150/1016/50 102+114+127+140+152+178+203 22.6 2.5 2.0
8/150/1143/50 114+127+140+152+178+203+229 23.6 2.5 2.0
9/150/991/50 89(75)+89+102+114+127+140+152+178 23.9 2.5 2.0
9/150/1245/50 102+114+127+140+152+178+203+229 26.0 2.5 2.0
10/150/1194/50 89(75)+89+102+114+127+140+152+178+203 27.3 2.5 2.0
10/150/1334/50 89+102+114+127+140+152+178+203+229 28.4 2.5 2.0
11/150/1422/50 89(75)+89+102+114+127+140+152+178+203+229 30.8 2.5 2.0

Packing

1) In bulk, plastic Film Wrapped:It can keep the product from the rain and moisture immersion
2) Pallet loading: All the fence export are equipped with pallets, loading and unloading by the forklift, avioding the scratch and deformation by the manual handling in bulk.

The Feature of Fixed Knot fence

---Novelty structure, firmly and exactitude, flat mesh surface, equality mesh, good toughness, never hold together, skid proof, strut, anti-rust,hurricane lamp.
--Wide range of applications: For wild cattle fences, horses fencing, big game hunting grounds
---Long life and Easy installation.

Application

1.Livestock fencing and confinement 2.Crop protection.

3.Erosion control silt fence backing 4.Garden fencing.

5.Land fencing and side line dividers.
