Anti Corrosion Paint Prefab Steel Structure Hangar Metal Shed Steel Building Warehouse
Anti Corrosion Paint Prefab Steel Structure Hangar Metal Shed Steel Building Warehouse
Anti Corrosion Paint Prefab Steel Structure Hangar Metal Shed Steel Building Warehouse
Anti Corrosion Paint Prefab Steel Structure Hangar Metal Shed Steel Building Warehouse
Anti Corrosion Paint Prefab Steel Structure Hangar Metal Shed Steel Building Warehouse
Anti Corrosion Paint Prefab Steel Structure Hangar Metal Shed Steel Building Warehouse
Specifications
Rooftype :
Gable roof or customizable
Delivery Time :
30 work days
Packaging Details :
Waterproof plastic film + steel strip bundling + wooden pallets.Seaworthy export packing.
Structuretype :
Pre-engineered metal building
Walltype :
Steel panels or insulated panels
Dimensions :
Customizable length, width, and height
Doortype :
Roll-up doors, sliding doors, or personnel doors
Coating :
Anti-corrosion paint or galvanized coating
Frame :
Steel frame with columns and beams
Usage :
Storage, industrial, commercial, agricultural
Certification :
CE (EN 1090)，ISO 9001 / 14001 / 45001，AISC Standard，SABER / SASO / SABS，EN 10204 3.1 Material Certificate，ISO 3834 Welding Quality System
Place of Origin :
China
Payment Terms :
L/C,D/A,Western Union,T/T,D/P
Supply Ability :
Annual production capacity: 20,000 ㎡ - 30,000 ㎡ of steel structure buildings.
Insulation :
Optional thermal insulation available
Price :
25-55$/sqm
Productname :
Steel Warehouse Building
Durability :
Weather-resistant, fire-resistant, and termite-proof
Installation :
Prefabricated components for easy assembly
Material :
High-quality steel
Brand Name :
JinHongTong
MOQ :
500 Square meter
Foundation :
Concrete foundation recommended
Windowtype :
Optional steel or aluminum windows
Description
Prefab Steel Structure Hangar Cheap Metal Shed Steel Building Warehouse Prefabricated Steel Structure Hangar
Steel structure warehouses are industrial storage facilities built with steel as the primary structural material, valued for their strength, versatility, and cost-effectiveness. They are widely used in logistics, manufacturing, agriculture, and retail for storing goods, equipment, or raw materials.
Product Overview
Our High-Strength Prefabricated Steel Structure Warehouse offers a one-stop solution, featuring fast delivery and experienced installation guidance. Constructed primarily from steel, the building structure includes internal support systems and external enclosure components.
Product Attributes
Application Fields Logistics, manufacturing, agriculture, and retail for storing goods, equipment, or raw materials
Design Parameter Wind Load, Snow Load And Earthquake
Life Span Around 40-50 Years
Column Q355 Welded H Section Steel
Frame Surface Two layers of Anti-rust Painting or Hot Dip Galvanized
After-sale Service Online technical support, Onsite Installation
Technical Specifications
Dimension Length x width x Eave height, roof slope
Type Single slope, double slope, multi-slope; Single span, double-span, multi-spans; Single floor, double floors, multi-floors
Foundation Concrete and steel foundation bolts
Column and Beam Hot rolled or welded H steel Q355B, all high strength bolts connection, straight cross-section or Variable cross-section
Horizon and Column Bracing X or V or other type bracing made from angle steel or steel pipe
C or Z Purlin Q235B C/Z section steel with size C160-300 or Z160-300
Roof and Wall Panel Single colorful corrugated steel sheet; Sandwich panel with insulation of EPS, Rock wool, glass wool or PU
Accessories Semi-transparent skylight belts, Ventilators, down pipe, gutter, doors, windows, etc
Surface Treatment Painting or hot dip galvanized
Package Nude or packed on steel pallet and then loaded into 40'HQ/OT
Key Performance Characteristics
  • High Strength & Durability: Withstand heavy loads and harsh weather without deformation. Resists rot, pests, and corrosion with proper treatment, ensuring long service life.
  • Large Span & Flexible Space: Support wide, column-free spans (20-50 meters), maximizing usable storage area and allowing easy reconfiguration.
  • Cost-Efficiency: Lower labor and construction time costs with minimal maintenance needs. Good resale value and can be disassembled or relocated.
  • Sustainability: Steel is 100% recyclable with many components made from recycled materials. Energy-efficient insulation options available.
  • Quick Construction: Prefabricated components reduce construction time by 30-50% compared to concrete structures.
Planning Considerations
  • Load-Bearing Requirements: Calculate maximum storage weight and dynamic loads to determine steel grade and frame design.
  • Weather Resistance: Choose corrosion-resistant coatings for humid or coastal areas; design for local snow loads, wind speeds, and rainfall.
  • Insulation & Ventilation: Opt for insulated panels to regulate temperature and ensure proper airflow to prevent moisture buildup.
  • Space Utilization: Plan span width, height, and access points based on storage needs and logistics operations.
  • Compliance & Safety: Adhere to local building codes for fire resistance, seismic safety, and emergency exits.
  • Future Expansion: Design with scalability in mind for easy extension or modification as storage demands grow.
Product Images

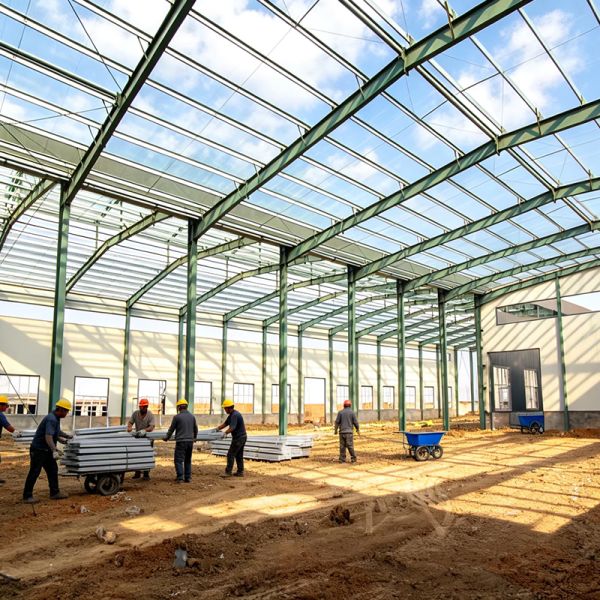

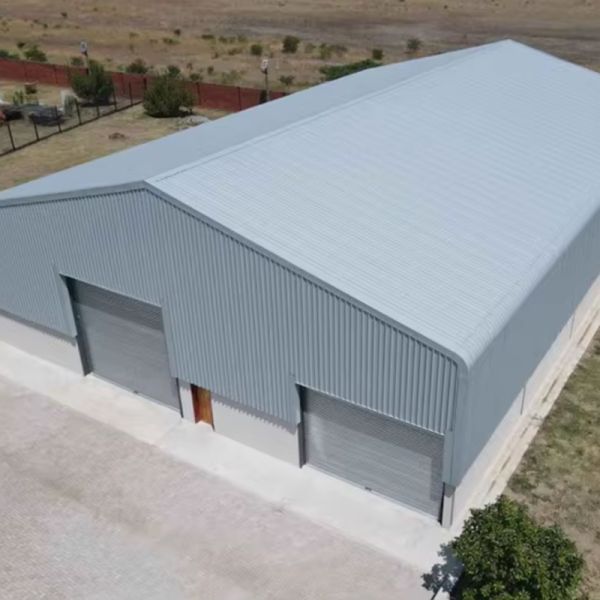

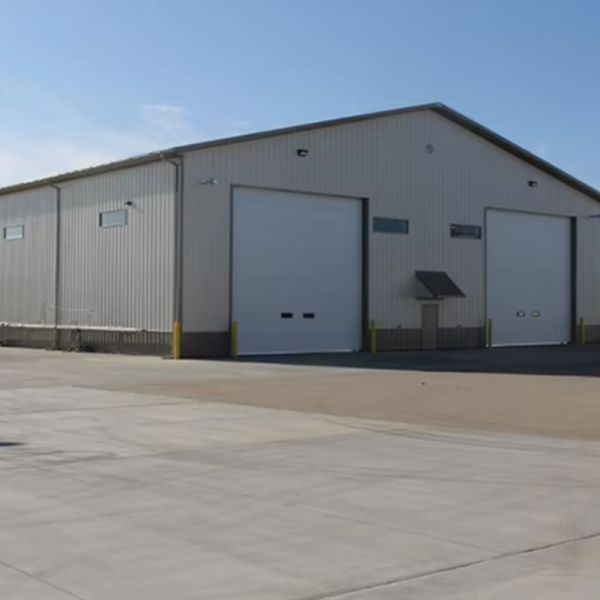

Anti Corrosion Paint Prefab Steel Structure Hangar Metal Shed Steel Building Warehouse Anti Corrosion Paint Prefab Steel Structure Hangar Metal Shed Steel Building Warehouse
Quality Control & Packaging
At Jinhongtong, we believe that quality is a defining feature of our services. We are committed to providing exceptional quality products and services at all stages of a project lifecycle.
We deploy extensive quality control measures including inspections of all materials prior to and following fabrication. Our highly trained fabrication and welding staff deliver a wide variety of fabrication services designed to meet your specific project requirements.
  • Measuring, cutting and welding the steel
  • Placing the holes and cleats in the correct position
  • Packaging and carefully loading in the right sequence
  • Dispatching to site and erecting if required
Anti Corrosion Paint Prefab Steel Structure Hangar Metal Shed Steel Building Warehouse
