Specifications
Brand Name :
JinHongTong
Certification :
CE (EN 1090)，ISO 9001 / 14001 / 45001，AISC Standard，SABER / SASO / SABS，EN 10204 3.1 Material Certificate，ISO 3834 Welding Quality System
Place of Origin :
China
MOQ :
100 ㎡
Price :
USD 20-100 per square meter
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Supply Ability :
Annual production capacity: 20,000 ㎡ - 30,000 ㎡ of steel structure buildings.
Delivery Time :
30 work days
Packaging Details :
Waterproof plastic film + steel strip bundling + wooden pallets.Seaworthy export packing.
Connection :
Bolt Connection and Welded Connection
Port :
qingdao tianjin
Dimension :
Up to customers' requirements
Purling :
C/Z Galvanized Steel(Q235)
Finish :
Smooth, Polished
Warranty :
5 years
Design Style :
Modern
Texture Of Material :
steel
Application :
Buildings, Bridges, Warehouses, Industrial Facilities
Shape :
I-beam, H-beam, Angle, Channel, Tube
Impact Resistance :
strong
Customization :
Customized Logo: Min. Order: 5000
Accessory :
According To Your Request
Surface Treatment :
Galvanized, Painted, Powder Coated
Structure Type :
Light Steel Structre
Description
Factory Supplied Prefab Steel Structure Farm Shed for Goat Sheep Chicken House & Farm House - Modern Traditional Design
Product Overview

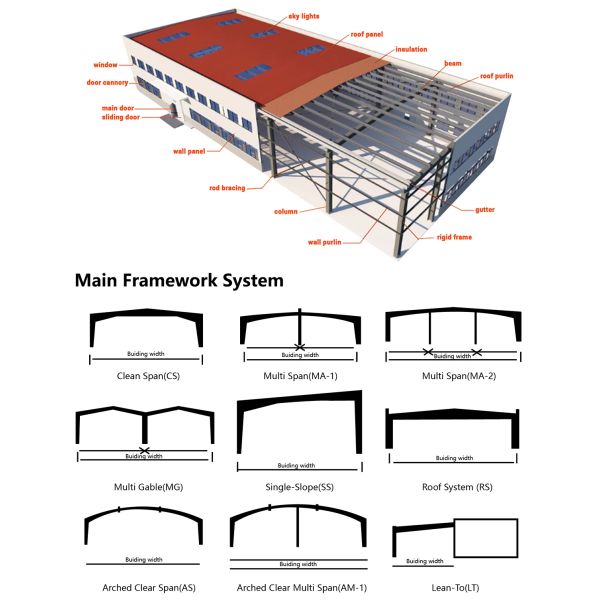

Steel structure building is made of heavy steel frame and cladding panels, doors and windows. Main column and rafter are welded H-steel, purlin is steel with galvanization 275g/m², available in C or Z section. Secondary steel components include L-steel, CHS, SHS, RHS, and round steel rod. Most steel components are connected by bolts.

Available options include: one floor or multi-floor, crane systems, skylights, ventilation systems, and more.

Characteristics & Advantages
  • Customizable sizes to meet specific requirements
  • Large span capability - clear spans up to 70m without middle columns
  • Environmentally protective with minimal waste and low foundation demands
  • Flexible customization of doors, windows, and interior partitions
  • Attractive appearance with various color options for wall and roof cladding
  • Cost-effective with convenient transportation
  • Fast installation and easy maintenance
  • Anti-rust protection with 50+ year lifespan using paint or hot dip galvanization
  • Safe and stable structure capable of resisting 8-grade earthquakes
  • Structural design based on required live loads and local snow/wind loads, typhoon/hurricane resistant
Technical Specifications
Component Specifications
Main Structure
Column Q355/Q235 H-steel, Box column also available
Rafter, Beam Q355/Q235 H-steel
Surface Processing Options 1. Epoxy zinc-rich primer + epoxy mica intermediate paint (120μm thickness)
2. Hot dip galvanization
Sub Structure
Purlin Q355B, C/Z steel section, galvanization 275g/m²
Angle Brace Q235B, L-steel
Cross Bracing Q235B round bar, L-steel
Tie Bar Q235B, round pipe
Batter Brace Q235B, round bar
Roof System
Roof Panel Options 1. Insulated sandwich panel (PU, rock wool, glass fiber, EPS) with steel sheets on both sides. Thickness: 50mm/75mm/100mm, Steel sheet thickness: 0.4mm/0.5mm/0.6mm
2. Steel plate, thickness: 0.4mm/0.5mm
Gutter Options 1. Galvanized steel gutter, thickness: 2.0mm/2.5mm/3.0mm
2. Painted, pre-finished steel gutter, thickness: 0.4mm/0.5mm/0.6mm
Down Spout PVC pipe
Steel Flashing and Cover Steel sheet for roof ridge cap, gable wall end cover and corner cover
Options Roof skylight 1.8mm PVC sheet and stainless steel ventilator
Wall System
Wall Panel Options 1. Insulated sandwich panel (PU, rock wool, glass fiber, EPS) with steel sheets on both sides. Thickness: 50mm/75mm/100mm, Steel sheet thickness: 0.4mm/0.5mm/0.6mm
2. Steel plate, thickness: 0.4mm/0.5mm
3. Brick wall (provided by client)
Door 1. Roller door for truck, size customized
2. Sliding door for truck, size customized
3. Access door, steel door, glass door, etc.
Window PVC or Aluminum frame, Fixed, swing, sliding, louver, etc., size customized
Steel Flashing and Cover Steel sheet end cover and corner cover
Accessories and Fasteners Anchor bolts, chemical bolts, high strength bolts, ordinary bolts, self-drilling screws, rivet, etc.
Other Options Crane 5T, 6T, 10T, 16T, 30T, etc.

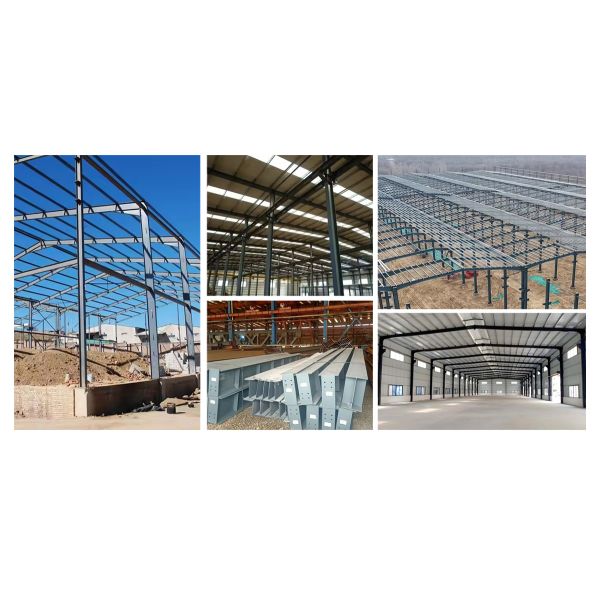

Product Gallery
Prefab Steel Structure Farm Shed For Goat Sheep Chicken House Farm House Modern Traditional Prefab Steel Structure Farm Shed For Goat Sheep Chicken House Farm House Modern Traditional Prefab Steel Structure Farm Shed For Goat Sheep Chicken House Farm House Modern Traditional Prefab Steel Structure Farm Shed For Goat Sheep Chicken House Farm House Modern Traditional Prefab Steel Structure Farm Shed For Goat Sheep Chicken House Farm House Modern Traditional

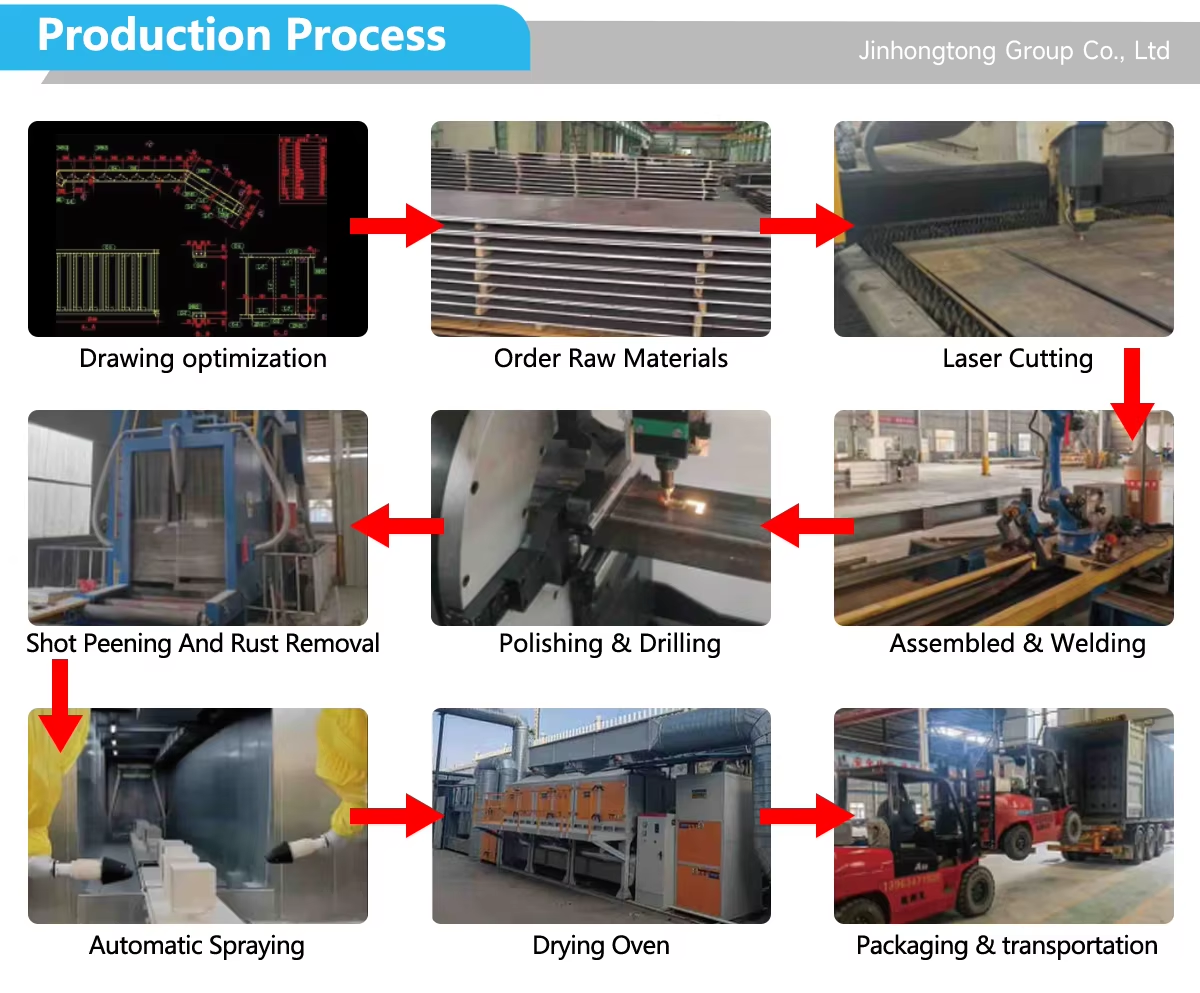

Production Workflow
Prefab Steel Structure Farm Shed For Goat Sheep Chicken House Farm House Modern Traditional

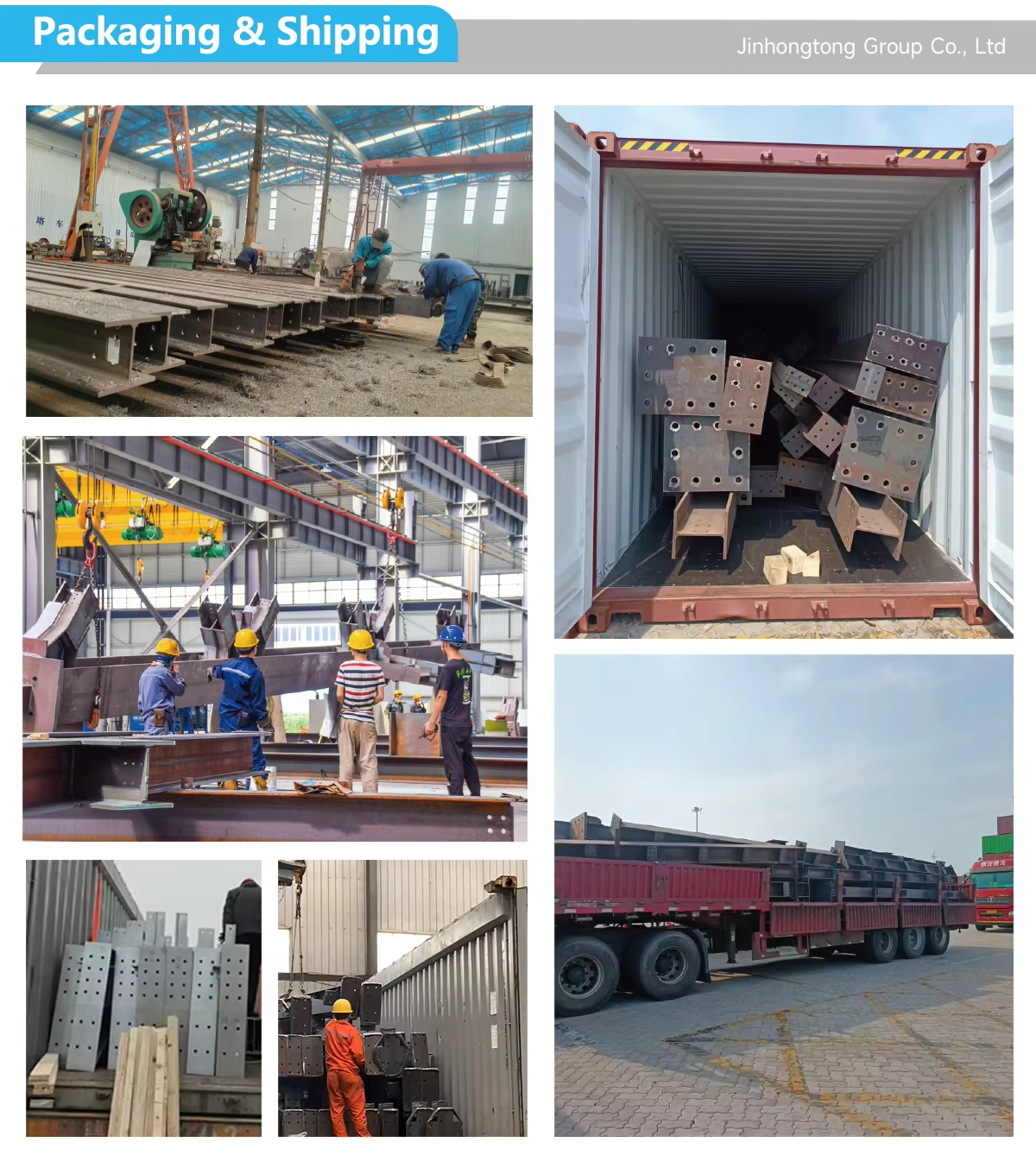

Packaging & Shipping Specifications
Prefab Steel Structure Farm Shed For Goat Sheep Chicken House Farm House Modern Traditional
