MachineU > China Products > Minerals & Metallurgy > Carbon Steel > Steel Structures
Football Stadium Steel Structure Building Prefabricated Gym Stadium Roof Steel Structure
Football Stadium Steel Structure Building Prefabricated Gym Stadium Roof Steel Structure
Football Stadium Steel Structure Building Prefabricated Gym Stadium Roof Steel Structure
Football Stadium Steel Structure Building Prefabricated Gym Stadium Roof Steel Structure
Football Stadium Steel Structure Building Prefabricated Gym Stadium Roof Steel Structure
Football Stadium Steel Structure Building Prefabricated Gym Stadium Roof Steel Structure
Specifications
Durability :
High corrosion resistance
MOQ :
500 Square meter
Usage :
Sports events, concerts, large gatherings
Maintenance :
Low maintenance with periodic inspections
Brand Name :
JinHongTong
Warranty :
10 years structural warranty
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Productname :
Steel Stadium
Type :
Stadium structure
Safetyfeatures :
Fire-resistant materials, emergency exits
Seatingarrangement :
Tiered seating
Rooftype :
Retractable or fixed options
Place of Origin :
China
Design :
Modular and customizable
Environmentalimpact :
Eco-friendly steel recycling
Price :
25-55$/sqm
Foundation :
Concrete base
Constructiontime :
6 to 12 months
Material :
Steel
Capacity :
Variable, typically 20,000 - 80,000 seats
Supply Ability :
Annual production capacity: 20,000 ㎡ - 30,000 ㎡ of steel structure buildings.
Certification :
CE (EN 1090)，ISO 9001 / 14001 / 45001，AISC Standard，SABER / SASO / SABS，EN 10204 3.1 Material Certificate，ISO 3834 Welding Quality System
Description
Football Stadium Steel Structure Building Prefabricated Gym Stadium Roof Steel Structure
Product Overview

The gymnasium is widely used in sports grounds, providing a safe, windproof, and rainproof indoor sports venue. Suitable for football halls, basketball halls, table tennis halls, badminton halls, and other sports facilities. Steel structure buildings offer long-term stability and can be designed according to specific requirements.

Steel structure construction is formed by steel columns, steel beams, bracing, and purlins. All steel components are fabricated in the workshop and delivered to the project site for quick installation, making it an environmentally friendly building solution that saves manpower.

Product Specifications
Component Material Specifications
Main Steel
Column Q235, Q355 Welded H Section Steel
Beam Q235, Q355 Welded H Section Steel
Secondary Steel Frame
Purlin Q235 C and Z Purlin
Angle Brace Q235 Angle Steel
Tie Rod Q235 Circular Steel Tube
Brace Q235 Round Bar
Vertical and Horizontal Q235 Angle Steel, Round Bar or Steel Tube
Maintenance System
Roof Panel EPS Sandwich Panel / Glass Fiber Sandwich Panel / Rock Wool Sandwich Panel / PU Sandwich Panel
Wall Panel Sandwich Panel / Corrugated Steel Sheet
Accessories
Window Aluminium Alloy Window / PVC Window / Sandwich Panel Window
Door Sliding Sandwich Panel Door / Rolling Metal Door / Personnel Door
Gutter + Downspout Galvanized + PVC
Others Anchor bolt, high strength bolts, ordinary bolts, self-tapping screw, glass adhesive, fans, skylight panel, etc.

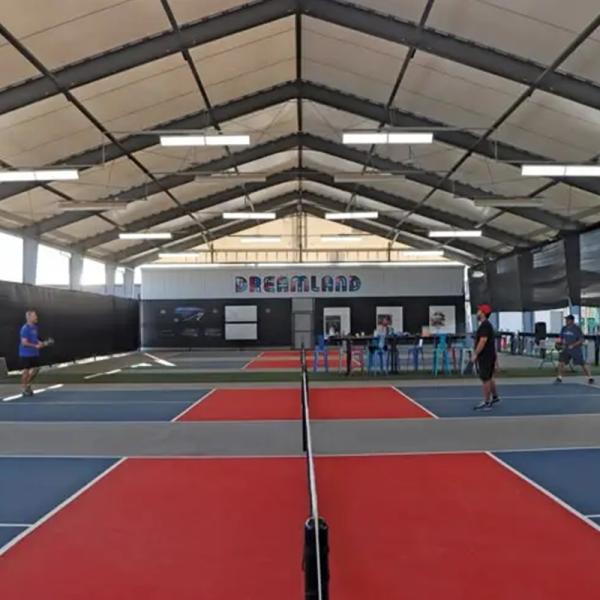

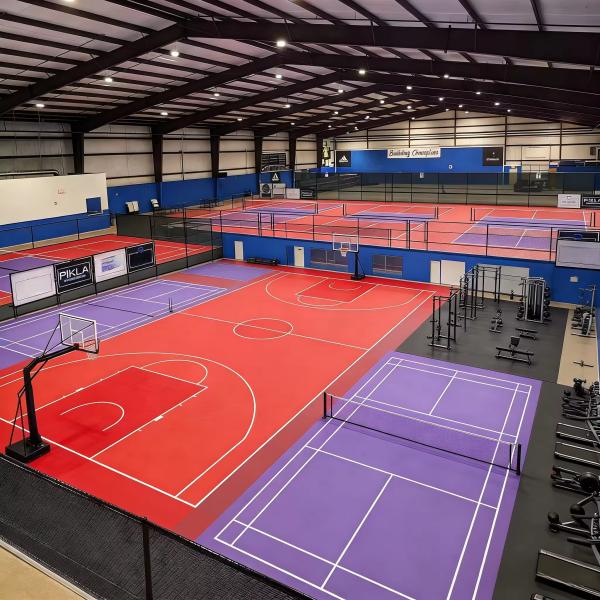

Project Showcase
Football Stadium Steel Structure Building Prefabricated Gym Stadium Roof Steel Structure
Steel Structure Materials
Football Stadium Steel Structure Building Prefabricated Gym Stadium Roof Steel Structure
Production Workflow
Football Stadium Steel Structure Building Prefabricated Gym Stadium Roof Steel Structure
Our Advantages
Complete Material Supply

We provide all materials needed for steel structure buildings, including main structure, secondary structure, and maintenance structure components. With our own factory in China, we guarantee the quality of raw materials such as carbon steel.

Professional Engineering Design

Our professional design team with 20 years of industry experience creates customized plans based on your product needs. You can intuitively see the expected effect of the completed building. We provide comprehensive installation drawings for steel structure buildings.

Quality Manufacturing

We operate our own factory with high-quality raw materials and competitive pricing.

Comprehensive Project Support

We provide installation drawings and design documentation, supported by our professional design group. We offer one-stop service to help you complete the entire project.

Durability and Safety

Our steel structure buildings can withstand extreme natural weather and environmental conditions, including wind, snow, seismic events, and fire. This greatly enhances the long-term stability of the building.

Football Stadium Steel Structure Building Prefabricated Gym Stadium Roof Steel Structure
Packaging & Shipping Specifications
Football Stadium Steel Structure Building Prefabricated Gym Stadium Roof Steel Structure
