Large Sports Stadium Prefabricated Steel Structure Sports Hall Metal Warehouse Building
Large Sports Stadium Prefabricated Steel Structure Sports Hall Metal Warehouse Building
Large Sports Stadium Prefabricated Steel Structure Sports Hall Metal Warehouse Building
Large Sports Stadium Prefabricated Steel Structure Sports Hall Metal Warehouse Building
Large Sports Stadium Prefabricated Steel Structure Sports Hall Metal Warehouse Building
Large Sports Stadium Prefabricated Steel Structure Sports Hall Metal Warehouse Building
Specifications
Brand Name :
JinHongTong
Certification :
CE (EN 1090)，ISO 9001 / 14001 / 45001，AISC Standard，SABER / SASO / SABS，EN 10204 3.1 Material Certificate，ISO 3834 Welding Quality System
Place of Origin :
China
MOQ :
100 ㎡
Price :
USD 20-100 per square meter
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Supply Ability :
Annual production capacity: 20,000 ㎡ - 30,000 ㎡ of steel structure buildings.
Description
Low Cost Large Sports Stadium Prefabricated Steel Structure Sports Hall Metal Warehouse Building Steel Frame Gym Indoor Stadium
Professional steel frame gym and indoor stadium building designed for sports facilities.
Product Overview
The gymnasium is widely used in sports grounds, providing safe, windproof, and rainproof indoor sports venues. Suitable for football halls, basketball halls, table tennis halls, badminton halls, and other sports facilities. Steel structure buildings offer long-term stability and can be customized according to specific requirements.
Steel structure construction is formed by steel columns, steel beams, bracing, and purlins. All components are fabricated in our workshop and delivered to project sites for quick installation, making it an environmentally friendly building solution that saves manpower.
Technical Specifications
Component Material Specifications
Main Steel
Column Q235, Q355 Welded H Section Steel
Beam Q235, Q355 Welded H Section Steel
Secondary Steel Frame
Purlin Q235 C and Z Purlin
Angle Brace Q235 Angle Steel
Tie Rod Q235 Circular Steel Tube
Brace Q235 Round Bar
Vertical and Horizontal Q235 Angle Steel, Round Bar or Steel Tube
Maintenance System
Roof Panel EPS Sandwich Panel / Glass Fiber Sandwich Panel / Rock Wool Sandwich Panel / PU Sandwich Panel
Wall Panel Sandwich Panel / Corrugated Steel Sheet
Accessories
Window Aluminium Alloy Window / PVC Window / Sandwich Panel Window
Door Sliding Sandwich Panel Door / Rolling Metal Door / Personnel Door
Gutter + Downspout Galvanized + PVC
Others Anchor bolt, high strength bolts, ordinary bolts, self-tapping screws, glass adhesive, fans, skylight panel, etc.

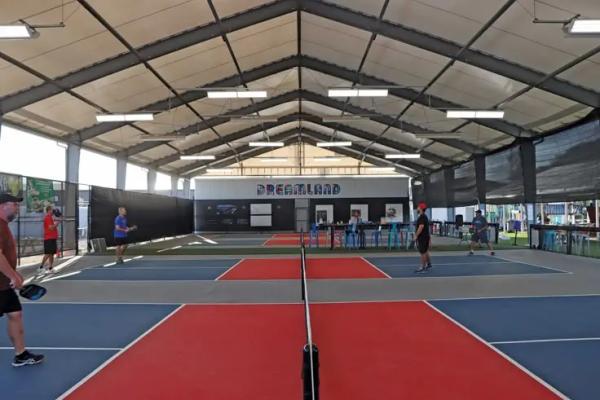

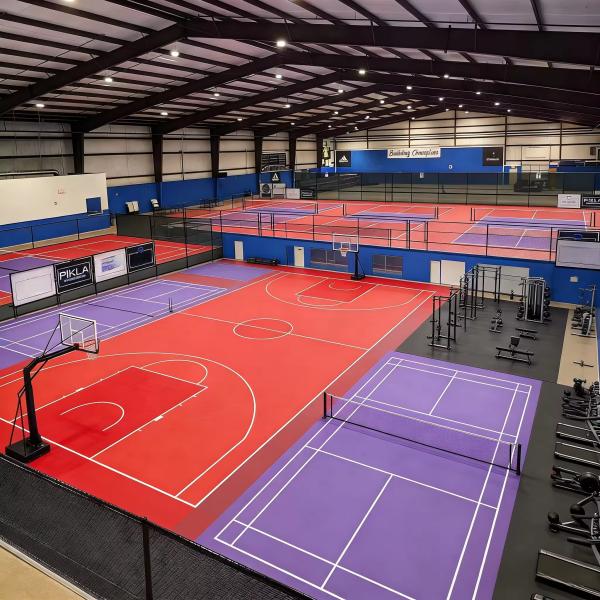

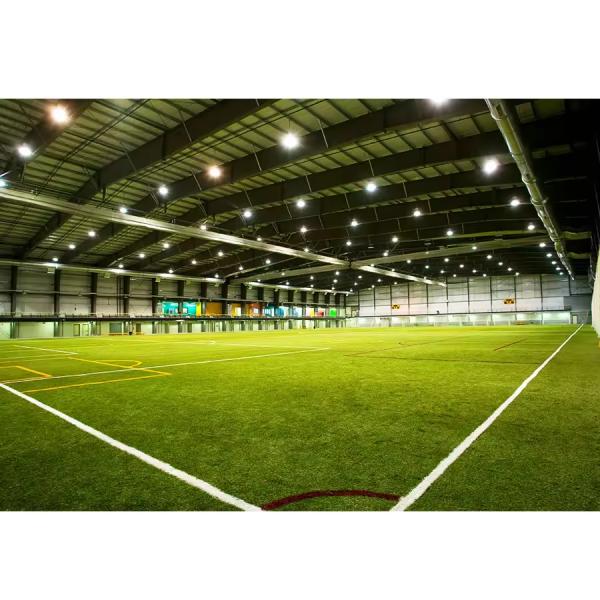

Project Showcase
Large Sports Stadium Prefabricated Steel Structure Sports Hall Metal Warehouse Building
Steel Structure Materials
Large Sports Stadium Prefabricated Steel Structure Sports Hall Metal Warehouse Building
Production Workflow
Large Sports Stadium Prefabricated Steel Structure Sports Hall Metal Warehouse Building
Our Advantages
  • Complete Material Supply: We provide all materials needed for steel structure buildings, including main structure, secondary structure, and maintenance structure components
  • Quality Assurance: Our own factory in China ensures guaranteed quality of raw materials including carbon steel
  • Professional Engineering Design: Our 20+ years experienced design team creates customized plans based on your requirements
  • Visualization Support: See the expected effect of completed buildings before construction
  • Comprehensive Documentation: We provide installation drawings and design specifications
  • Competitive Pricing: Own factory operations ensure high quality materials at suitable prices
  • One-Stop Service: Complete project management from design to implementation
  • Durability & Safety: Buildings withstand extreme weather conditions including wind, snow, seismic events, and fire
  • Long-Term Stability: Enhanced building longevity and structural integrity
Large Sports Stadium Prefabricated Steel Structure Sports Hall Metal Warehouse Building
Packaging & Shipping Specifications
Large Sports Stadium Prefabricated Steel Structure Sports Hall Metal Warehouse Building
