Specifications
Brand Name :
XGZ
Model Number :
XGZ-HSS005
Certification :
CE EN1090,ISO9001,GOST,AISC
Place of Origin :
Pingdu，Qingdao，China
MOQ :
100 square meters
Price :
USD 30-100 per square meter/Negotiable
Payment Terms :
T/T,L/C,Western Union,MoneyGram
Supply Ability :
30000 tons per month
Delivery Time :
30-55 days
Packaging Details :
Steel pallet
Name :
Heavy Steel Structure
Processing Service :
Bending, Welding, Decoiling, Cutting, Punching
Keyword :
Heavy Steel Structure Building
Span :
Customized
Main Frame :
Solid H-shape Steel Beam, Column
Drawing Design :
3D Drawing
Description
Efficiently Heavy Duty Steel Structure For Optimal Industrial Solutions
Product Description

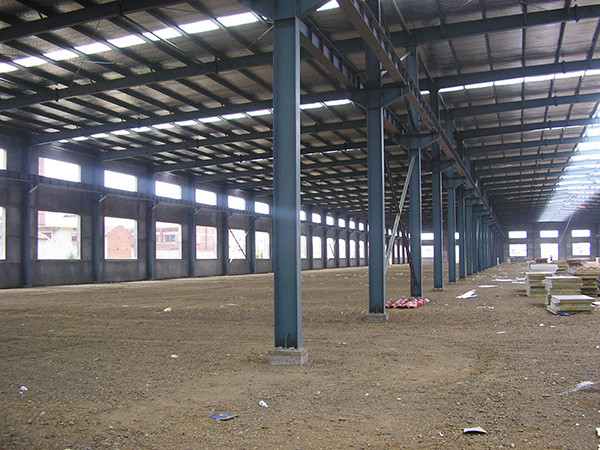

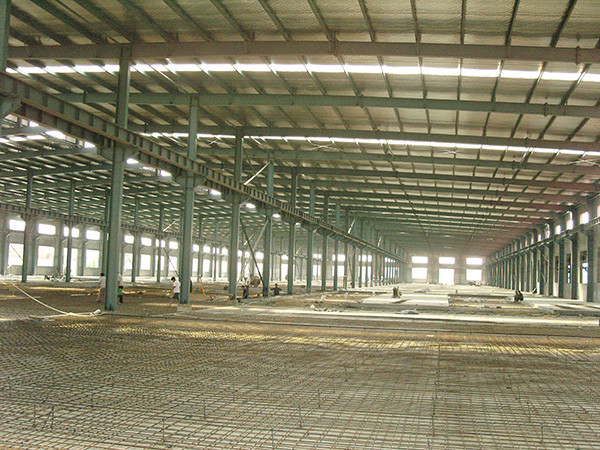

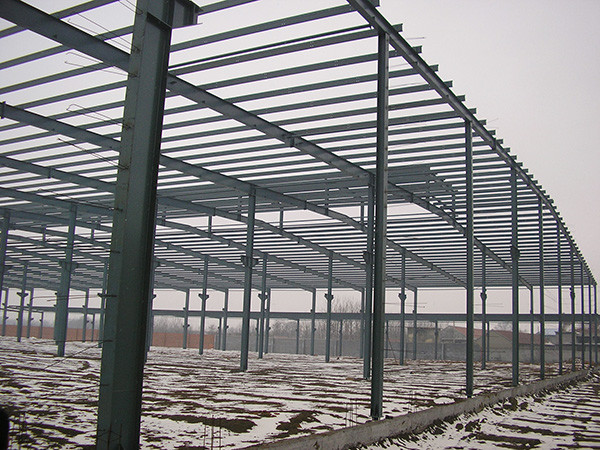

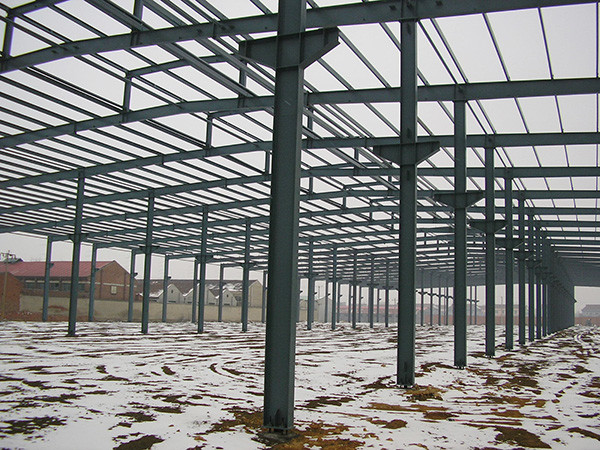

Heavy steel structure building is composed of a series of steel structure members, including H section steel columns, H section steel beams, C/Z section purlins, bracing, and cladding, which form the load-bearing structure of the building.
Heavy steel buildings are in high demand due to their rapid production, easy transport, and fast construction. As a cost-efficient building type, they have become the preferred choice for industrial and commercial construction projects.
We provide accurate budgets, construction plans, and detailed drawings tailored to your specific requirements. All steel structure sections and panels are factory-fabricated to precise dimensions and assembled on-site using bolts and self-tapping screws.
Product Parameters
Main components of heavy steel structure building:
  • Primary Framing Elements: H-section steel columns and beams (hot rolled or welded), factory-primed with anti-rust surface treatment
  • Secondary Framing Elements: Purlins and tie bars fixed to columns and beams with common bolts
  • Bracing: Round steel knee bracing and supporting parts for enhanced stability
  • Cladding: Color-coated corrugated steel sheets or sandwich panels for weather protection
  • Windows and Doors: Plastic steel or aluminum-alloy windows; sliding or folding doors
  • Optional Components: Gutters, downpipes, transparent sheets, ventilators, and bridge cranes
NameHeavy Steel Structure
Main Steel FrameH section steel beam and columns, painted or galvanized, galvanized C section or steel pipe
Secondary FrameHot dip galvanized C purlin, steel bracing, tie bar, knee brace, edge cover etc.
Roof PanelEPS sandwich panel, glass fiber sandwich panel, rock wool sandwich panel, and PU sandwich panel or steel sheet
Tie RodCircular steel tube
BraceRound bar
Knee BraceAngle Steel
Roof GutterColor steel sheet

Industrial Heavy Steel Structure Building , 3D Drawing Heavy Metal Construction

Production Features
Advantages of heavy steel structure building construction:
  • Quick construction
  • Foundation cost saving
  • Environmentally friendly
  • Sustainable
  • Affordable
  • Durable
  • High strength
  • Large span capability
  • Flexible to any shape
Design and Quote
We can provide quotations based on your existing drawings or design a complete steel structure building for you. To receive a customized drawing, please provide:
  • Location
  • Size: Length * width * eave height
  • Wind load (max. wind speed)
  • Snow load (max. snow height)
  • Anti-earthquake level
  • Brick wall requirements (if needed)
  • Thermal insulation preferences (EPS, fiberglass wool, rockwool, PU sandwich panels, or metal sheets)
  • Door and window specifications (quantity & size)
  • Crane requirements (if needed)

Industrial Heavy Steel Structure Building , 3D Drawing Heavy Metal Construction
Industrial Heavy Steel Structure Building , 3D Drawing Heavy Metal Construction

Product Processing
Workshop processing steps:
  • Cutting: Precision cutting of steel components using advanced laser cutting technology
  • Assemble: Fitting steel pieces according to engineering specifications
  • Welding: Secure joining of components for enhanced load-bearing capacity
  • Rust Removal: Surface preparation using sandblasting or chemical cleaning
  • Surface Treatment: Spray painting or hot-dip galvanizing for corrosion protection

Industrial Heavy Steel Structure Building , 3D Drawing Heavy Metal Construction

Packaging
Packaging details:
  • Steel structure components packed in steel pallets with proper protection
  • Sandwich panels covered with plastic film
  • Bolts and accessories loaded into wooden boxes
  • All products packed for safe ocean transport in containers
  • Professional loading using cranes and forklifts to prevent damage

Industrial Heavy Steel Structure Building , 3D Drawing Heavy Metal Construction

Installation Process
Key installation steps:
  • Anchor bolt pre-embedding with ±5mm precision
  • Steel column installation with continuous welding fillet
  • Floor platform assembly according to beam plans
  • Roof beam installation with continuous welding fillet
  • Roof purlin, steel stair, and decking floor installation
  • Gutter installation with parallel water funnels
We provide detailed construction drawings and installation manuals. Professional installation guidance is available upon request (additional costs apply).

Industrial Heavy Steel Structure Building , 3D Drawing Heavy Metal Construction
Industrial Heavy Steel Structure Building , 3D Drawing Heavy Metal Construction

Our Advantages
  • Professional Teams: Experienced engineers and construction specialists
  • Precision Planning: Comprehensive project preparation to prevent errors
  • Safety First: Strict adherence to labor safety and quality standards
  • International Standards: ISO 9001:2015 certified production
  • Modern Facilities: Advanced technology and machinery
  • Competitive Pricing: Comprehensive solutions from design to completion
  • Global Experience: Successful exports to 130 countries worldwide
FAQ
1. What kind of company are you?
We are a steel structure building manufacturer located in Qingdao, China, with our own factory. We welcome visits to showcase our professionalism and offer competitive pricing.
2. How to get a fast quotation?
Provide building type, size, quantity, and material specifications for roof, wall, and floor components.
3. Can you send engineers to install my structures?
We provide free installation drawings and videos, and can send engineers as installation directors upon request.
4. What drawings will you supply?
Plan, elevation, sectional, foundation, construction, and installation drawings.
5. How long does it take to get my building?
Typically 2 weeks for drawings and 30-55 days for delivery (depending on complexity).
