Specifications
Brand Name :
XGZ
Model Number :
XGZ-HSS012
Certification :
CE EN1090, ISO9001,GOST,AISC
Place of Origin :
Pingdu, Qingdao, China
MOQ :
100 square meters
Price :
USD 30-80 per square meter/Negotiable
Payment Terms :
T/T,L/C,Western Union,MoneyGram
Supply Ability :
30000 tons per month
Delivery Time :
30-55 days
Packaging Details :
Steel pallet
Name :
Heavy Steel Structure
Processing Service :
Bending, Welding, Decoiling, Cutting, Punching
Keyword :
Heavy Steel Structure Building
Span :
Customized
Main Frame :
Solid H-shape Steel Beam, Column
Drawing Design :
3D Drawing
Description
Eco-Friendly Durable Heavy Steel Structure Building For Industrial Applications

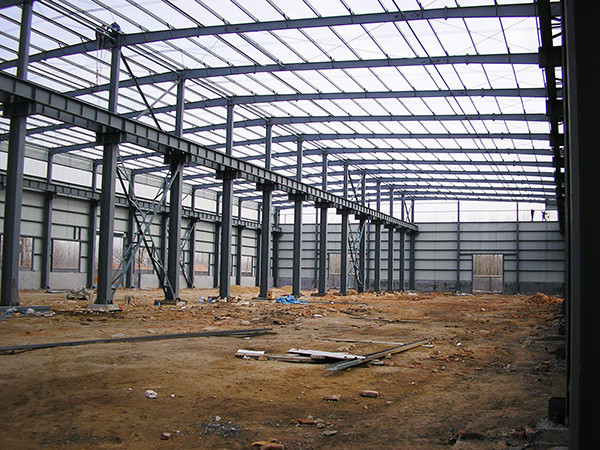

Heavy steel structure building is composed of steel structure members including H section steel column, H section steel beam, C/Z section purlin, bracing and cladding, which form the load-bearing structure of the building. These structures are in high demand due to rapid production, easy transport and fast construction. As a cost-efficient building type, they have become the preferred choice for industrial and commercial construction.
We provide accurate budgets, construction plans and detailed drawings tailored to your specific applications and requirements. All steel structure sections and panels are factory-fabricated to precise dimensions and assembled on-site using bolts and self-tapping screws.
Product Specifications
Main Components
  • Primary Framing: Composed of steel beams, columns, and trusses made from section steel and steel plate, treated with rust removal and anti-rust processes including shot blasting, painting and galvanizing. Members are connected via welding, bolts or rivets.
  • Secondary Framing: Connects the main frame and resists longitudinal loads (wind, earthquake). Includes steel purlins (1.8-3.0mm thickness, galvanized) and column bracing for structural stability.
  • Cladding System: Steel sheet (galvanized or aluminium zinc with organic coating) or sandwich panels (EPS, fiberglass wool, rock wool, or PU core between steel sheets).
Component Material Specification
Main Frame - Column Q235, Q355 welded H section steel
Main Frame - Beam Q235, Q355 welded H section steel
Secondary Frame - Purlin Q235 Z/C steel purlin
Wall Panel EPS sandwich panel/glass fiber sandwich panel/rock wool sandwich panel/PU sandwich panel/steel sheet
Roof Panel Sandwich panel and corrugated steel sheet
Key Advantages
  • Clear Span: Up to 45m spans with H section columns/beams; larger spans available with truss roofs
  • Quality Assurance: Factory-manufactured under strict quality control
  • Low Maintenance: High-quality paint systems ensure durability
  • Design Flexibility: Compatible with canopies, curved eaves, concrete walls, curtain walls, etc.
  • Fast Construction: Bolt-on assembly reduces erection time

Eco Friendly Heavy Steel Structure 3D Drawing Industrial Heavy Metal Workshop

Eco Friendly Heavy Steel Structure 3D Drawing Industrial Heavy Metal Workshop

Design & Quotation Requirements
For accurate quotation, please provide:
  • Project location
  • Dimensions (length × width × eave height)
  • Mezzanine requirements (if any) including load capacity
  • Wall type preference (single-layer steel or sandwich panel)
  • Snow load and wind speed/load specifications
  • Interior column allowance
  • Crane requirements (capacity if needed)
  • Any special requirements

Eco Friendly Heavy Steel Structure 3D Drawing Industrial Heavy Metal Workshop

Manufacturing Process
  • Cutting: Precision cutting using automatic laser machines
  • Assembly: Components fitted per engineering drawings
  • Welding: Secure joining for enhanced load-bearing capacity
  • Surface Preparation: Rust removal via sandblasting/chemical cleaning
  • Finishing: Spray painting or hot-dip galvanizing
Packaging & Shipping

The packing method for main steel frame will use steel pallet, which can be better to protect steel frame and make the loading and unloading faster and more convenient since it could be taken as a whole. It could also save the quantity of shipping containers and cost of ocean freight.

Other parts packed in parcels such as steel purlin and steel sheet, all loaded into 40ft HQ. Safe and easy handle.

Eco Friendly Heavy Steel Structure 3D Drawing Industrial Heavy Metal Workshop

Why Choose Us
  • Professional engineering and construction teams with extensive experience
  • Comprehensive project planning to ensure timely completion
  • Strict adherence to safety and quality standards
  • ISO 9001:2015 certified manufacturing
  • Modern production facilities with advanced technology
  • Competitive pricing based on actual requirements
  • Global export experience to 80+ countries

Eco Friendly Heavy Steel Structure 3D Drawing Industrial Heavy Metal Workshop

Frequently Asked Questions
Are you a manufacturer?
Yes, we operate our own factory and offer competitive pricing.
Do you offer design services?
We provide customized designs based on your building specifications.
Can you assist with installation?
We provide detailed installation guides and can send technical teams for on-site supervision.
How to order?
Provide your drawings or requirements - we'll handle design and production.
Production timeline?
Typically 2 weeks for drawings and 30-55 days for delivery (varies by complexity).
