SUS304 SUS316L Stainless Steel Capillary Medical Tube For Syringes Catheters ISO9626
SUS304 SUS316L Stainless Steel Capillary Medical Tube For Syringes Catheters ISO9626
SUS304 SUS316L Stainless Steel Capillary Medical Tube For Syringes Catheters ISO9626
SUS304 SUS316L Stainless Steel Capillary Medical Tube For Syringes Catheters ISO9626
SUS304 SUS316L Stainless Steel Capillary Medical Tube For Syringes Catheters ISO9626
SUS304 SUS316L Stainless Steel Capillary Medical Tube For Syringes Catheters ISO9626
SUS304 SUS316L Stainless Steel Capillary Medical Tube For Syringes Catheters ISO9626
SUS304 SUS316L Stainless Steel Capillary Medical Tube For Syringes Catheters ISO9626
Specifications
Brand Name :
YUHONG
Model Number :
SUS304, SUS316L
Certification :
ISO 9001, ISO13485: 2016
Place of Origin :
China
MOQ :
100 KGS
Price :
Negotiable
Payment Terms :
T/T, L/C
Supply Ability :
13 Billion pieces Per Year
Delivery Time :
15 - 45 Workdays
Packaging Details :
Ply-wooden Case
Capillary Tube Material :
Medical Grade Stainless Steel 304/316L
Capillary Tube Specification :
ISO9626: 2016
Capillary Tube Type :
Welded
Capillary Tube Diameter :
0.15 - 3.4mm or customized
Manufacturing Process :
Cold Drawn, Bright Annealed
Capillary Tube Usage :
Medical Devices(Syringes, Catheters, Needle Tubes, ...), Laboratory Equipments, Etc.
Description

SUS304 SUS316L Stainless Steel Capillary Medical Tube For Syringes And Catheters ISO9626

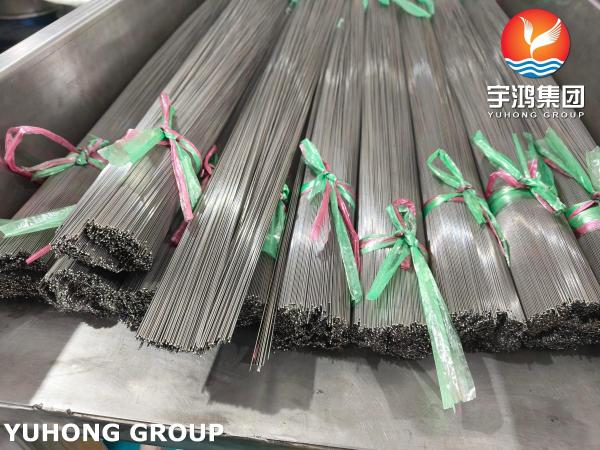

Stainless steel capillary tubes are hollow, slender, high-precision tubes, which have tight dimension tolerance and smooth surface finish. YUHONG GROUP has manufactured and supplied stainless steel capillary tubes for more than 30 years. Our medical capillary tubes are mainly made by stainless steel 304 / 316L grades due to excellent corrosion resistance and durability. They are used in medical devices such as syringes, catheters, and diagnostic equipments. The diameter sizes range from 0.15 to 3.4mm or can be customized, and the tube length can be cut into fixed length, such as 1 / 2meter. We can also meet clients’ requirements about tube shapes through cutting, flaring, swaging, bending, slotting, punching etc.. And capillary tubes can be designed based on clients’ drawings or samples.

Key Characteristics Of Medical Grade Stainless Steel Capillary Tubes:

  • Complied With ISO9626: 2016 International Standard
  • Excellent Surface Finish
  • High Strength
  • Good Resistance to Corrosion
  • High Precision and Strict Size Tolerance
  • Good formability and Durability
  • Temperature Resistance

Chemical Composition:

Grades UNS C Mn P S Si Cr Ni Mo
SUS304 S30400 0.08 2 0.045 0.03 1 18.0-20.0 8.0-11.0 -
SUS304L S30403 0.035 2 0.045 0.03 1 18.0-20.0 8.0-13.0 -
SUS316 S3160 0.08 2 0.045 0.03 1 16.0-18.0 11.0-14.0 2.0-3.0
SUS316L S31603 0.035 2 0.045 0.03 1 16.0-18.0 10.0-14.0 2.0-3.0

Mechanical Characteristics:

Material Temperure Tensile Strength Yield Strength Elongation %, Min
º F(º C) Ksi (MPa), Min. Ksi (MPa), Min.
Min.
SUS304 1900 (1040) 75(515) 30(205) 35
SUS304L 1900 (1040) 70(485) 25(170) 35
SUS316 1900(1040) 75(515) 30(205) 35
SUS316L 1900(1040) 70(485) 25(170) 35

Applications Of Medical Capillary Tubes:

  • Medical Syringe Needle
  • Injection Needle
  • Insulin Needle
  • Hypodermic Needle
  • Dental Needle
  • Biopsy Needle
  • EMG Needle
  • AV Fistula Needle
  • Mesotherapy Needle
  • Intravenous Indwelling Needle
  • Scalp Vein Needle
  • Puncture Needle
  • Blunt Needle
  • Veterinary Needle
  • Laboratory and Scientific Instruments

SUS304 SUS316L Stainless Steel Capillary Medical Tube For Syringes Catheters ISO9626
