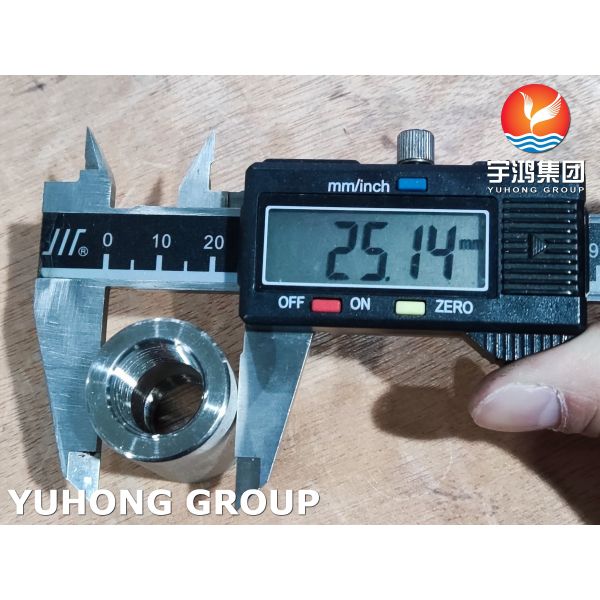

ASTM A182 F304 3000# SW & NPT Coupling, High Corrosion Resistance Stainless Steel Socket Weld & NPT Thread Coupling for Industrial Pipeline
ASTM A182 F304 3000# SW & NPT Coupling, High Corrosion Resistance Stainless Steel Socket Weld & NPT Thread Coupling for Industrial Pipeline
ASTM A182 F304 3000# SW & NPT Coupling, High Corrosion Resistance Stainless Steel Socket Weld & NPT Thread Coupling for Industrial Pipeline
ASTM A182 F304 3000# SW & NPT Coupling, High Corrosion Resistance Stainless Steel Socket Weld & NPT Thread Coupling for Industrial Pipeline
ASTM A182 F304 3000# SW & NPT Coupling, High Corrosion Resistance Stainless Steel Socket Weld & NPT Thread Coupling for Industrial Pipeline
ASTM A182 F304 3000# SW & NPT Coupling, High Corrosion Resistance Stainless Steel Socket Weld & NPT Thread Coupling for Industrial Pipeline
ASTM A182 F304 3000# SW & NPT Coupling, High Corrosion Resistance Stainless Steel Socket Weld & NPT Thread Coupling for Industrial Pipeline
ASTM A182 F304 3000# SW & NPT Coupling, High Corrosion Resistance Stainless Steel Socket Weld & NPT Thread Coupling for Industrial Pipeline
Specifications
Brand Name :
YUHONG
Model Number :
F316L
Certification :
ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2015
Place of Origin :
CHINA
MOQ :
1PC
Price :
Negotiable
Payment Terms :
T/T,L/C
Supply Ability :
Depends On Quantity
Delivery Time :
5 - 90 Work Days
Packaging Details :
Wooden Cases
Standard :
ASTM A182 / ASME SA182, ASME B16.11, ASME B31.3
Grade :
F304 (UNS S30400), Austenitic Stainless Steel
Type :
Coupling, Socket Weld (SW) & NPT Thread (NPT 1/8" - 4")
Pressure Rating :
3000# (Class 3000), PN50
Size Range :
1/8” – 4” (DN6 – DN100), NPT Thread: 1/8”-4”
Wall Thickness :
Class 3000 Standard Thickness, Custom Thickness Optional
Description
ASTM A182 F304 3000# SW & NPT Coupling, High Corrosion Resistance Stainless Steel Socket Weld & NPT Thread Coupling for Industrial Pipeline
Brief Introduction

ASTM A182 F304 3000# SW AND NPT COUPLING is a high-performance austenitic stainless steel pipe coupling, strictly manufactured in accordance with ASTM A182 (equivalent to ASME SA182) and ASME B16.11 standards. It is made of F304 stainless steel (UNS S30400), featuring excellent corrosion resistance, good weldability, stable mechanical properties and high pressure-bearing capacity. Designed with two connection modes—Socket Weld (SW) and NPT Thread, it is a key pipeline connection component specially used to connect two sections of pipelines, with compact structure, convenient installation, reliable sealing and strong adaptability. With a pressure rating of 3000#, it is suitable for medium and high pressure, normal temperature and mild corrosive working conditions, widely applied in various industrial pipeline systems, serving as a durable and efficient connection fitting for conveying water, gas, oil, chemical reagents and other media.

Chemical Composition Analysis (wt%)
Alloy Grade C Cr Ni Mn Si P S
ASTM A182 F304 (UNS S30400) ≤0.08 18.0-20.0 8.0-12.0 ≤2.00 ≤1.00 ≤0.045 ≤0.030
Typical Mechanical Properties
Mechanical Property Standard Requirement (ASTM A182) Typical Value
Yield Strength (Rp0.2), MPa ≥205 210-280
Tensile Strength (Rm), MPa ≥515 520-650
Elongation (A), % ≥40 42-50
Hardness (HB), Brinell ≤201 140-190
Impact Toughness (KV), J (-20℃) ≥60 70-100
Bending Strength, MPa ≥700 720-850
Available Tests
Test Type Standard
Chemical Composition Test (PMI) Spectrometer, ASTM A182
Tensile & Impact Test ASTM E8/E8M, ASTM A370
Hardness Test ASTM E10
Hydrostatic/Pneumatic Pressure Test ASTM A182, ASME B16.11
Non-Destructive Testing (NDT) UT, RT, MT, PT (ASTM E165), Eddy Current Test
Corrosion Resistance Test ASTM G48, Salt Spray Test (ASTM B117)
Dimensional & Visual Inspection ASTM A182, ASME B16.11, Thread Accuracy Test, Surface Defect Inspection
Microstructure Inspection ASTM E45, Metallographic Microscope Test
Weld Quality Test (for SW) Weld Penetration Test, Weld Strength Test
Thread Tightness Test (for NPT) Pressure Tightness Test, Thread Fit Test
