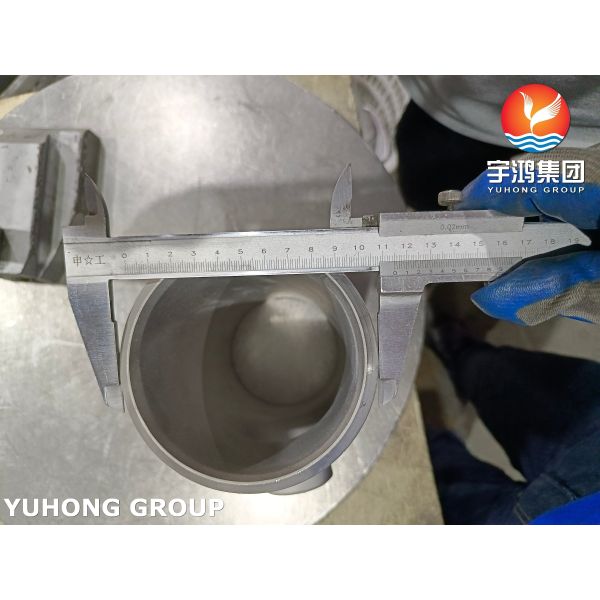

ASTM B366 C276 BW Equal & Unequal TEE High Corrosion Resistance Hastelloy C276 Butt Weld Pipe Fitting
ASTM B366 C276 BW Equal & Unequal TEE High Corrosion Resistance Hastelloy C276 Butt Weld Pipe Fitting
ASTM B366 C276 BW Equal & Unequal TEE High Corrosion Resistance Hastelloy C276 Butt Weld Pipe Fitting
ASTM B366 C276 BW Equal & Unequal TEE High Corrosion Resistance Hastelloy C276 Butt Weld Pipe Fitting
ASTM B366 C276 BW Equal & Unequal TEE High Corrosion Resistance Hastelloy C276 Butt Weld Pipe Fitting
ASTM B366 C276 BW Equal & Unequal TEE High Corrosion Resistance Hastelloy C276 Butt Weld Pipe Fitting
ASTM B366 C276 BW Equal & Unequal TEE High Corrosion Resistance Hastelloy C276 Butt Weld Pipe Fitting
ASTM B366 C276 BW Equal & Unequal TEE High Corrosion Resistance Hastelloy C276 Butt Weld Pipe Fitting
Specifications
Brand Name :
YUHONG
Place of Origin :
CHINA
Model Number :
Hastelloy C276 (UNS N10276), Nickel-Chromium-Molybdenum-Tungsten Alloy
Certification :
ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2015
MOQ :
1PC
Price :
Negotiable
Payment Terms :
,T/T,L/C
Supply Ability :
Depends On Quantity
Delivery Time :
7 Days
Packaging Details :
Wooden Cases
Standard :
ASTM B366, ASME B16.9, ASME B31.3
Grade :
Hastelloy C276 (UNS N10276), Nickel-Chromium-Molybdenum-Tungsten Alloy
Type :
Butt Weld (BW) Fitting, Equal Diameter (EQUAL) & Unequal Diameter (UNEQUAL)
Size Range :
1/2” – 24” (DN15 – DN600), Unequal Diameter: 1/2”-12” (DN15-DN300)
Wall Thickness :
SCH 10S – SCH 160S, Custom Thickness Optional
Forming Process :
Butt Weld (BW), Hot Forming, Solution Annealing (1100-1150℃), Pickling
Description
ASTM B366 C276 BW Equal & Unequal TEE High Corrosion Resistance Hastelloy C276 Butt Weld Pipe Fitting
Brief Introduction

ASTM B366 C276 BW Equal & Unequal Fitting is a high-end corrosion-resistant alloy pipe fitting, strictly manufactured in accordance with ASTM B366 standard, using Hastelloy C276 (UNS N10276) nickel-based alloy as raw material and adopting butt weld (BW) forming process. Hastelloy C276 is a nickel-chromium-molybdenum-tungsten alloy with excellent all-round corrosion resistance, which can resist the erosion of strong acids, strong alkalis, organic solvents, chlorine-containing media and other harsh corrosive environments, and has good high-temperature resistance and mechanical stability. As a key pipeline connection component, it is divided into equal diameter (EQUAL) and unequal diameter (UNEQUAL) two types, specially designed for connecting pipelines of the same or different specifications, changing pipeline direction or distributing medium, with compact structure, firm connection, high pressure-bearing capacity and long service life. It is widely used in high-end industrial fields with harsh working conditions, serving as a reliable and durable connection fitting for pipeline systems conveying strong corrosive and high-temperature media.

Chemical Composition Analysis (wt%)
Alloy Grade Ni Cr Mo W Fe C Si P S
ASTM B366 C276 (UNS N10276) Bal. 14.5-16.5 15.0-17.0 4.0-7.0 4.0-7.0 ≤0.01 ≤0.08 ≤0.04 ≤0.03
Typical Mechanical Properties
Mechanical Property Standard Requirement (ASTM B366) Typical Value
Yield Strength (Rp0.2), MPa ≥275 280-350
Tensile Strength (Rm), MPa ≥690 700-800
Elongation (A), % ≥40 42-50
Hardness (HB), Brinell ≤210 180-205
Impact Toughness (KV), J (-20℃) ≥80 85-120
Bending Strength, MPa ≥900 920-1050
Available Tests
Test Type Standard
Chemical Composition Test (PMI) Spectrometer, ASTM B366
Tensile & Impact Test ASTM E8/E8M, ASTM A370
Hardness Test ASTM E10
Hydrostatic/Pneumatic Pressure Test ASTM B366, ASME B16.9
Non-Destructive Testing (NDT) UT, RT, MT, PT (ASTM E165), Eddy Current Test
Corrosion Resistance Test ASTM G48 (Pitting), ASTM A262 (Intergranular), Salt Spray Test (ASTM B117)
Dimensional & Visual Inspection ASTM B366, ASME B16.9, Surface Defect Inspection
Microstructure Inspection ASTM E45, Metallographic Microscope Test
Weld Quality Test Weld Penetration Test, Weld Strength Test
Product Application Scope
Industry Field Typical Applications
Petroleum & Petrochemical Refinery strong corrosive media pipelines, offshore oil platform pipeline systems, chemical reagent conveying equal/unequal diameter fittings
Chemical Industry Strong acid/alkali reaction equipment pipelines, organic solvent conveying fittings, chemical reactor connecting equal/unequal diameter components
Marine & Coastal Engineering Marine corrosion-resistant pipeline systems, desalination plant equal/unequal diameter fittings, coastal harsh environment pipeline connections
Nuclear Power Industry Nuclear power plant auxiliary system pipelines, radioactive medium conveying fittings, high-temperature high-pressure equal/unequal diameter components
Pharmaceutical & Food High-purity chemical raw material conveying pipelines, sterile workshop equal/unequal diameter fittings, corrosion-resistant pharmaceutical equipment connections
Aerospace & High-Tech Aerospace engine pipeline fittings, high-temperature corrosive medium conveying components, precision instrument equal/unequal diameter connections
