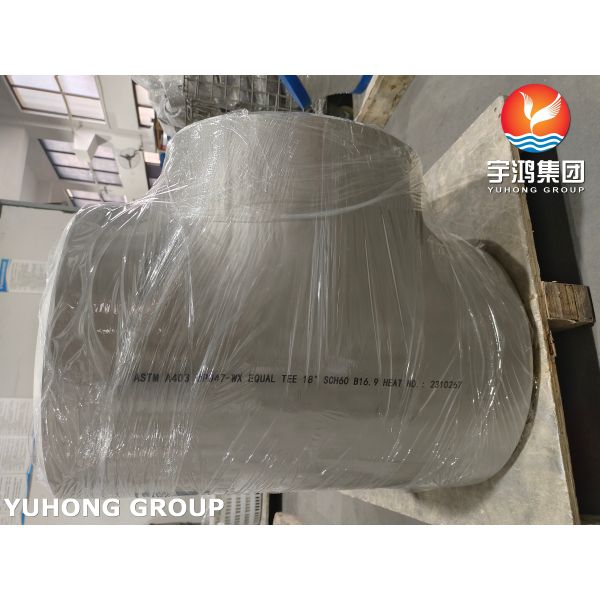

ASTM A403 WP347-WX EQUAL TEE ASME B16.9 Excellent Resistance To Intergranular Corrosion And High Temperature Strength
ASTM A403 WP347-WX EQUAL TEE ASME B16.9 Excellent Resistance To Intergranular Corrosion And High Temperature Strength
ASTM A403 WP347-WX EQUAL TEE ASME B16.9 Excellent Resistance To Intergranular Corrosion And High Temperature Strength
ASTM A403 WP347-WX EQUAL TEE ASME B16.9 Excellent Resistance To Intergranular Corrosion And High Temperature Strength
ASTM A403 WP347-WX EQUAL TEE ASME B16.9 Excellent Resistance To Intergranular Corrosion And High Temperature Strength
ASTM A403 WP347-WX EQUAL TEE ASME B16.9 Excellent Resistance To Intergranular Corrosion And High Temperature Strength
ASTM A403 WP347-WX EQUAL TEE ASME B16.9 Excellent Resistance To Intergranular Corrosion And High Temperature Strength
ASTM A403 WP347-WX EQUAL TEE ASME B16.9 Excellent Resistance To Intergranular Corrosion And High Temperature Strength
Specifications
Brand Name :
YUHONG
Model Number :
ASTM A403 WP347-WX
Certification :
ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008
Place of Origin :
CHINA
MOQ :
1PC
Price :
Negotiable
Payment Terms :
T/T, L/C AT SIGHT
Supply Ability :
According to Client Requirements
Delivery Time :
Depends on quantity
Packaging Details :
According to Client Requirements/ Ply-wooden Case/ Iron Case/ Bundle with plastic Cap
Specifications :
ASTM A403
Material Grade :
WP347-WX
Size :
1/8"NB TO 48"NB IN
Schedule :
SCH 10S - SCH XXS
Technical :
Butt Weld
Packaging :
PLY-WOODEN CASE OR PALLET
Description

ASTM A403 WP347-WX EQUAL TEE ASME B16.9 Excellent Resistance To Intergranular Corrosion And High Temperature Strength

ASTM A403 WP347-WX equal diameter tee is a weld-on pipe fitting made of stabilized austenitic stainless steel. Its core function is to connect three pipes, allowing fluid media to merge or diverge. It is specifically designed for harsh environments requiring excellent resistance to intergranular corrosion and high-temperature strength, and is widely used in chemical, power, and other industrial fields.
Characteristics of Stainless Steel 347:
Excellent Resistance to Intergranular Corrosion:This is WP347's most prominent advantage. The addition of niobium (Nb), a stronger carbide-forming element than chromium (Cr), effectively resists intergranular corrosion, making it particularly suitable for components requiring welding where post-weld heat treatment is not possible.
Excellent High-Temperature Strength:
Compared to unstabilized stainless steels such as 304 or 304L, 347 exhibits higher creep rupture strength at high temperatures. This allows it to operate stably for extended periods in high-temperature environments ranging from 500°C to 800°C, resisting deformation and damage at high temperatures.
ASTM A403 / ASME SA403 WP347 Grade. Chemical Composition
Element Composition (% by weight)
Carbon (C) 0.08 max
Manganese (Mn) 2.00 max
Phosphorus (P) 0.045 max
Sulfur (S) 0.030 max
Silicon (Si) 1.00 max
Nickel (Ni) 9.0 – 13.0
Chromium (Cr) 17.0 – 20.0
Niobium (Nb) (Nb + Ta) ≥ 10 x C*

ASTM A403 / ASME SA403 WP347 Grade. Mechanical Properties
Property Value
Tensile Strength (min.) 515 MPa (75 ksi)
Yield Strength (0.2% offset, min.) 205 MPa (30 ksi)
Elongation (in 2 inches or 50 mm, min.) 30% (for wall thickness ≥ 8 mm)
Hardness (max.) 90 HRB (Rockwell B)

Application

Petrochemical Industry:
  • Catalytic cracking and reforming units in oil refineries;
  • Ammonia synthesis and methanol synthesis units in chemical plants.
Power Industry:
  • High-temperature superheaters and reheaters in power plant boilers;
  • Certain high-temperature components in nuclear power plants.
Other High-Temperature Operating Conditions:
  • Flue gas desulfurization systems, high-temperature heat treatment equipment, industrial heating furnace pipelines.

ASTM A403 WP347-WX EQUAL TEE ASME B16.9 Excellent Resistance To Intergranular Corrosion And High Temperature Strength
