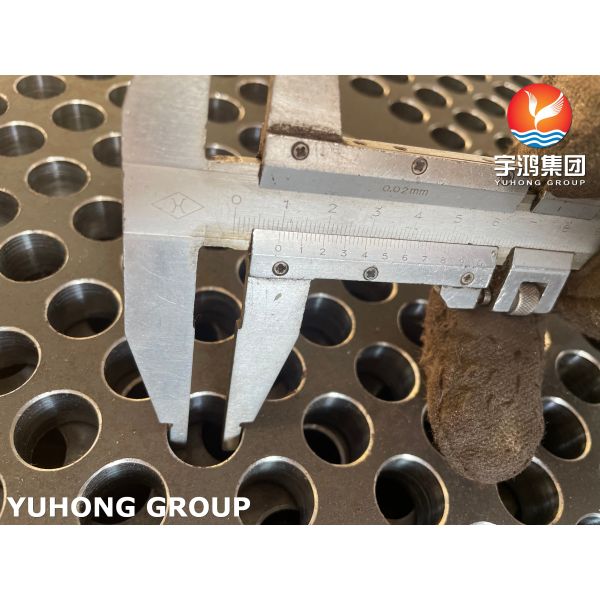

Heat Exchanger Baffle Carbon Steel Plate ASME SA516 GR.70 For Heat Exchanger

Overview

Our Heat Exchanger Baffle Carbon Steel Plate ASME SA516 Gr.70 is designed to deliver reliable mechanical support and optimized shell-side flow distribution in heat exchanger systems. Manufactured from high-strength carbon steel Grade 70, these baffles offer excellent notch toughness, durability, and resistance to low-temperature service conditions—making them suitable for petrochemical plants, refineries, power generation, and general industrial heating systems.

Key Features

• Material Standard: ASME SA516 Grade 70, fine-grained carbon steel

• Application: Heat exchanger baffles, support plates, tube sheets

• Mechanical Strength: High tensile strength for demanding pressure environments

• Thermal Performance: Enhances heat transfer efficiency by guiding fluid flow and reducing vibration

• Surface Options: Unprocessed, shot-blasted, anti-rust coated, or machined according to project needs

• Processing Service: CNC cutting, drilling, milling, custom dimensions, drawing-based fabrication

Advantages

• Provides stable tube support and reduces tube vibration, extending service life

• Suitable for high-pressure and high-temperature heat exchange systems

• Excellent weldability and formability, ideal for custom baffle designs

• Widely used in oil & gas, chemical processing, boiler systems, and heat recovery units

Why Choose Us

• Experience with international EPC companies & turnkey projects

• Fast production and export processing

• Third-party inspection available: SGS / BV / TUV / ABS

• Shipping to Southeast Asia, Middle East, Europe, Africa, South America

Application

Typical applications include

1.Shell-and-tube heat exchangers for oil & gas and petrochemical plants

2.Refinery process units, including crude distillation and catalytic reforming systems

3.Boiler heat exchangers and waste heat recovery units in power generation

4.Condensers and coolers in chemical processing plants

5.Air coolers and fin-fan coolers for upstream and midstream facilities

6.Offshore and onshore processing platforms where high strength and durability are essential

7.Pressure vessel heat exchanger components, including baffles, tube sheets, and support plates

8.District heating and HVAC systems requiring long-term resistance to vibration and impact

9.Fertilizer, LNG, and ammonia plants with continuous high-temperature operation

Request a Quote

Send us your baffle plate drawing, material specification, and required quantity — we will reply with details including delivery time and CIF price to your nearest port.
