Specifications
Brand Name :
YUHONG
Model Number :
ASME SA336 F5N
Certification :
ASME II, ASME III, ABS, LR, DNV, GL , BV, CCS, KR, NK, TUV, PED, GOST, ISO , TS
Place of Origin :
CHINA
MOQ :
1PC
Payment Terms :
L/C,T/T
Delivery Time :
7 DAYS
Packaging Details :
Ply wooden case / Pallet
Standard :
ASME SA336 F5N
Material :
F1 F5 F6 F9 F11 F21
Shape :
straight, helical, and rod baffle configurations
Size :
can custom, as buyer's drawing requirements
Production process :
Cutting, rough machining, finish machining
Application :
tube type heat exchange,boiler,pressure vessel,steam turbine,locomotive,power station,big scale central air conditioning industry
Description

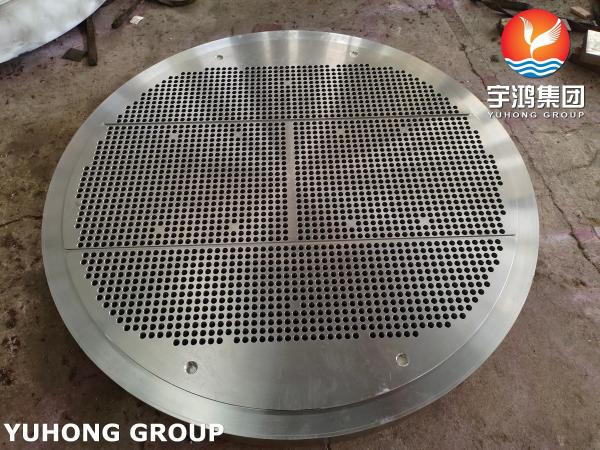

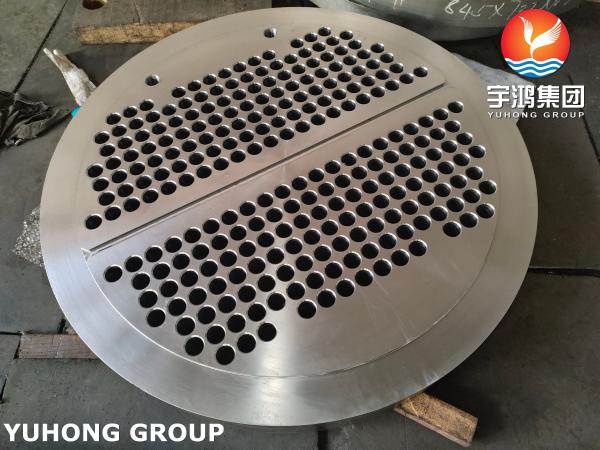

ASME SA336 F5N High Temperature And Pressure Alloy Steel Forging For Heat Exchanger Baffle

ASME SA336 F5N is a chromium-molybdenum alloy steel forging for high temperature and high pressure. It follows the ASME SA-336/SA-336M standard. This is a standard specifically for alloy steel and stainless steel forgings for pressure vessels.

F5N material grade. The N suffix usually indicates that the material has undergone a specific normalizing, heat treatment.

Pressure vessel tube sheets made of SME SA-336 F5N material are key components of high temperature and high pressure hydrogen equipment

Mechanical properties

Yield
Rp0.2 (MPa)		 Tensile
Rm (MPa)		 Impact
KV/Ku (J)		 Elongation
A (%)		 Reduction in cross section on fracture
Z (%)		 As-Heat-Treated Condition Brinell hardness (HBW)
831 (≥) 636 (≥) 41 44 24 Solution and Aging, Annealing, Ausaging, Q+T,etc 342

Physical properties

Temperature
(°C)		 Modulus of elasticity
(GPa)		 Mean coefficient of thermal expansion 10-6/(°C) between 20(°C) and Thermal conductivity
(W/m·°C)		 Specific thermal capacity
(J/kg·°C)		 Specific electrical resistivity
(Ω mm²/m)		 Density
(kg/dm³)		 Poisson's coefficient, ν
44 - - 0.33 -
633 595 - 23.3 142 -
716 - 22 42.2 413 223

Application:

Petroleum refining: Hydroprocessing reactors

Large forgings such as barrels, heads, flanges, tube sheets, support rings, etc. of hydrocracking reactors.

Its excellent resistance to hydrogen corrosion and temper embrittlement is crucial here.

Coal chemical industry: Key high temperature and high pressure components of coal gasifiers.

Others: High-pressure steam systems, synthetic ammonia, high temperature and high pressure heat exchangers, etc., which require high strength and toughness and high temperature corrosion resistance.
