Specifications
Brand Name :
YUHONG
Model Number :
​​ASTM B564 UNS N08811
Certification :
ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008
Place of Origin :
CHINA
MOQ :
500KGS
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
1500 tons per month
Delivery Time :
15-30days
Packaging Details :
Plywooden Case /Iron Case
​​Standard​ :
ASTM B564/ASME SB564
Material Grade​ :
UNS N08811 (Alloy 800H)
Product Type​ :
Full Coupling Socket Weld
Application​ :
Petrochemical & Power Plant Piping
End Connection​ :
Socket Weld (SW)
Surface Finish​ :
Solution Annealed & Pickled
Description

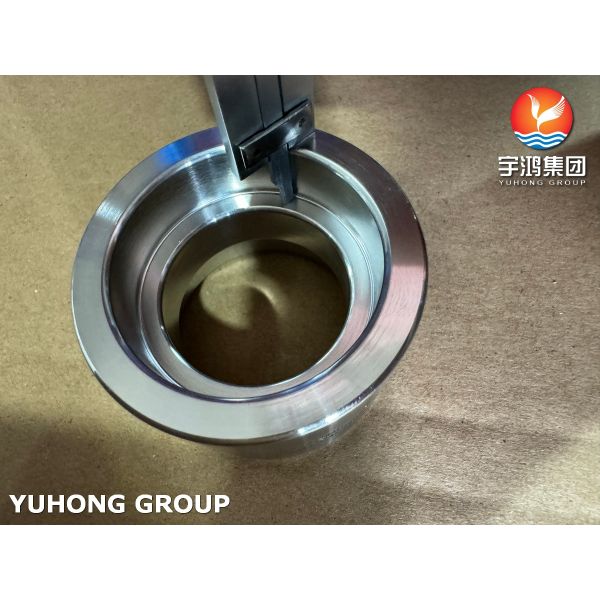

​​ASTM B564 UNS N08811 Nickel Alloy Full Coupling Socket Weld for Petrochemical & Power Plants​

​​YUHONG GROUP​​ is a specialized manufacturer of ​​high-performance nickel alloy pipe fittings​​ with over 35 years of expertise in serving the global energy and chemical industries. Our ​​ASTM B564 UNS N08811 Full Coupling Socket Weld​​ components are engineered for critical applications in petrochemical plants and power generation facilities, delivering exceptional performance in extreme temperature and corrosive environments.

​​Chemical Composition of UNS N08811 (Alloy 800H)​​

​​Element​​ ​​Composition (%)​​ ​​Notes​​
​​Nickel (Ni)​​ 38.0 - 46.0 Principal element
​​Chromium (Cr)​​ 19.0 - 23.0 Oxidation resistance
​​Iron (Fe)​​ Balance Base metal
​​Carbon (C)​​ 0.05 - 0.10 Controlled for high-temperature strength
​​Manganese (Mn)​​ 1.50 max
​​Sulfur (S)​​ 0.015 max
​​Silicon (Si)​​ 1.00 max
​​Copper (Cu)​​ 0.75 max
​​Aluminum (Al)​​ 0.15 - 0.60 Strength enhancement
​​Titanium (Ti)​​ 0.15 - 0.60 Stabilization

Mechanical Properties of UNS N08811 (Alloy 800H)​

​​Property​​ ​​Requirement​​ ​​Notes​​
​​Material​​ UNS N08811 High-carbon version of Alloy 800
​​Condition​​ Annealed
​​Maximum Section Thickness​​ No limit Applicable to all thicknesses
​​Tensile Strength, min​​ 65 ksi (448 MPa)
​​Yield Strength (0.2% Offset), min​​ 25 ksi (172 MPa)
​​Elongation in 2 in. or 50 mm, min​​ 30%

​​Heat Treatment Requirements for UNS N08811 (Alloy 800H)

Parameter Requirement Purpose & Notes
​​Process​​ Solution Anneal Dissolves carbides for a uniform microstructure
​​Temperature​​ 2000°F (1093°C) minimum Ensures complete carbide dissolution
​​Optional Process​​ Stabilization Anneal Enhances resistance to sensitization
​​Stabilization Temperature​​ 1800°F (982°C) minimum Stabilizes carbide precipitation
​​Cooling Method​​ Not specified (Typically rapid cooling) Maintains a solid solution state

​​ASTM B564 UNS N08811 Nickel Alloy Full Coupling Socket Weld - Application Advantages​​

  • ​​1. Superior High-Temperature Performance​​
  • ​​2. Exceptional Corrosion Resistance in Harsh Environments​​
  • ​​3. Reliable Socket Weld Connection​​
  • ​​4. Long Service Life and Cost Efficiency​​
  • ​​5. Material Versatility and Compliance​​
  • ​​6. Optimal for Thermal Cycling Applications​​

​​Applications:​​

  • Petrochemical processing plants
  • Power generation systems
  • Heat exchanger connections
  • High-temperature furnace piping
  • Chemical reactor systems

​​ASTM B564 UNS N08811 Nickel Alloy Full Coupling Socket Weld for Petrochemical & Power Plants​
